High Efficiency JS Sizing Machines Sizing Trough

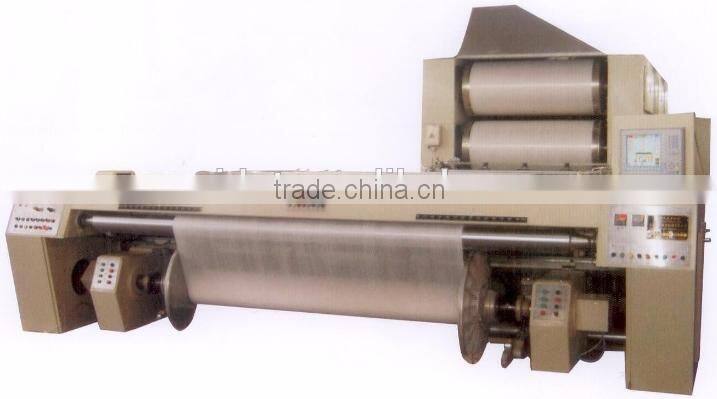

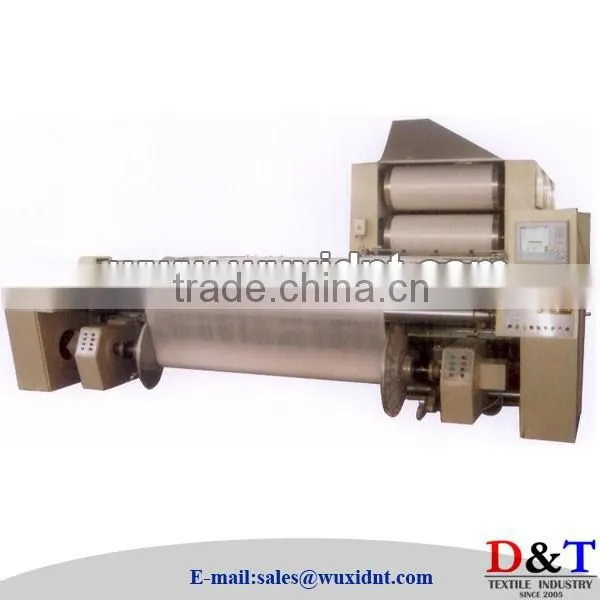

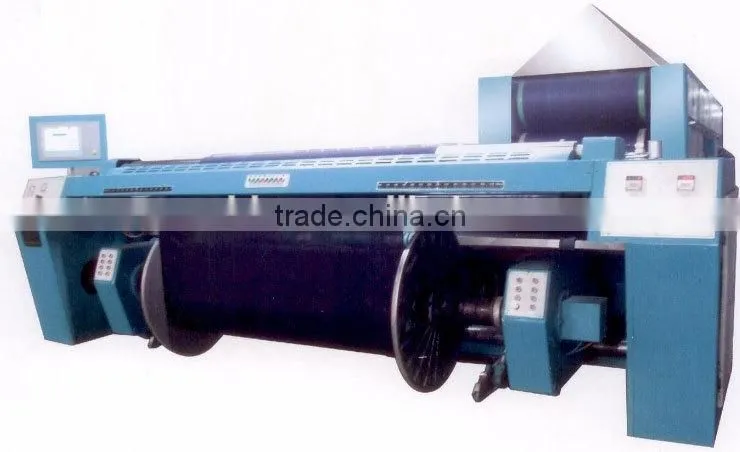

Headstock
·Big winding installed amplitude modulation,axis frequency conversion motor winding,servo control.
·The shaft for winding,applicable to the requirements of AB double shaft width shuttle-less looms.
·The longitudinal shaft tension is stepless and Max. Winding tension is 60KN.It is applicable to various kinds
of loom and winding.The diameter of winding can be displayed on computer.
·The processing parameter is controlled by computer and the operation is simple.
·The upper falling shaft,pressing loom beam,measuring long roller,tension roll,expansion reed and other actions are applied pneumatic control.

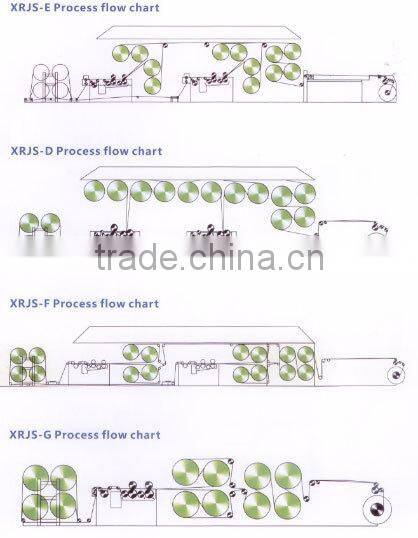

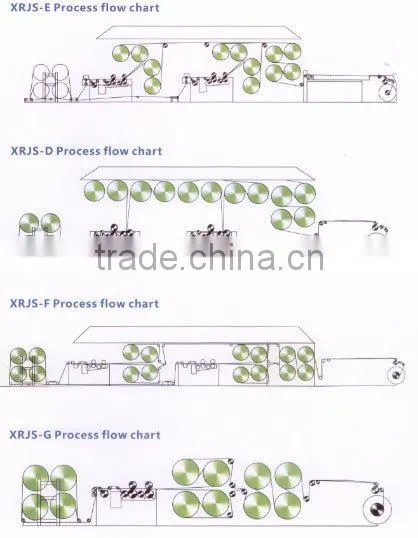

JS Process flow chart
Series JS Sizing Machines
Series JS is the individual unit driven system unit with the most advanced computer and servo technology.It can meet
the sizing requirements of cotton,polyester and chemical fiber of various kinds of shtuttle loom and shuttleless loom in home
and abroad.It has stable and reliable performance and it is an ideal equipment with fine spinning,high density for sizing in China.
Main technical parameters
Item |
Unit2 |
Unit7 |
Unit9 |
|
Nomimal width |
250 |
300 |
360 |
|
Speed |
1-80 |
1-100 |
||
Longitudianl axis winding diamenter |
Φ800 |
Φ1000 |
Φ1200 |
|
Max. axle tube length of longitudinal axis |
2650 |
3250 |
3930 |
|
Drying cylinder diameter |
Φ800 |
|||
Drying cylinder quantity |
12-14 |
|||
Working width of drying cylinder |
1800-2000 |
|||
sizing trough volume |
Main sizing trough 280 |
Auxiliary sizing trough 210 |
||
Pressing force |
0-40KN |
|||
Working width of sizing trough |
Φ1000 1800-2000 |
|||
Dye beams quantity |
16 |
20 |
20 |
|
Dye beam Max. quantity |
Φ800-Φ1000 |
|||
Total power |
50KN |
65KN |
||
Covering area |
26000x4450 |
28200x5050 |
29260x5650 |
|

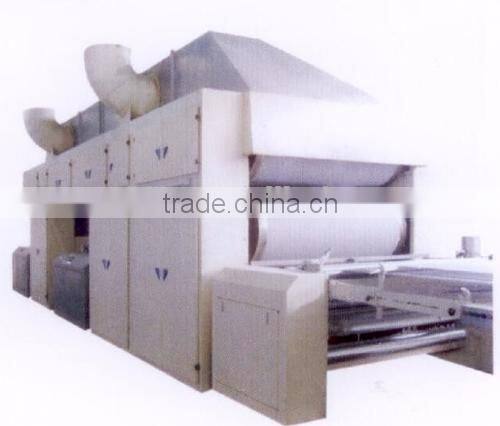

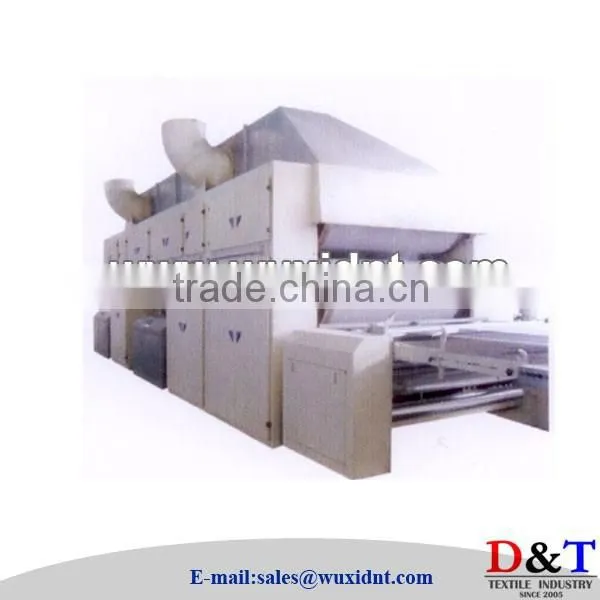

Oasthouse
1.There are 12 drying rooms, φ800 stainless steel drying room.There are two groups of pre-drying,one integrated drying room.The surface of pre-drying room is pained with Tefoln coating anti-sticking layer.
2.The wet yarn of each vat comes into the drying room on two layers.Also they can come into the room for pre-drying on one layer.
3.There are five drying cylinder temperature control, so as to meet the yarn drying requirements.
4.The servo or frequency motor is independently driven,tensioned and the elongation rate can be automatically controlled.
5.Slope roof stainless steel cover is adopted and axial fan is used for dehumidifying.

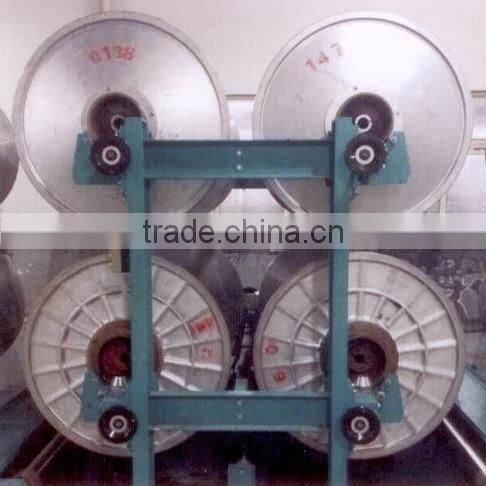

Warp Beam Rack
1.The user can select different types of creel.
2.Model H double layer shaft,four creels consists of one group.
3.Adopt penumatic control unwinding tension to meet unwinding of constant tension.

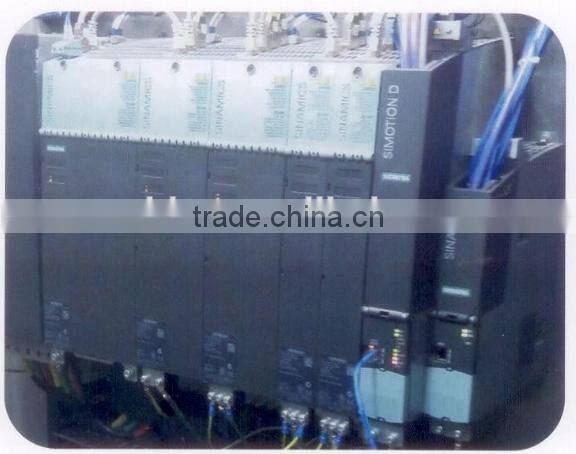

Electrical Control System
1.The machine adopts servo moto or frequency motor sub-unit driven.
2.By programmable controller together with computer and motor,the high precision control can be realized.
3.Adopt computer setting of yarn tension,elongation rate and pressing force,ect.
4.WK is automatically controlled and can be displayed.
5.Vet temperature and drying room temperature is automatically controlled.

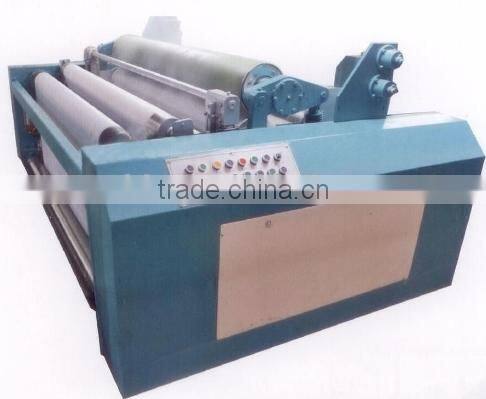

Sizing Trough
1.The sizing trough wall is steel plate and the shell is stainless steel.
2.Adopt Double-dip double-Pressure or Double-dip back pressure.
3.Adopt system pressure boosting and Max. pressre is 40.
4.Main sizing trough and auxiliary vat is integrated.
5.The slurry is counter current circulated,the viscosity and temprerature are stable.
