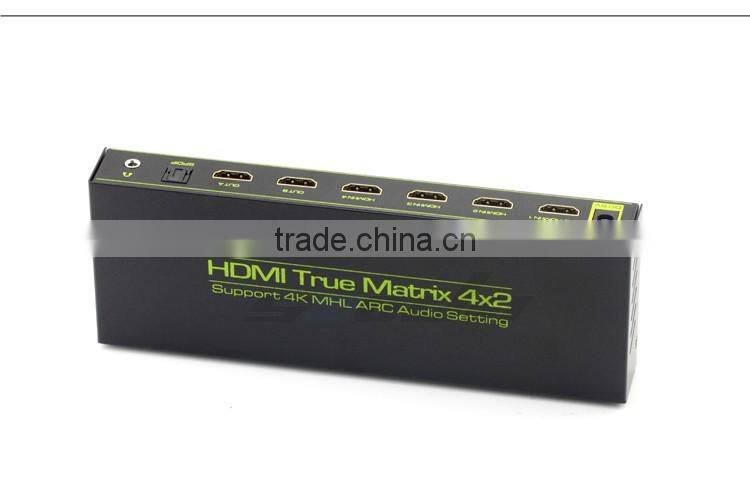

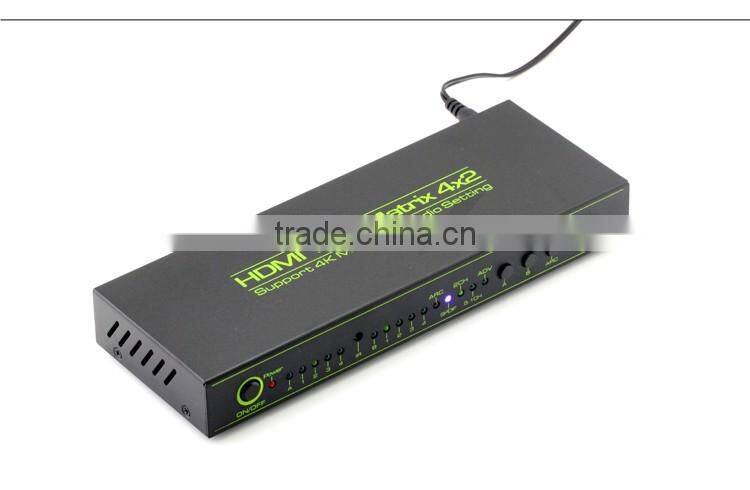

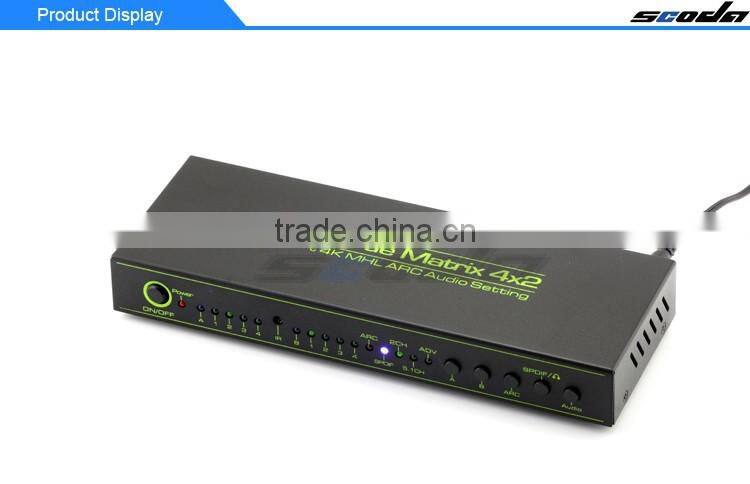

Full HD 1080P HDMI V1.4 True Matrix 4*2 with Remote Control

HDMI V1.4 True Matrix 4*2

Introduction:

The HDMI 4X2 Matrix can connect four HD Source with two HD Display,which can also do extra audio output by the SPDIF port or Headphone port.It can switch or distribute the four HD Source to the two HD Display easily. The matrix also can support ARC function,which can upstream the TV audio to the amplifier.

Our devices offer solutions for noise,space and security concerns, data center control,information distribution,conference room presentation,school and corporate training environments.

Feature:

1.One HDMI Input supportHDMI double mode input,the other three HDMI input support only HDMI single mode input.
2.The output A support extra audio output by SPDIF port and 3.5mm Headphone port.
3.HDMI to achieve the synchronization of audio signal separation.There are ADV/2.0CH/5.1CH three kinds of audio mode options
4.Support Full-HD 1080P@60hz, Full 3D,3840x2160@30hz.
5.Support 4k*2k resolution
6.Support deep color 30bit,36bit,48bit

7.Support Blue-Ray 24/50/60fs/HD-DVD/ xv YCC
8.Digital audio format, as DTS-HD / Dolby-true HD/LPCM7.1 / DTS / Dolby-AC3 /DSD
9.Support signal retiming
10.Support input up to 15 meters AWG24 HDMI standard cable length,output up to 25 meters AWG24 cable length

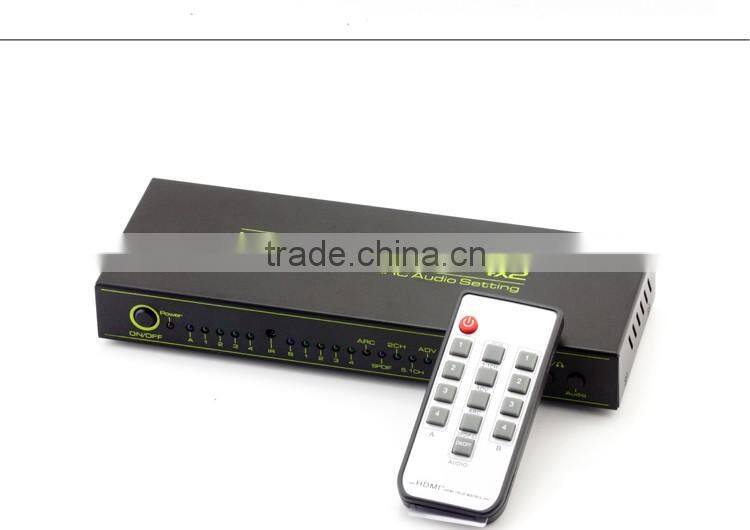

11.Inputs can be switched with the IR remote control, also can be controlled by two switch buttons
12.HDMI working in dual mode, can reduce the number of ports

13.The SPDIF audio output format can be chose by pressing the switch key or the remote

14.It can come back to the default the input 1 status when restarted or reset

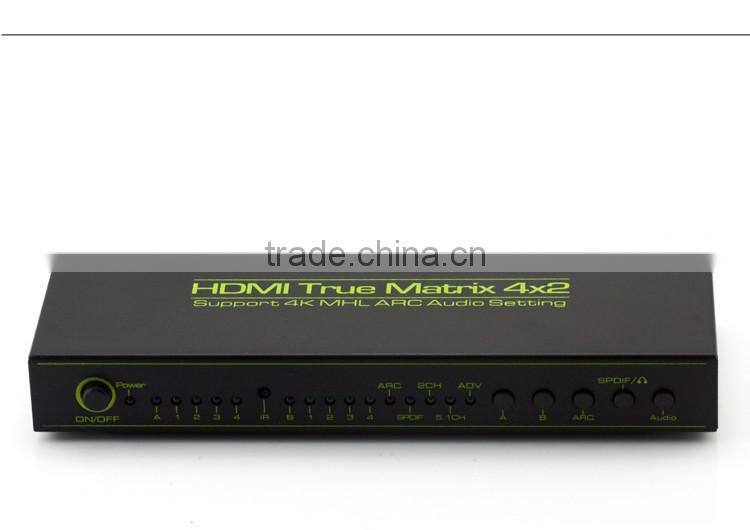

15.Led status Light allow the user to know the working status easily

16.No loss of quality

17.Installs in minutes

18.Need DC5V/2A power supply

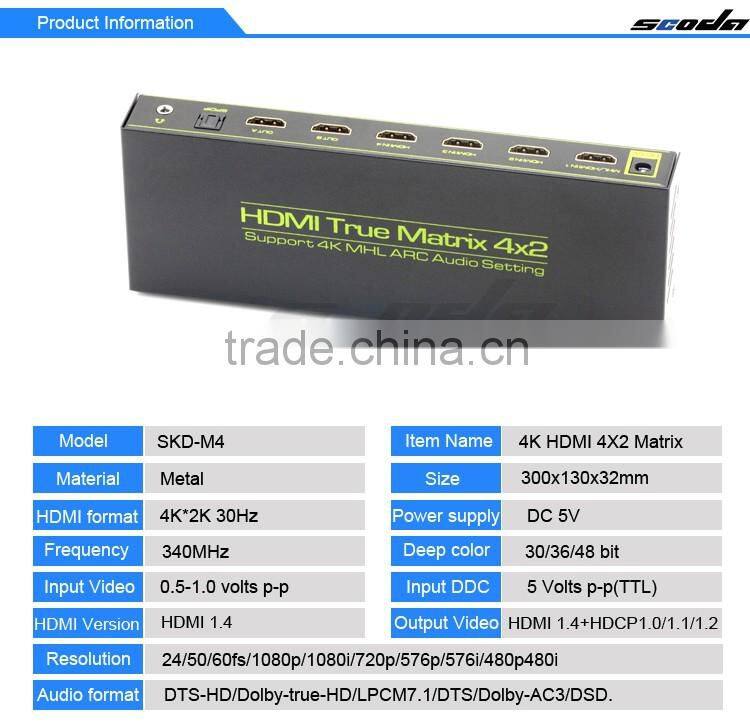

Specification

Packing

product size 300X130X32mm Product N.W 0.5kg
Package Size 215*150*55mm N.W： 0.6kg
Carton Size 450*295*470mm G.W：
Accessories Power Adaptor, Remote, User Manual, CD Color box

Delivery

1. Sample within 1-3 days

2. Wholesales Orders : 5-10 days according various quantities

3. OEM 10-20 days after receiving your sample confirmation and payment.

Shipping

1. UPS / DHL / FEDEX /EMS / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.

Shenzhen Scoda Industrial Co.,Ltd

We are a comprehensive enterprise incorporating research and development, manufacture, and sale of digital products, Also have famous brand-STU enjoy great popularity in the industry. such as ;HDMI &A/V converter;Splitter etc and TV receiver accessories and more. Our experienced R&D team continues to create numerous unique, stylish and high-tech products to OEM/ODM customers worldwide.
