Advantage

1.spring single latch ,no motor
2.Fingerprint capacity 150
3.passwords capacity:78
4.Factory:building with 5Floors

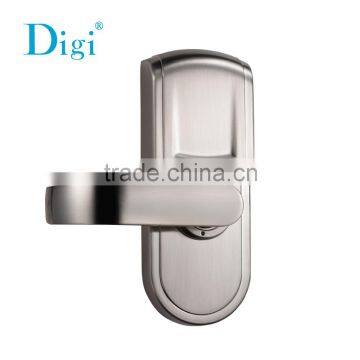

(#6600-98 ) fingerprint digital door lock

China Manufacture of  Fingerprint locks & keypad locks in Guangzhou city

Quick Overview

This kind of lock is great easy to fit, simple to use fingerprint lock. Perfect for internal access control in offices or homes!

No external wiring, or technical expert, it really is as simple as A..B..C

No more keys to loose or pin codes to forget...your fingerprint is unique so use it!

Box Contents

Fingerprint Lock

Single Mortise Latch

Fitting Template

User Manual

Quick Setup Guide

Override Keys

Installation Screws

Functions and Features

•       Easy installation

•       Single spring latch mortise

•       No external wiring required

•       Forged steel housing and pure stainless steel mechanical rational structure

•       Fully Automatic fingerprint update technology

•       Sliding cover to protect the fingerprint reader and lock from dust and moisture.

•       Raising the sliding cover automatically activates the unit

•       Fingerprint user capacity: 150,   PIN code: 78

•       Can be fingerprint, PIN and key operated

•       Fingerprints and PIN codes can be added or deleted individually

•       The door will lock automatically on closing

•       Panic exit function. The door can be opened from the inside at all times by using the door handle. It is never locked from the inside

•       Passage mode (the door can be left unlocked for free access from outside)

•       Powered by 4x AA 1.5v alkaline batteries which are easily replaced (always use good quality batteries)

•       Energy saving design for approx 15000 openings before the batteries need replacing

•       Low battery alert

•       If batteries become too low the lock can be temporarily activated with a standard external 9v battery

•       Non-volatile memory ensures that there is no data loss whilst the batteries are being replaced

•       High security emergency override key

•       ADA compliant handle (Means the handle lever is curved, so it does not catch clothing)

Techincal Specification

•       Fits door thickness approx :  35mm(1 ½ inches) to 60mm(2 3/8 inches)

•       External dimensions of lock approx : Please see the Lock Dimesions Diagram above

•       Adjustable latches approx : 60mm(2 3/8 inches)  and 70mm( 2 ¾ inches)  backsets

•       Technical capture of the fingerprint : Optical

•       Scanning window size : 18.2mm(L) x 16mm (W)

•       Scanning time : 1 second

•       Recognition time : 1 second

•       Resolution : 560 DPI

•       Angle of finger application : 60 degrees

•       False acceptance rate : 0.0001%

•       False rejection rate : 1%

•       PIN code setting : Random

•       PIN code length : 8digits

•       Working temperature for fingerprint:  -20c to 60c

•       Operating temperature for keypad : -30c to 70c

•       Working humidity  : 10% to 97%

•       Weight : 2kg

* Batteries not included
