SPDIF/Coaxial Cable Digital Audio Decoder 5.1 Dts Decoder/2.1CH Digital to Analog Audio Converter Decoder

Digital Audio Decoder

Introduction

Digital Audio Decoder: Used 24-bit audio DSP, 96 KHz digital receivers, and 192 KHz/24bit ADC and DAC. Support Dolby Digital AC-3 Dolby Pro Logic, DTS, PCM and other digital audio format source decode, a variety of sound field and the replay results of two listening modes, 5.1 analog audio output, will auto work with different amplifier and speakers to get different sound effects, easy to connect many entertainment devices which with optical and coaxial digital signal and analog output signals (such as: set-top boxes, HD players, Blu-ray DVD, PS2, PS3, XBOX360)

Features

1. Convert DTS/AC3 source digital audio to analog 5.1 audio or stereo audio output

2. The analog stereo (L / R) signals after digital processing chip handle convert it to analog 5.1 channel output

3. Multi-channel audio input (SPDIF , Coaxial, Stereo)2 x SPDIF input, 1 x Coaxial Input, 1 x Stereo

4. Analog 5.1-channel or Stereo output

5. USB 5V Output

6. USB PLAY (support audio file type : mp3、WMA )

7. Dimension: 105*75*25 mm

Technical Data

1. Signal to Noise: 120db

2. Degree of Separation: 85db

3. Frequency Response: (20Hz ~ 20 KHz) +/- 0.5db

4. Max Output Volt: 2.2V

5. Power Supply DC/9V 1A, (outlay 110V~240V broadband convert DC9V Power)

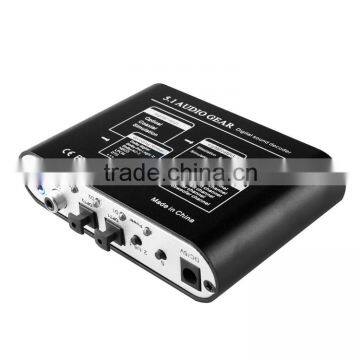

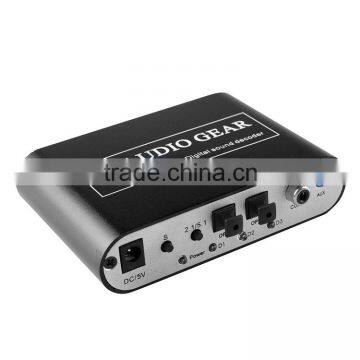

DC/9V------------- Power input

S ------------------- SOURCE short, switch

Input channels (SPDIF, COX, AUX,

While D1/D2 /D3 corresponding LED lights)

OPT1 --------------- SPDIF1 input interface

OPT2 --------------- SPDIF2 input interface

COX ----------------- Coaxial input

AUX ------------------ Analog stereo input

Optical fiber cable or coaxial connection PS3/XBOX360 / HD players

Power --------------- Power indicator, power post-Always

D1 -------------------- When you press the S key, switch to the OPT1, D1 lights

D2 -------------------- When you press the S key, switch to the OPT2, D2 lights

D3 -------------------- When you press the S key, Switch to the COX, D3 lights

(When switch to only POWER light is on, the input is the AUX(stereo) channel)

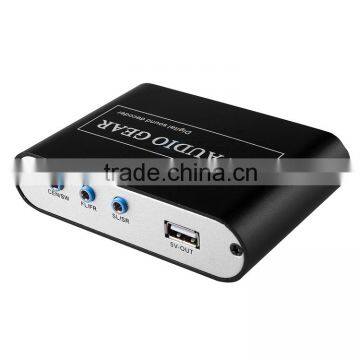

CEN ----------------- Connect Amplifier CEN interface

SW ------------------- Connect Amplifier SW interface

FL/FR--------------Connect Amplifier FL/FR interface

SL/SR-------------- Connect Amplifier SL/SR interface

Failure Check：

Packing

product size 108(D)x86(W)x27(H) Product N.W 0.145KG

Package Size 21.5*15*5.5cm N.W： 0.06KG

Carton Size 45*29.5*47cm G.W： 11KG (50pcs/carton）

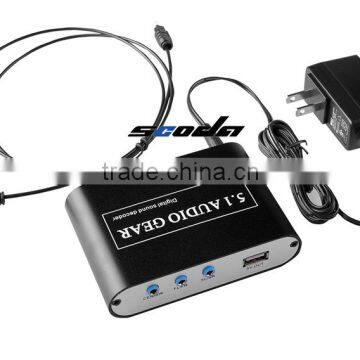

Accessories Power adapter, user manual, toslink cable Color box

Delivery

Sample: 3~5 days



Bulk order: 3days + (according to your quantity )
