G801, MAC Address Cloning One Fxs Port Wireless Router

Beijing Flyingvoice Technology Co., Ltd.
G801, MAC Address Cloning One Fxs Port Wireless Router thumbnail-1
G801, MAC Address Cloning One Fxs Port Wireless Router thumbnail-2
G801, MAC Address Cloning One Fxs Port Wireless Router photo-1
G801, MAC Address Cloning One Fxs Port Wireless Router photo-2
US$ 1 - 45 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
FLYINGVOICE, Flyingvoice
Model Number:
G801
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name FLYINGVOICE, Flyingvoice
Model Number G801
Type VoIP Gateway

G801, MAC address cloning one fxs port wireless router

1. Key features for G801



G801, MAC address cloning one fxs port router is an ideal 802.11n 300Mbps wirelss voip router.  It is the ideal choice for voip comunication and integrates internet sharing for daily application.

G801 not only provides the high quality of voice communications and wired Internet sharing capabilities but also offers Access Point (AP) function for daily wireless communication. With advanced router, G801 is able to make calls via SIP proxy voice communications, plus the IP sharing, and the QoS mechanism.


The G801 is based on SIP V2.0 and 802.11n standard and compatibility with most service providers. It features 1FXS telephone ports, 5 10M/100Mbps Ethernet ports which brings great convenience when deploying VoIP network.

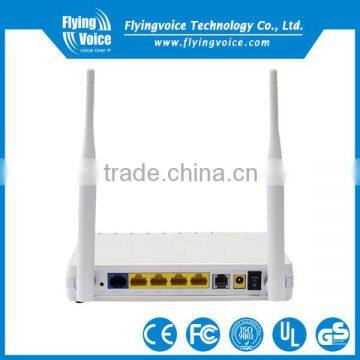

2. Pictures









More details , welcome to visit our website





3. G801 Specifications



Hardware Features
Interface4 10/100Mbps LAN ports
1 10/100Mbps WAN port
2 FXS port
2 5dB Antenna for IEEE802.11n 2T2R Wireless
1 Power set
Power SupplyAC Input : 100-240v, 50-60Hz;  DC Output: 5V, 2A
Environmental Operation Temperature: 5~45 Degree C
Storage Temperature: -25~85 Degree C
Relatively Humidity: 10%~90% No Condensing
Shock: Up to 75cm Drop upon package
Dimension(L)180×(W)110×(H)30mm
Unit Weight338g(without package)
Software Features
Audio Codec FeaturesG.711(A-law, u-Law)with PAMS above 4.3
G.729A/AB with PAMS above 4.0
Adaptive Jitter Buffer Management
Voice Activity Detection
Comfort Noise Generation
Echo Cancellation
T.30 FAX with G.711
Real time FAX over IP via T.38
ProtocolsSIP V2 (RFC 3261,3262,3263,3264)
Backward Compatible with RFC2543
Session Timer (RFC4028)
SDP (RFC2327)
RTP/RTCP (RFC1889 and RFC1890)
NAPTR for SIP URI Lookup (RFC2915)
STUN (RFC 3489)
ARP/RARP (RFC 826/903)
SNTP (RFC 2030)
DHCP/PPPoE
PPTP/L2TP VPN
HTTP Server for Web Management
TFTP/HTTP for Auto Provisioning
Message Waiting Indicator(RFC3842)
DHCP Option Codes for SIP(RFC3361)
DNS/DNS SRV (RFC1706 and RFC 2782)
IEEE802.1Q VLAN/802.1p and DSCP
ManagementFirmware Upgradeable
Web Management Interface
IVR-driven Management Interface
Local and Remote Syslog (RFC3164)
Auto Provisioning
SNTP Time Synchronization
Multiple User Level
SNMPv2
TR069
Telnet
System Log: local log and remote log
Wireless802.11b/g/n support
4 SSID
Static WEP(64/128bit)
Dynamic WEP(64/128bit)
AES(CCMP/TKIP)
MAC Certification
WEP certification
WPA-PAK/WPA-PSK(2.0)
WPA/WPA2
AS Isolation and MBSSID AP Isolation
WMM
WDS
WPS
Station list
Radius certification and billing
MAC Filter(different from MAC Filter)
ApplicationsSupport NAT mode and Bridge mode
Support DDNS
MAC address cloning
SIP proxy redundancy
NAT Traversal by STUN
Built-in Wired speed NAT Router
DHCP Server and Client
IP conflict detection
VLAN
Flow Control
VPN Pass through (PPTP,L2TP and IPSec)
Port forwarding and DMZ host
Rate Limit per port
Broadcast Storm Control
Classification by physical port, IP port, 802.1p,DSCP and TCP/UDP port
Marking by 802.1p and DSCP
MAC filter per port
Packer filter for port, IP address, protocol and physical port
Firewall defend attack and UDP flooding
Call Features3-way Conference
Music on hold
DTMF Relay: In-band, Out-band and SIP INFO
Call Hold
Call Forwarding
Call Mute
Call Transfer
Call Waiting
Speed Dial
Caller ID and CWCID
QoS Layer 3
Real time fax over IP via T.38
T.30 FAX with G.711
Dial Plan
Black List
Call Log
Dial Plan
DTMF Mode: Inband, Outband and SIP Info







G801, MAC address cloning one fxs port wireless routerG801, MAC address cloning one fxs port wireless routerG801, MAC address cloning one fxs port wireless router





4. Interoperability Test (IOT) and compatible platform:

5. Payment and Shipping:







G801, MAC address cloning one fxs port wireless router
