G502N SIP analogue telephone adapter with multi-function compatibility and 2 FXS ports
- 20000 Unit / Units per Month
- Shenzhen China
- T/T Credit Card
- Promotion ! module Q24plus modem, 8 Port USB/RS232 SMS gsm Modem pool
- SKYLINE! With Q2403 module, 8 Port USB/RS232 SMS Modem/ massive sms sender / mini gsm modem
- low cost 16 port RJ45/USB/RS232 gsm modem/ bulk sms sender(with Q2303/Q2403/Q2406/Q24plus modules)
- Promotion! With Wavecome Q2303module, 8 Port USB GSM Modem/ bulk sms sender,AT Command
- Promotion! With Wavecome Q2303module, 8 Port USB GSM SMS Modem/ bulk sms sender
- Promotion! With 3G Q24plus module, 8 Port GSM SMS Modem/ bulk sms sender
Product Details
Place of Origin: | Guangdong, China | Brand Name: | FLYINGVOICE | Model Number: | G502N |
Type: | VoIP Adapter |
Product Description
G502N SIP analogue telephone adapter with multi-function compatibility and 2 FXS ports
1 . A Brife Introduction of G502N
G502N is Multi function compatibility and stability adapter.
The G502N is the newest 2 FXS ATA (Analogue Telephone Adapter) products in Flyingvoice, which enables customers to register to different SIP Proxy server, IP PBX and establish up to 2 concurrent VoIP calls for more flexibility in the voice communication.
Their compact size, excellent voice quality, packed feature functionality and best-in-class price-performance point enable consumers to maximize the power of IP voice and data connectivity.
The G502N is based on SIP V2 standard and compatibility with most service providers. It features 2 FXS telephone ports, TR069 CPE management & monitoring protocols and a base stand for vertical positioning.
. Up to 2 concurrent VoIP calls
. Real time FAX over IP via T.38 and T.30 FAX with G.711
. TR069 CPE management & monitoring protocols
. Field proven compatibility and stability
. Very Highly affordable and effective 2 FXS ports VoIP CPE
2. Pictures of G502N

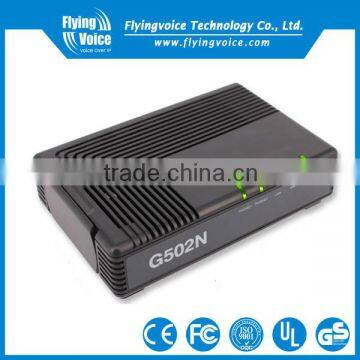

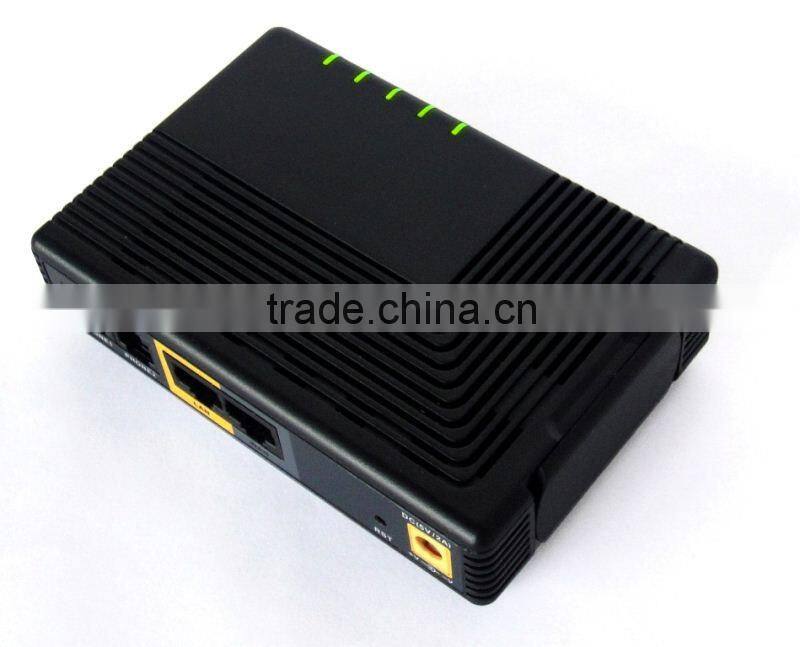

Side View:

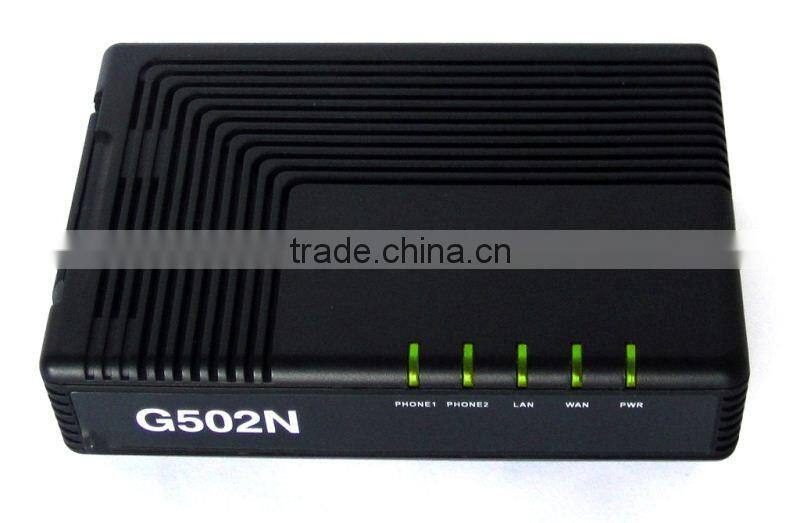

Front View:

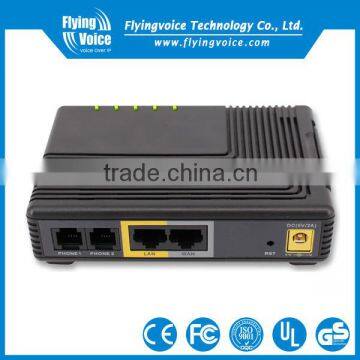

Rear View:
3. Specifications of G502N
Hardware Features | |
Interface | 1 RJ45 10/100Mbps LAN port |
Power Supply | AC Input : 100-240v, 50-60Hz; DC Output: 5V, 2A |
SLIC Feature | Ring voltage: 40-90 Vpk configurable Ring frequency: 20-25 Hz Ring waveform: Sine wave Maximum ringer load: 5 ringer equivalence numbers (RENs) On-hook voltage (tip and ring): -46 to -56V Off-hook current: 18-26 mA Terminating impedance: 600/900 ohm resistive or 270 ohm + 750 ohm, 150 nF complex impedance Frequency response: 300-3400 Hz Return loss (600 ohm, 300-3400 Hz): up to 20 dB Insertion loss (1 Vrms at 1 kHz): 3-4 dB Total harmonic distortion (THD) (350 mV peak at 300 Hz): up to 3% Idle channel noise: 72 dB (typical) Longitudinal balance: 55 dB (typical) Off-hook threshold (line seizure): Rdc < 1000 ohm On-hook threshold (line release): Rdc >10000 ohm Rdc DC supervisory range: Rdc > 450 ohm |
Environmental | Operation Temperature: 0~45 Degree C Storage Temperature: -25~85 Degree C Relatively Humidity: 10%~90% No Condensing Shock: Up to 75cm Drop upon package |
Dimension | (L)120×(W)80×(H)28mm |
Unit Weight | 140g(without package) |
Software Features | |
Audio Codec Features | G.711(A-law, u-Law)with PAMS above 4.3 G.729A/AB with PAMS above 4.0 Adaptive Jitter Buffer Management Voice Activity Detection Comfort Noise Generation Echo Cancellation T.30 FAX with G.711 Real time FAX over IP via T.38 |
Protocols | SIP V2 (RFC 3261,3262,3263,3264) Backward Compatible with RFC2543 Session Timer (RFC4028) SDP (RFC2327) RTP/RTCP (RFC1889 and RFC1890) NAPTR for SIP URI Lookup (RFC2915) STUN (RFC 3489) ARP/RARP (RFC 826/903) SNTP (RFC 2030) DHCP/PPPoE PPTP/L2TP VPN HTTP Server for Web Management TFTP/HTTP/HTTPS for Auto Provisioning DNS/DNS SRV (RFC1706 and RFC 2782) |
Management | Firmware Upgradeable Web Management Interface IVR-driven Management Interface Local and Remote Syslog (RFC3164) Auto Provisioning SNTP Time Synchronization Multiple User Level SNMPv2 TR069 |
Security | Password-protected system reset to factory default Password-protected administrator and user access authority Provisioning, configuration, and authentication HTTP digest: Encrypted authentication using MD5 (RFC 1321) |
Applications | NAT/NAPT Router function MAC Address Cloning DHCP Server PPTP/L2TP VPN PPPoE SIP proxy redundancy - dynamic via DNS SRV, A records NAT Traversal by STUN DMZ QoS with Layer 3 DHCP Client and DHCP Server IP conflict detection |
Call Features | 3-way Conference Music on hold DTMF Relay: In-band, Out-band and SIP INFO Call Hold Call Forwarding Call Mute Call Transfer Call Waiting Speed Dial Caller ID and CWCID Hotline Real time fax over IP via T.38 T.30 FAX with G.711 Dial Plan Black List Call Log |
More details ,please visit our website
4. Tested and Compatible Platform
5. Payment and Shipping:
6. Warranty And After Sales Service of G502N
7 . Cooperators
