BFB24L-114B low noise high pressure hose bathroom hose automatic control hose braiding machine
- 99 Piece / Pieces per Month
- ningbo Or shanghai
- T/T L/C D/P D/A Credit Card PayPal
- shower hose with ACS WRAS KTW-BWGL certification
- Frost Free Sillcock Wall Hydrant half SWT
- Straight Copper Water Line Kit 14inch Length
- Length Optional Stainless Steel Flexible Braided Metal Hose For Wash Basin
- High Quality Flexible Stainless Steel Flexible Pipes
- High Quality Stainless Steel Flexible Braided Hose
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | BF | Model Number: | BFB24L-114B |
Product Description
BFB24L-114BThe noise is small high pressure hose bathroom hose automatic control hose braiding machine
BFB-B Vertical Automatic Hose Braiding Machine Series (BFB-90,110,114,130,140,160,200) is a new set of automatic braiding equipment which is designed and improved based on our digesting and absorbing foreign advanced technology. The machine is widely used in company which produce wires, cables, weaved rubber tubes which endure high pressure, weaved rubber water tubes, weaved ropes, tubes used in cars and motorbikes and rubber & plastic tubes in the sprayer Teflon hose high pressure.
- High Automatic Extent : broken, empty bobbin, or no tube automatic machine self-closed.
- Adopt adjustable speed to accommodate pitch ,don’t need to change gear
- High productive efficiency :production three times than present usual machine per hour, the max production reach to 98m/h.
- Low noise, transmission and pulling system adopt absorbing sound, reducing shake and inserting equipment.
- Easy maintenance, transmission flexible, structure easy install and remove.
- Spindle adopt elastic and adjustable equipment ,dependable position , easy, convenient and flexible install bobbin.
- Small abrasion and long using life, the key part use excellent material and Adopt heat-treatment and lubricant equipment.
TECHNICAL PARAMETERS
Voltage | 380V 3φ -380V/50HZ |
Motor power | 1.1KW |
Carrier RPM | 45rpm(max) |
Traction RPM | 4.26-18.5rpm |
Take up reel | Attachment |
Hose OD | ≤24mm |
Traction wheel | φ 200 |
Carrier Qty | 24pcs |
Bobbin size | 56x22x170mm |
Net weight | 305kg |
Dimension | 720x890x1680mm |
Apply | Change spindle can braiding wire and yarn |

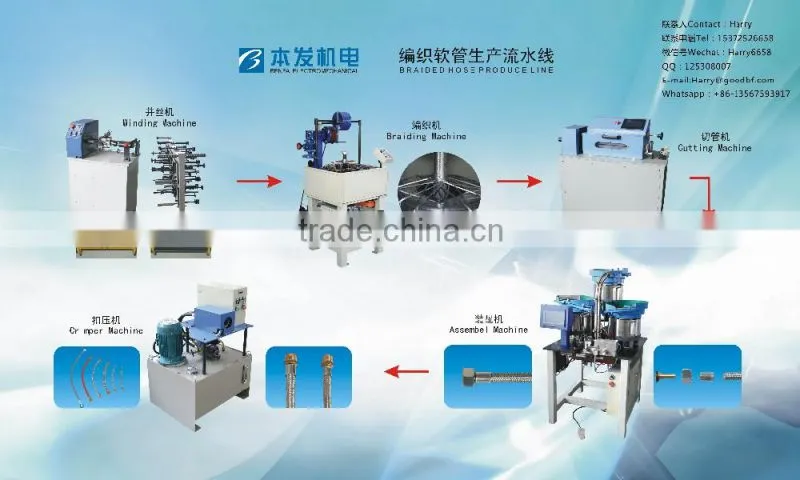

Xingchang benfa electromechanical establish in 1998 ,professional designing and producing braiding machine and complementary equipment technology company. Our main products including combination double decks braiding machine, horizontal high speed double decks CNC braiding machine, flexible hose braiding machine, rope braiding machine, winding machine, crimper machine and flexible hose assemble machine.
Quality First, Win-win each other. We will try our best to offering perfect hose braiding solution.
Certificate
Exhibition
Partners
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing,debugging, operation of the machine, it will indicate you how to use this machine well.
2.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
service
24 hours on line, buyers can talk to us any time.
Your satisfaction is our eternal need! We always pursuing to do better!
Frequently Asked Questions
Q: How long have you been in this field?
A: Our enterprise was founded in 1998, and we are professional in designing and producing knitting machine in this field for 18 years.
Q: How long is the warranty-period?
A: The warranty period of machine is one year, and we provide lifetime quality guarantee.
Q:As a transnational business, how do you deal with the after-sale service of the machine?
A: Depending on the problem, we have professional engineers with professional guidance; we promise we will solve your problem as soon as possible.
Q:Can you customize the machine for the customer?
A:Yes. We can, we also provide OEM for customers; If you need customized service, please contact with us.
Contact Us
- Xinchang Benfa Electromechanical Co., Ltd.
- Contact nameXianjun Liang
- Phone0086-575-86220518
- Address NO 20 wufeng road xinchang county Shaoxing,Zhejiang
