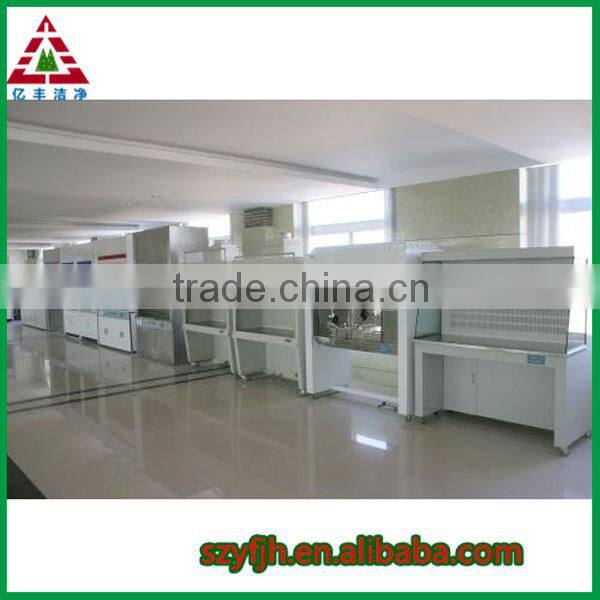

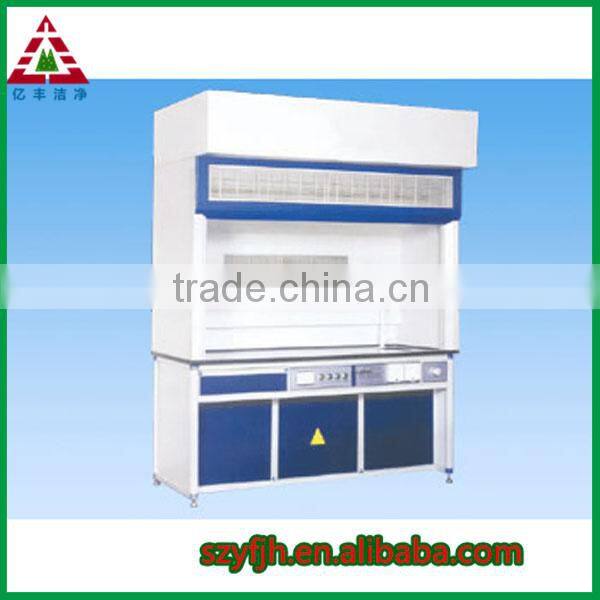

Fume Hood for Clean Room and Laboratory

Standard size: 1200*800*2350mm, 1500*800*2350mm, 1800*800*2350mm

Table: 12.7 mm thickness  chemical-Resistant Laminate which is resistant of

 acidand alkali , Chemsurf core physical and chemical board table imported by theUnited States,strong acid resistant and alkali resistant, wear-resistant. High temperatures, along the edge of the stick handling,  a waterproof edge; the surface color: black;

Cabinet:

On top tank, it adopts 1.2mm thick high quality cold-rolled steel plate bending jointing molding.Epoxy resin powder electrostatic high pressure sprays the surface. Acid and alkali resistant.It adopts 40mm*40mm*1.8mm steel for framework to joint into integrated at bottom framework; epoxy resin powder electrostatic sprays treatment on the surface after embalmment;

All steel structure lower tanks, it adopts 1.5mm thick high quality cold rolled steel with welding treatment. Epoxy powder electrostatic high-pressure spray treatment on the surface. It is acid and alkali resistant;

Windows: adopting 5mm tempered glass, infinite variable speed counterpoise weight in the design, comfortable window movements to locate at any position;

Power distribution: use high quality socket, standard is triplex sockets rated current at 16A, 10A five-hole sockets,2 5A/380V quadruplet sockets;

Exhaust: three stages exhaust in the designing, no exhaust corner, adjustable flow rate, wind speed reaches 0.5m/s~0.8m/s;

Lighting :30 (40W) hidden fluorescent light;

Function: the body is equipped with the protection devices for leakage, overload, short circuit and the controlling system is equipped for blower;

Sink: 6mm thickness imported PP materials to make an integrity, pressure-proof, corrosion resistance and stand fire;

Water faucet: imported Fume hood set special simplex water faucet, it is anticorrosion;

Hinges: 90 degrees,180 degrees adjustable, high quality hinge made in Guangzhou;

Tail :stainless steel with rubber can adjust tail, height to 50mm,the height of sliding door is 800mm~1000mm;

Noise: inner cabinet ≤65db, outer cabinet ≤55db;

The ventilation system accessories: Fan: PP / PVC material, thickness 5 mm;

                                                        Pipeline: PP / PVC material, thickness 5 mm;

                                                        Elbow: PP / PVC material, thickness 5 mm;

                                                        Tee joint T: PP / PVC material, thickness 5 mm.
