Laboratory Fume Hood, Steel Fume Hood, Fume Cupboard Sfh 06A

Laboratory Fume Hood, Steel Fume Hood, Fume Cupboard Sfh 06A thumbnail-1
Laboratory Fume Hood, Steel Fume Hood, Fume Cupboard Sfh 06A thumbnail-2
Laboratory Fume Hood, Steel Fume Hood, Fume Cupboard Sfh 06A thumbnail-3
Laboratory Fume Hood, Steel Fume Hood, Fume Cupboard Sfh 06A thumbnail-4
Laboratory Fume Hood, Steel Fume Hood, Fume Cupboard Sfh 06A thumbnail-5
Laboratory Fume Hood, Steel Fume Hood, Fume Cupboard Sfh 06A photo-1
Laboratory Fume Hood, Steel Fume Hood, Fume Cupboard Sfh 06A photo-2
Laboratory Fume Hood, Steel Fume Hood, Fume Cupboard Sfh 06A photo-3
Laboratory Fume Hood, Steel Fume Hood, Fume Cupboard Sfh 06A photo-4
Laboratory Fume Hood, Steel Fume Hood, Fume Cupboard Sfh 06A photo-5
US$ 900 - 2,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Size:
1200/1500/1800*800*1250mm, 1200/1500/1800*800*2350mm
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Yifeng Clean Technology Jiang Su Shares Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Size 1200/1500/1800*800*1250mm, 1200/1500/1800*800*2350mm
Place of Origin Jiangsu, China

Specifications

fume cupboard
1.10 years experience of fuming hood manufacture
2. High quality
3. ISO9001:2000
4. OEM&OED



Product Description



fume cupboard





Standard Side Top :  (W*H)   750*800-850(mm)



Standard Centre Top: (W*H)   1500*800-850(mm)



Instrument Side Top : (W*H)   800*800-850(mm)



Fume Hood: D(1200/1500/1800)*W(800-950)*H(2350-2500)



Cabinet: D(1200/1500/1800)*W(800-950)*H(2350-2500)



Heat Units: (W*H)  750*650(mm)



Reagent Shelves: (W*H)  300*700(mm)



Solid Chemsurf Board   12.7,15mm



Surface Chemsurf : 27mm



Trespa: 13,16,19,25mm



Epoxy:15,19,25mm











Worktop



Material options:Industrial Ceramic/Epoxy Resin/Laminate/Stainless Steel











Full Steel Body Structure



1.2mm first grade cold rolling steel by acid washing,phosphating and static electrical spraying with epoxy resin powder for erosion resistance,strong standing for weight.







Sash
With blast proof glass lined with glue for the front viewing window,the glue sticks the broken glass in case of glass breaking,to ensure the safety of the operator.


Baffle
Electronically controlled center flowing guide can be adjusted with its mouth size according to the amount of smoke,ensure a free smoke driving away.



Cabinet
It is frame structure under the detoxification cabinet which can allow the operator to have free space for desired short cabinet to be located within.

Electronical control panel set up to the front face for easy operate.The applying of touching switchs upgrade the product class degree to automatic control level.

Sink
Imported PP integrate molded sink to be acid and alkali resistance.

Faucet
ASL single water faucet in white clolor,faucet mouth is made of brass in fairly sharp shape, higher positioned 360 degree turnable for multi-application,it has reduced water pressure and removable for cleaning of clogs.

Pipe
Pipes are to be brass on which the surface is stroving varnished.



Other Accessories

- Modular electric sockets panel and control devices

- Removable painted metal plugging (outside)

- Two tubes fluorescent lamp (LED on request)

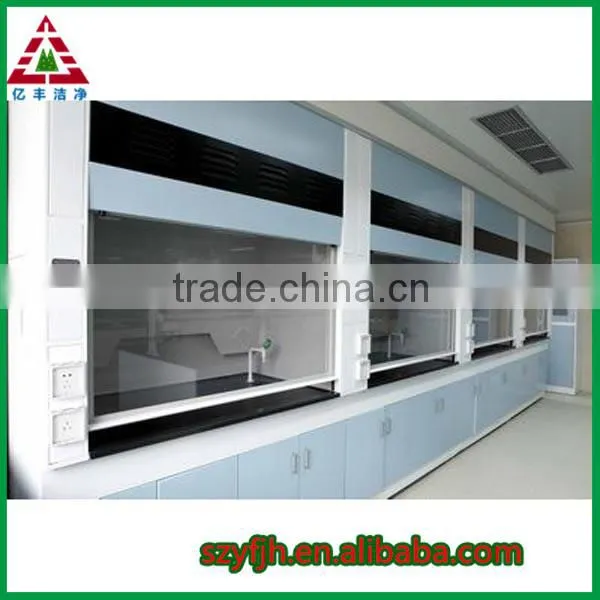

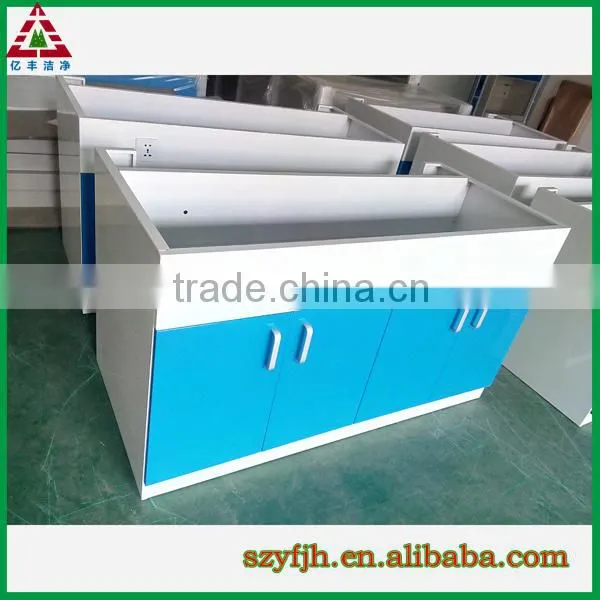

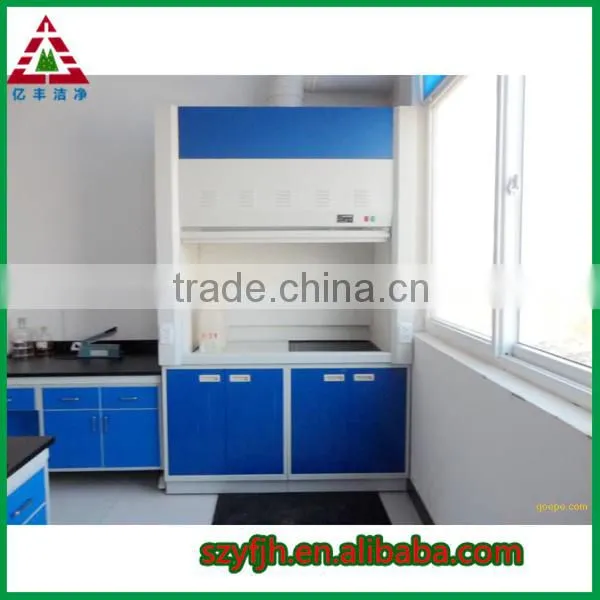

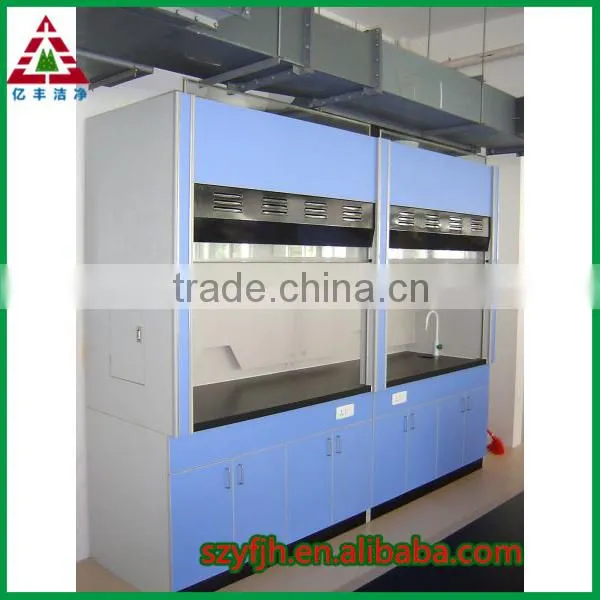

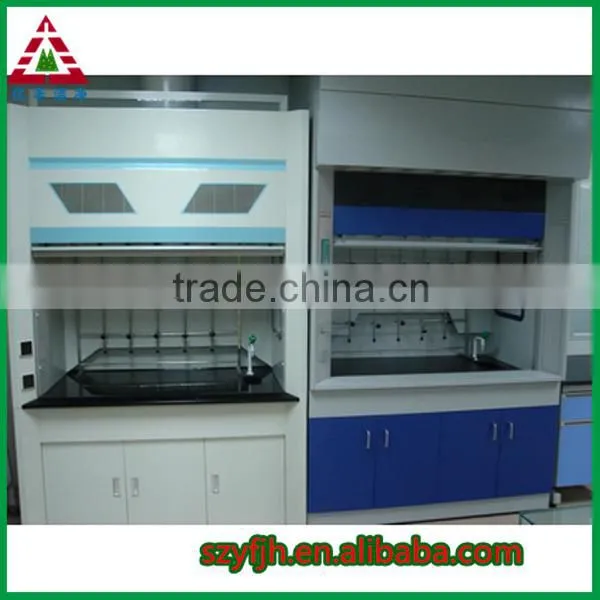

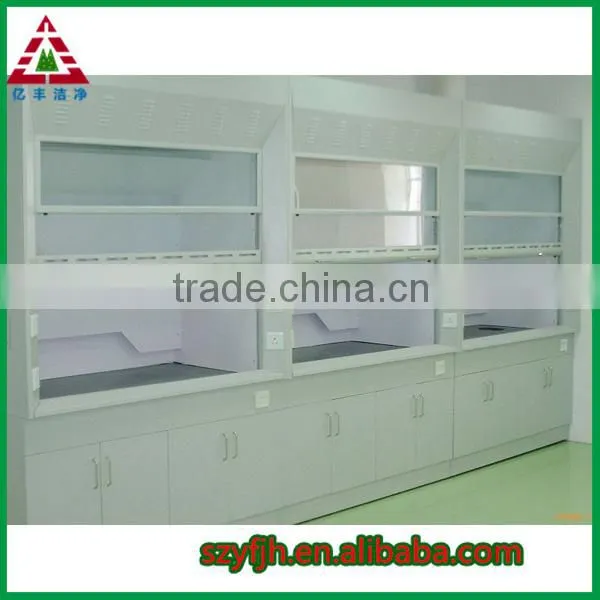

Referance picturers



 Laboratory Fume Hood, Steel Fume Hood, Fume Cupboard Sfh 06ALaboratory Fume Hood, Steel Fume Hood, Fume Cupboard Sfh 06A

 Laboratory Fume Hood, Steel Fume Hood, Fume Cupboard Sfh 06ALaboratory Fume Hood, Steel Fume Hood, Fume Cupboard Sfh 06A

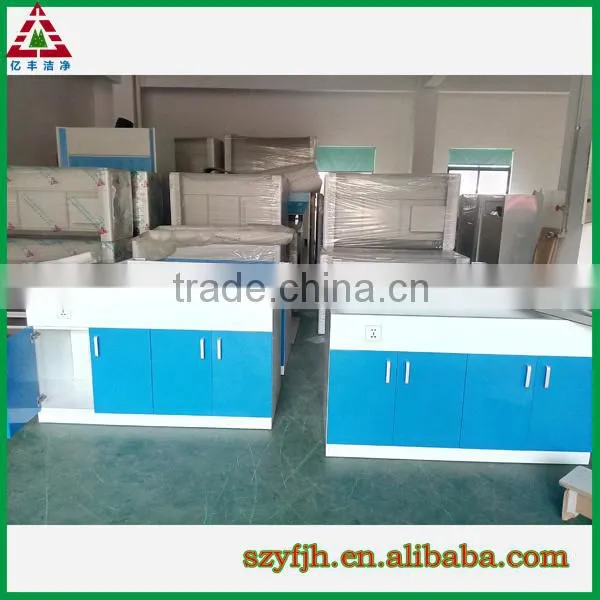

Packaging & Shipping





Laboratory Fume Hood, Steel Fume Hood, Fume Cupboard Sfh 06ALaboratory Fume Hood, Steel Fume Hood, Fume Cupboard Sfh 06A





Our Services







1. factory price help you get more profit

2. 24hours one by one service offered

3. Technical support available

4. CE certification to make sure the high quality

5. Skilled workers to ensure the delivery on time

6. Free 3D drawing to help you control the  project
