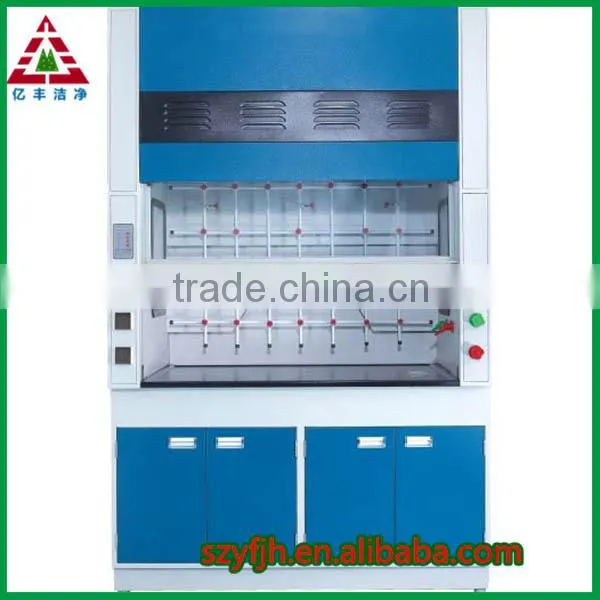

Help CenterProfessional Steel Lab Fuming Cupboard Fume Hood
Related Products
-
All Steel Chemical Fume HoodUS$ 850 - 2,500MOQ: 1 Unit -
Laboratory Chemical Fume Hood Steel and Wood MaterialUS$ 900 - 2,500MOQ: 1 Unit
-
Laboratory Chemical Fume Hood Fan for Fume HoodUS$ 900 - 2,500MOQ: 1 Unit
-
Laboratory Furniture General Use Commercial Furniture Type and Laboratory Fume HoodUS$ 1,500 - 1,500MOQ: 1 Piece
-
Laboratory Fume HoodUS$ 1,500 - 3,000MOQ: 1 Piece
Specifications
steel lab fume hood1,Manufacturer
2,Environmential
3,Cheap
4,Hot sell
| Size |
mm 850*2350*1200/1500/1800 accept customization |
| Color | White,black,blue or customized |
| Worktop | Industrial Ceramic/Epoxy Resin/Laminate/Stainless Steel |
| Structure | 1.2mm first grade cold rolling steel |
| Sash | Front viewing window made from blast-proof glass lined with glue which sticks to broken glass in case of accidents, thus ensuring the safety of the operator. |
| Cabinet | Detoxification cabinet has free space underneath for a small cabinet should the operator need one. |
| Sink | Imported PP integrate molded sink with acid and alkali resistance. |
| Faucet | The three water faucet nozzles are made of high quality copper and coated in epoxy resin powder, sink handles are crafted from ceramic. Water faucets are specially designed for use in labs. Subject to change accordingly with customer’s desires. |
| Accessories |
1.Modular electric sockets panel and control devices 2.Removable painted metal plugging (outside) 3.Two tubes fluorescent lamp (LED on request) |
The structure
The structure of the fume hood is that it has two parts the up part, and the downside part, it has the vent on the top, for install the fan, On the top of the upside cabinet has the guide plate, circuit control touch switch, power outlet, etc
1) The downside of the cabinet is just like the lab side bench, on the top is the table-board,
below is the cabinet. The table- board can install small cups and tap.
2) The material of the fume hood is various, all steel, steel wood, all wood, aluminum,
wood, plastic, PVC structure, etc, and the table board is part of the operator touched,
it is made up by the solid core physical and chemical plate, stainless steel plate, PVC,
ceramic material and so on.
3) The common cabinet width is 1000, 1200,1500,1800 and 2000mm, width is 700-
900mm, height is 1900-2400. It can be used for 1-3 people at the same time. The fume
hood normally is installed along the wall.
4) The height of the door opening is 100-600mm, because of the fan through the open door
inward extraction, under normal circumstances the harmful gas will not spill.
The function of the fume hood:
1) The most important function is extract air, in the laboratory will produce many harmful gas, bad smell, dampness, and the inflammable, explosive, corrosive substances. In order to protect the security of the user, prevent the diffusion of pollutants to the laboratory, in the vicinity of pollution sources to use fume hood. Before we have few fume hoods, so can only use to the experiment which particularly harmful and dangerous gases and produce large amounts of heat.
2) The fume hood has the auxiliary functions of the test bench. Now, considering to improve the experimental environment in recent years, in the experimental stage in experiments gradually transferred to the ventilation cabinet, this request in the fume hood should have the most suitable for the function of the equipment used.
3) Most particularly the new laboratory are required to have air conditioning, so in the construction of the preliminary design stage that the the quantity of the fume hood have been in the plan of the air conditioning system. Because of the fume hood occupies very important position in the biochemical laboratory, from the improvement of laboratory environment, improve the labor hygiene conditions, improving the work efficiency into consideration, such as the use of the fume hood number by leaps and bounds. Followed by ventilation pipes, piping, wiring, exhaust, etc have become the important subject of laboratory construction.
The characters of the fume hood:
The purpose of using the fume hood is discharge harmful gases which is generated in the experiment, protect the health of the researchers, that is to say, for high security and excellent operability, which requires the fume hood should have the following functions:
1) Release function: the fume hood should have the function of absorb the air of outside of the cabinet and dilute the harmful gas produced inside fume hood, and extract it to outside of the room.
2) The function of prevent back flow:the fume hood should promise the harmful air in the fume hood be extracted to outside of the room, not back flow.
3) Isolating function: In front of the fume hood should have the no sliding glass Windows to separate the fume hood outside and inside.
4)Auto-completion:the fume hood should have the ability of suction air from the outside of the fume hood when it extract the harmful air.
5) The function of heat resistance and resistance to acid and alkali corrosion: In the experiments, there will be many poisonous and harmful gas such as acid and alkali with strong corrosive. So the table-board, plate, side panel and the part of the fume hood should antiseptic. And in the semiconductor industry or corrosive experiments such as sulfuric acid, nitric acid, hydrofluoric acid, the fume hoods are also required to overall material must be well protected against acid and alkali, shall adopt stainless steel or PVC materials

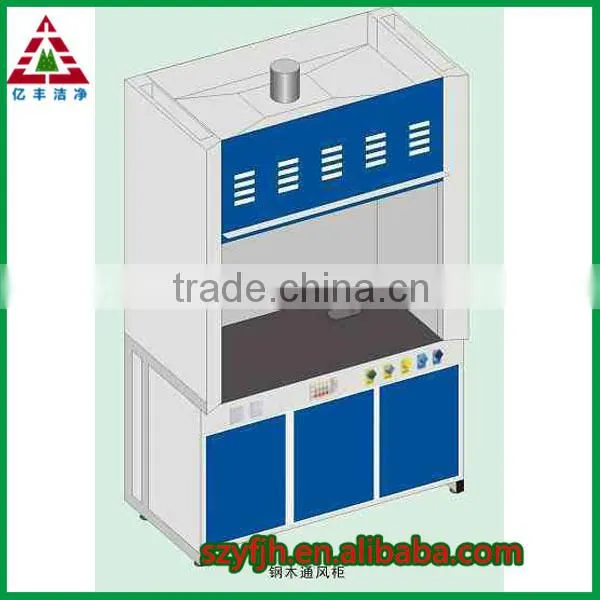

Reference Photoes:
Our service:
1) 7*24h online service, warmest and the most patient.
2) samples are free but the fees for transportation should be in your charge.
3) installation,technology support and training by extra.
4) post-sale service by extra
1.Payment:
(1) T/T, L/C are acceptable.
(2) Price Term: FOB Shanghai.
