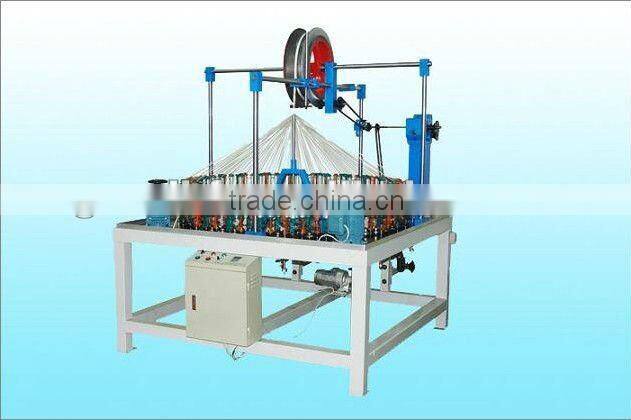

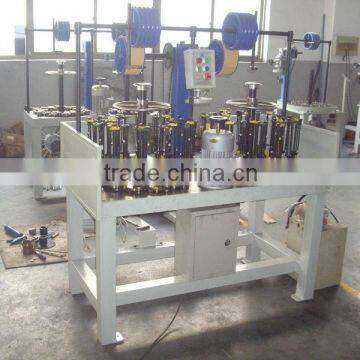

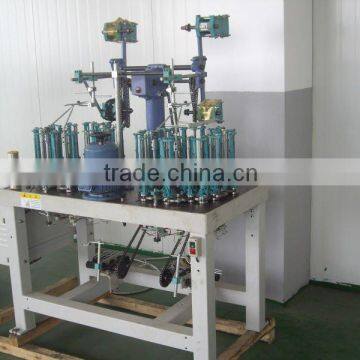

24Spindles Pet Hose Braiding Machine

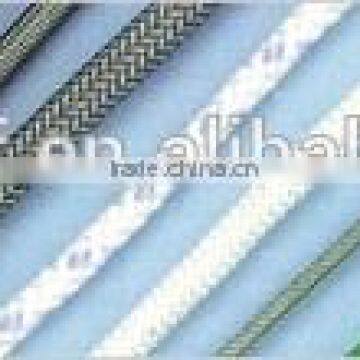

Products: e.g. high temperature wire, audio cable, shield wire and coaxial cable, braided water hose, braided rubber hose, ETC
Function:
For the production of e.g heavy protection shells, shielded layer of the wire and cable.
Products: e.g. high temperature wire, audio cable, shield wire and coaxial cable, braided water hose, braided rubber hose, ETC
Feature:
1. it is east to make different size of products by changing the pitch gears.
2. adopting frequency control motor which is easy to control the speed
3. well designed auto stop system has a sensitive reaction, when the yarn is over or breaks, the machine will stop automatically, which reduce the waste of the yarn. So when there is nobody works near the machine, it is also safe. This device lower the labor cost and increase the production.
4. We have 800kinds braiding machine for chosen. There is always one braiding machine for you here!
5. All spare parts are made by ourselves, and every parts have to pass strict inspection before they are installed on the machine.
6. We R&D braiding machine for more than 30 years, and have gain dozens of patents
Our main machines including: rope braiding machine, fashion shoelace braiding machine, lace braiding machine, wire and cable braiding machine (for high temperature wire, audio cable, shield wire and coaxial cable, braided water hose, braided rubber hose, etc.), shoelace tipping machine, bobbin winding machine, looming machine,etc,
Up to now, we have 800kins braiding machines and looming machine in best price and best quality. No one can match us so far as quality is concerned. All products have to pass strict in spections before they go out.
All the spare parts are made by ourselves, such as the bobbin, and drive plate. So we can control the quality of every part.
size |
Spindle number |
Tube diameter |
Raw material |
Pitch range |
speed |
power |
FB-16-4(90) |
16 |
1-5mm |
PET,fiber glass,PP,PE,nylon |
0.5-20mm |
84round per minute,changeable |
380V,3 phase,
|
BF-24-2(90) |
24 |
3-12mm |
PET,fiber glass,PP,PE,nylon |
1-25mm |
56 round per minute,changeable |
380V, 3 phase,
|
BF-32-2(90) |
32 |
6-12mm |
PET ,fiber glass,PP,PE,nylon |
5-35mm |
42 round per minute,changeable |
380V,3 phase,
|
BF-36-2(90) |
36 |
6-12mm |
PET,fiber glass,PP,PE,nylon |
5-60mm |
25 round per minute,changeable |
380V, 3 phase,
|
BF-40-1(90) |
40 |
4-6mm |
PET,fiber glass,PP,PE,nylon |
10-70mm |
28 round per minute,changeable |
380V,3 phase,
|
BF-48-1(90) |
48 |
5-9mm |
PET ,fiber glass,PP,PE,nylon |
10-80mm |
25 round per minute,changeable |
380V,3 phase,
|
BF-56-1(90) |
56 |
8-12mm |
PET ,fiber glass,PP,PE,nylon |
15-100mm |
20 round per minute,changeable |
380V,3 phase,
|
BF-72-1(90) |
72 |
20-30mm |
PET,fiber glass,PP,PE,nylon |
20-120mm |
15 round per minute,changeable |
380V,3 phase, |
