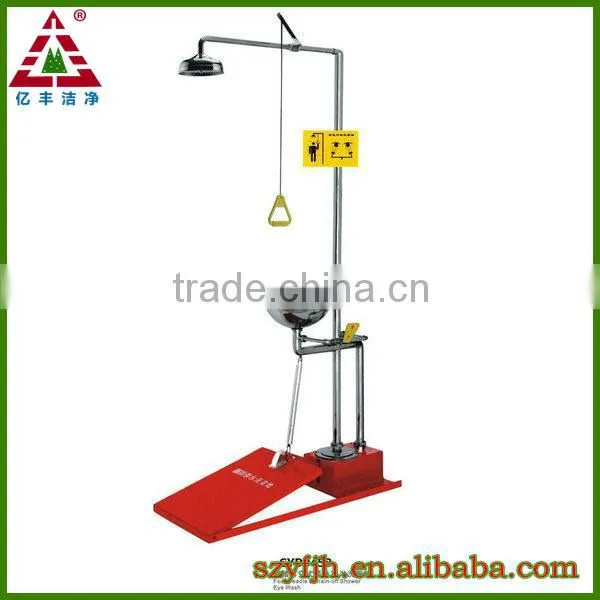

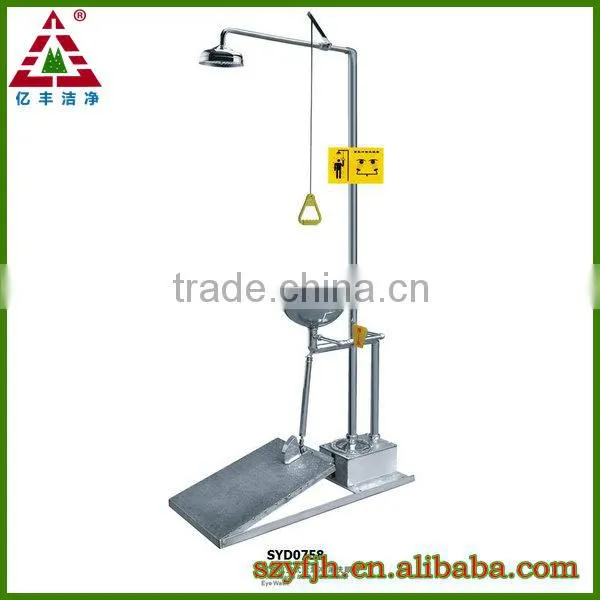

Stainless steel emergency eye wash, safety shower & eye wash

Carton or plywood packing

*Main function parameters

Choosing these data is considering the hurt to the skin, eye(s), when accidents happen.

*Structure

1. The ball valve controls spray and eye wash respectively. It is easily operate and you may assure the quality.

2. Set the seepage hole in the pipe of eye wash, can drain off the residual water in the sprayer head of eye wash, which will help to clean pipes and antifreeze(part of the water drained into the downcomer, will not affect the using.

*Main material: good quality stainless steel, gloss exquisite polished

*Installation and maintenance

1. You should check the type of products, instruction and the packing list for another time.
2. The location of the emergency equipment should be installed within 10 seconds walking time or 15 meters from the hazard.
3. Installation and maintenance:
4. The connection of the bracket and the pipe: connect the T-piece of outlet with the bracket.
5. The installation of the bracket: Adjust the position of the T-piece and install it by M10 screw.

The installation of shower pipe: screw on the sprayer head (G3/4” net gasket inside) to sprayer pipe, enwind the other end of sprayer pipe with Teflon tape, tighten at the up part of erect pipe, and then adjust the position of sprayer head and to lock well the

1. Body: 304 Stainless steel

2. Eye Wash: 304 stainless steel inlet pipe, S/S stay-open ball valve with flag handle & S/S eye wash bowl.

3. Spray head: Solid brass, built-in stainless steel filter to remove inpurities from water

4. Foot treadle stainless steel available: Activating eye wash valve(Non-standard Supply)

Our service:

1) 7*24h online service, warmest and the most patient.

2) samples are free but the fees for transportation should be in your charge.

3) installation,technology support and training by extra.

4) post-sale service by extra

1.Payment:

(1) T/T, L/C are acceptable.

(2) Price Term: FOB Shanghai.
