Cnc wood beads machine
Our machine advantage:
1. it is computer nemerical controled
2. it is with 300 kinds drawing gallery except for round beads
3. easy controled special wood beads machine control system is studied by us
4. best hard alloy wood lathe cutter in China market, can match with you soft wood cutter and hard wood cutter
5. can designed by your requirement
6. imported square orbit and ballscrew transmission
7. long lifespan, high precision
8. processing precision: 0.01mm
Application:
Bead, barrel, all kinds of buddha head pagoda, gourd pendant, hoist pieces, wood rhinoceroshorn
cup, bowl, whip,cigarette holder, eggs,ashtray, scroll painting head.
operate way:
Direct input required in the software
Bead diameter can be simple parameters; pagoda gourd, direct
Select the shape, size. No programming, easy to use.
You can also design your own style, drawing of contour line, put into
BMP, JPG image can be processed.
Cutter lifespan:
Adopt super hard alloy cnc cutter(special for stainless steel),no wear for turning and milling red wood.
processing 3000 pieces Lobular red sandalwood whose diameter 2cm, no need chang cutter.
Very long service life, is the standard Piece.
If there is damage to the direct replacement, without understanding thesharpening technique.
Processing speed:
In the processing of 2 size beads shall prevail, lobular Rosewood automatic
Hole, turning every 38 seconds, 30 seconds without holes.
Phoebe play hole turning, every 25 seconds, not punching every 19 seconds;
The processing of 5 cm diameter handball, 2 minutes one piece.
Processing handgrip gourd, diameter 5 cm, 11 cm long with 5 minutes.
Paratemers
NO. Description |
Parameter |
|
1 |
max process length |
400mm
|
2 |
process beads diameter |
5-100mm |
3 |
machine size |
110*75*40mm |
4 |
transmisstion way |
ballscrew with imported bearings |
5. |
orbit |
Taiwan Hiwin orbit |
6 |
Interface |
internet wire |
7 |
system |
Tian Jiao designed special used in beads making system
|
8 |
Surroundings for software |
windows98/2000/xp |
9 |
Power |
1.5KW |
10 |
Working voltage |
AC220V 50Hz |

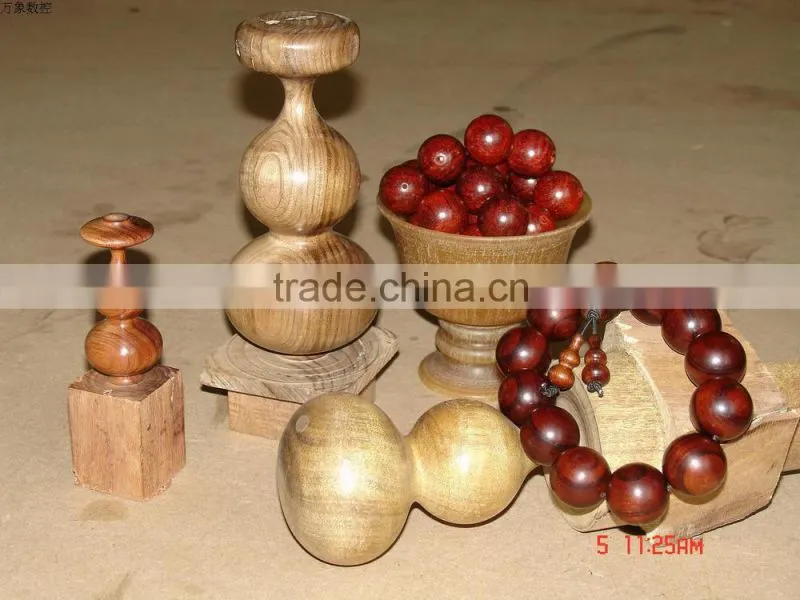

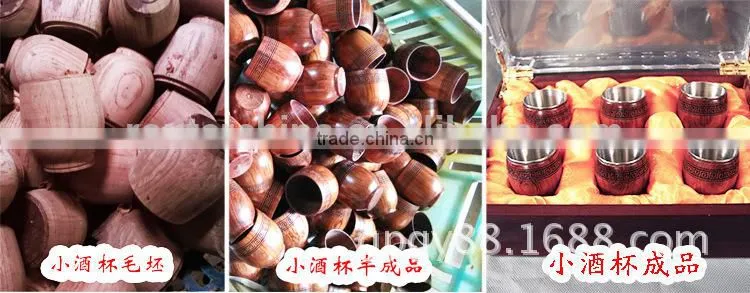

Samples
Packing&Shiping
Our company
After-sale service
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4.Spare parts replacement and repair service provided.
Contact
Sale Manager:sara
Tel: +86-18366192210
Skype: live:sara5211-2
TradeManager:cn1001481911
