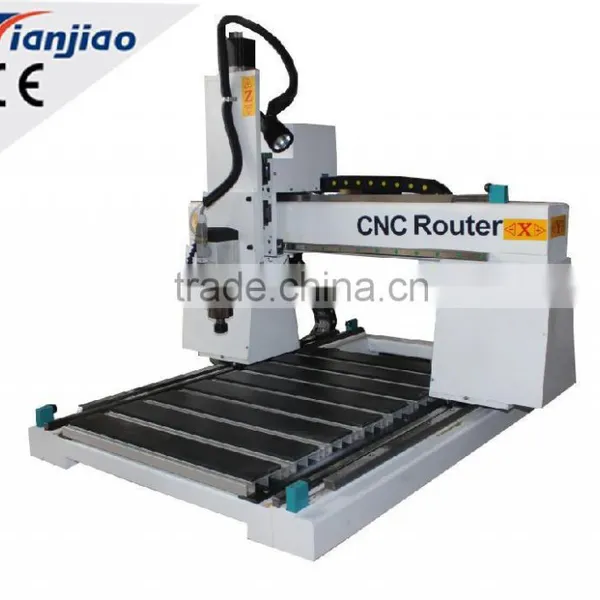

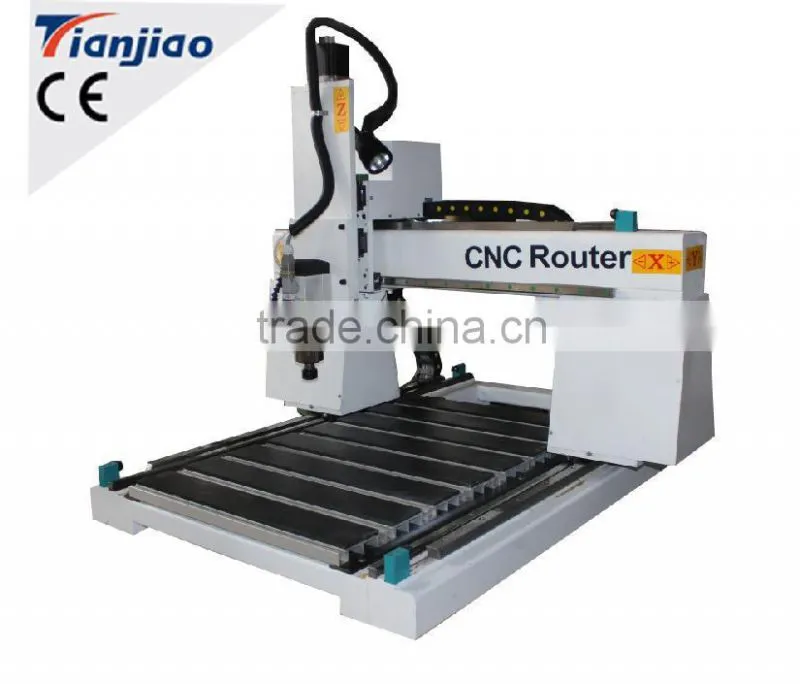

3d Multi Function Cnc Router With Rotary Device/ Woodworking Machine

Name: 3d Multi Function Cnc Router With Rotary Device/ Woodworking Machine
Brand: Tian Jiao
SKU: 124360609

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Jinan Tian Jiao Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name Tian Jiao

Model Number TJ 6010

Voltage 220V

Power(W) 2.2KW air cooling spindle

Dimension(L*W*H) 1200x900x900 mm

Weight 300KGS

Certification CE

Warranty one year freely

After-sales Service Provided Engineers available to service machinery overseas

3d multi cnc router with rotary

Technical paraments :

T slot Cast steel structure, 600X1000 mm working area , square orbit,

ballscrew for Z , rack&pinion for X Y , DSP control system , 2.2KW air cooling spindle ,

stepper motor , aluminum working table , 20cutters( φ3.175 , φ6 , φ12.7), 3 collets

Technical paraments :

Machine model	TJ 6010
XY working area	600*1000 mm
Z working area	200 mm
Table size	800*1200 mm
Max. speed	30 m/min
Max. working speed	15m/min
Working delicacy	0.05 mm
Table	aluminum working table with PVC
Command	G codeu00 mmg*plt
Surrounding for software	Windows98/2000/xp
power	AC220 1 phases
Spindle	2.2KW air cooling spindle
Speed of spindle	0-18000 rpm/min
Work mode	stepper motor , Y axis adopt double motors to drive .
Structure	Steel structure, square orbit, ball screw for z axle, gear-wheel for x axle and y axle
Engraving software	Ucancam V9
Control software	DSP / NK105
