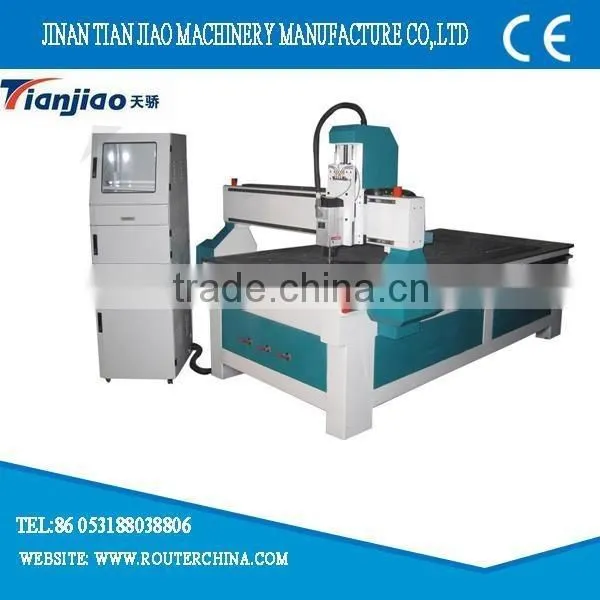

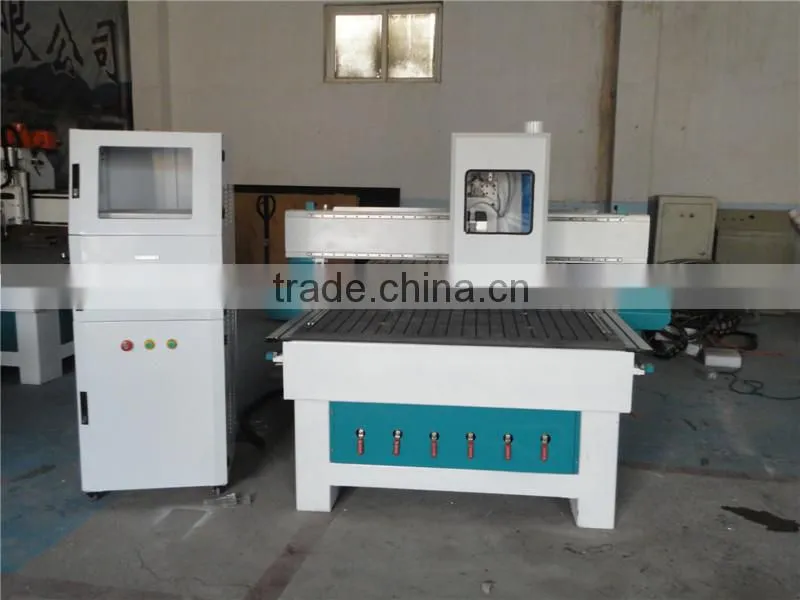

PCI controled wood cnc router 1325
Working video online of TJ1325 standard model cnc router:
http://youtu.be/ars2TRif5Og making crafts frame
http://youtu.be/Nl9FtdG9wf8 working in furniture factory
Advantages of the TJ1325 standard model cnc router:
1). Square pipe (150*250mm)welding machine body,4mm thick
2). Aluminum profile gantry,good look
3).TAIWAN PMI Linear square rails,
Helical gear for X and Y, Z axis ballscrew,some electronic components are imported, high precision and durable.
4). It is heavy-duty, heavy weight, avoid shaking when the spindle rotates fast.
5). Dust collector
6)Strong 3KW water cooling spindle.
Main parameters of standard cnc router TJ1325
No. |
ITEM |
PARAMETER |
||
1 |
Model |
TJ1212 |
TJ1325 |
TJ1530 |
2 |
Processing size |
1200*1200mm |
1300*2500mm |
1500*3000mm |
4 |
Package dimension |
2.1x1.9x1.7m |
3.1x2.2x1.7m |
3.6x2.2x1.7m |
5 |
Gross weight |
1000kgs |
1500kgs |
2000kgs |
6 |
Z axis height |
120mm |
200mm |
200mm |
7 |
Motor |
Step motor |
||
8 |
Driver |
Step driver Leadshine 860 |
||
9 |
Control system |
NC-Studio system |
||
10 |
Max Idle speed |
30m/min |
||
11 |
Max Working speed |
20m/min |
||
12 |
Max.rotating speed |
24000r/min |
||
13 |
Processing accuracy |
0.001mm |
||
14 |
Spindle motor power |
4.5KW air cooling |
||
15 |
Voltage |
380V/50Hz/3Phase (Or custom) |
||
16 |
Compatible software |
Type3,Ucancam, Artcam, JDpaint etc. |
||
Applicable industry:
1. The furniture industry: mahogany and other hardwood antique furniture carve patterns such as embossment, piercing .
Woodworking industry: classic mahogany furniture products processing.
3. The advertising industry: advertising signs, sign making, acrylic cutting, plastic molding, decorative products for a variety of materials, production of advertising.
4. Other Industry: a variety of shadow carving, embossment, widely used in craft gifts industry.
5. It can also be applied to: aluminum incision industry, aluminum plate, aluminum-plastic panels, aluminium honey comb plate, aluminium section, 3D ornamental engraving process, wave board production, various types of man-made plate opening and shaping, LED, neon shaped groove literal cutting, Light box molding. Acrylic, copper board, PVC board, artificial stone, MDF board and other material plates processing.

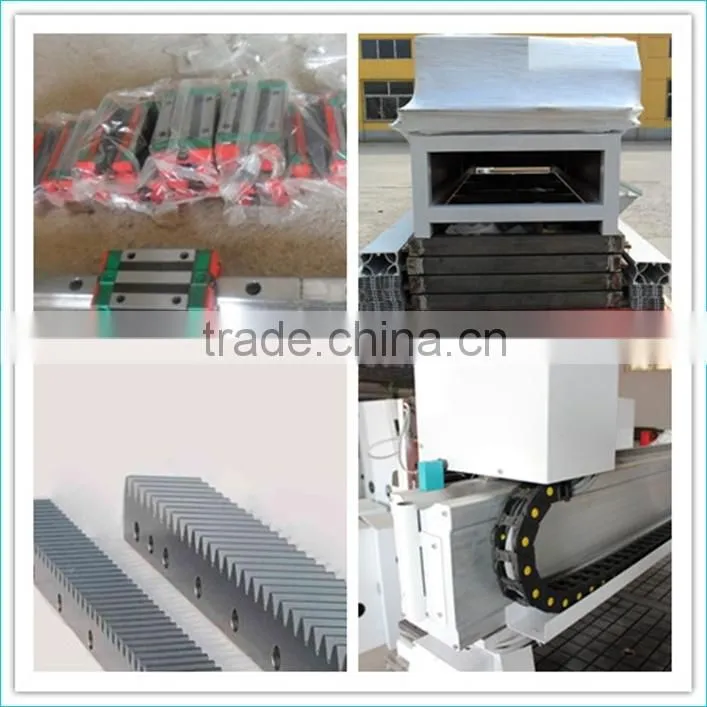

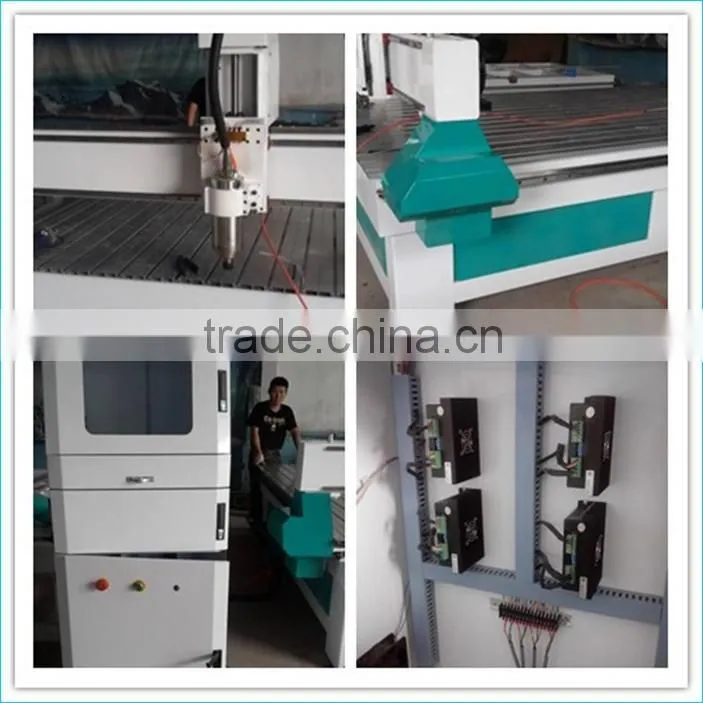

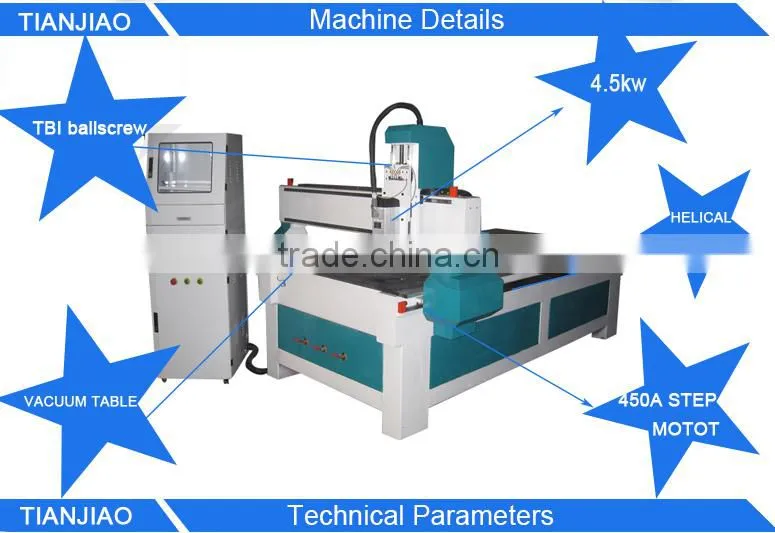

Details in machine:

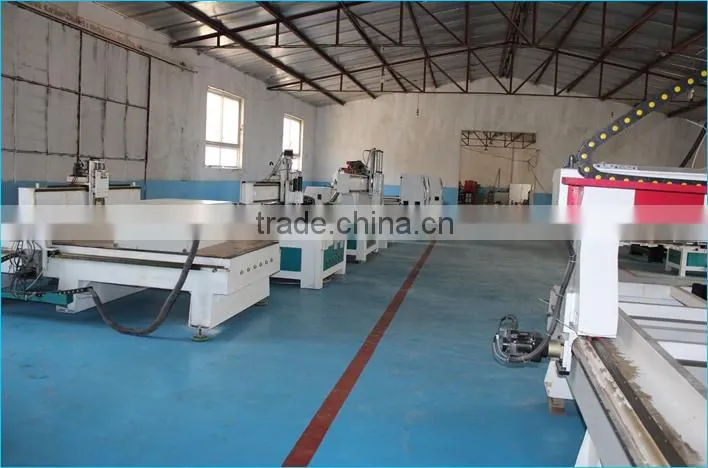

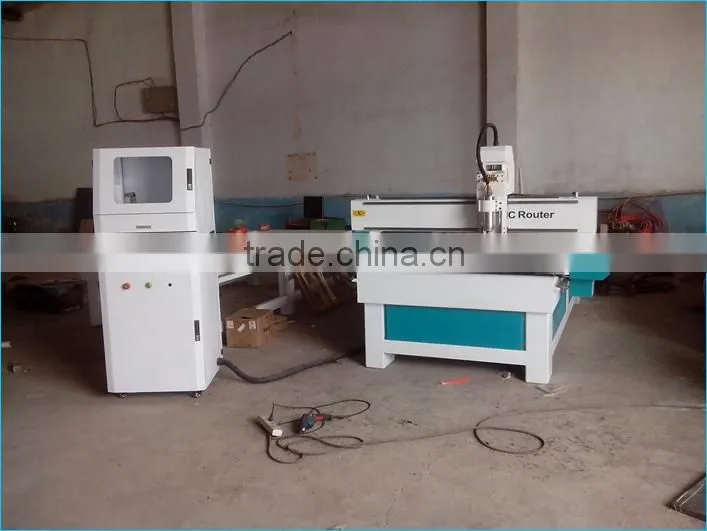

Machine in workshop
Samples made by TJ1325 standard cnc router:

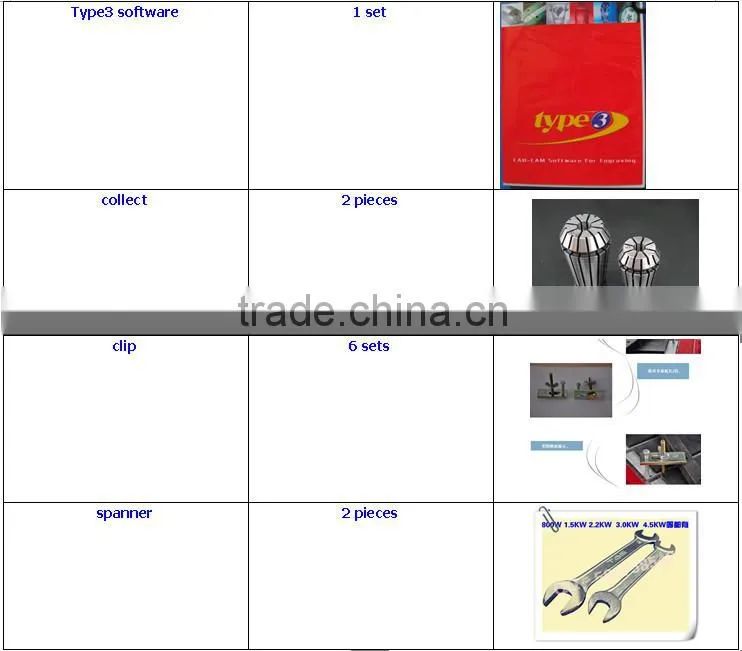

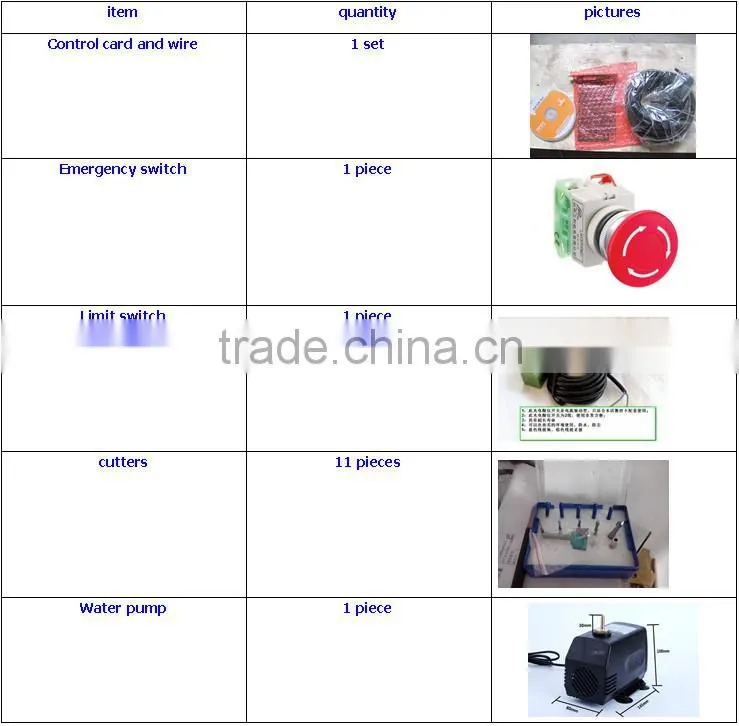

Parts following with the machine:
Before sale
1.Patient introduce and professional suggest buying selection
2.Real time report production situation
3.Take pictures and make videoes with your done machine
4. Strict test and debugg machine quality before shipping
After sale
24 hours on line service and phone on
2 years gurantee term
During gurantee term, repair or change damaged parts for free
Exceed gurantee term, offer at cost price
Jinan Tian Jiao Machinery Manufacture Co.,Ltd. is specialized in developing and manufacturing Mechanical CNC router (woodworking router, advertising router, stone engraving router), CNC Laser machine, Plasma cutting machine, cutting plotters, metal mould engraving machine and other cnc machines. We supply global market the high quality CNC equipments. We are leading company in this field and being confident in offerring the best service and best quality.
Q1: Do you have the manual of machine?
Yes,we have.
Q2: If we don’t know how to use the machine, can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you
can use machine freely.And if you are busy ,we will send specialized engineer to your country,but you have to
bear some fee,like tickets and hotel and meal.
Guarantee & After-sales service
- 1. Two year warranty under normal use and we supply maintenance for free.
- 2. 24 hours technical support by phone, E-mail, skype, msn
- 3. User-friendly English manual and Video CD is available for machine using and maintaining
- 4. Free trainnings to ensure that you can master the operation of the machine.
Payment terms
- 1. T/T in advance.
- 2. L/C is allowed if the amount is big.Please issue the L/C draft for our confirmation first.
- 3. Other kinds of payment we should conside if acceptable for us according to the amount.

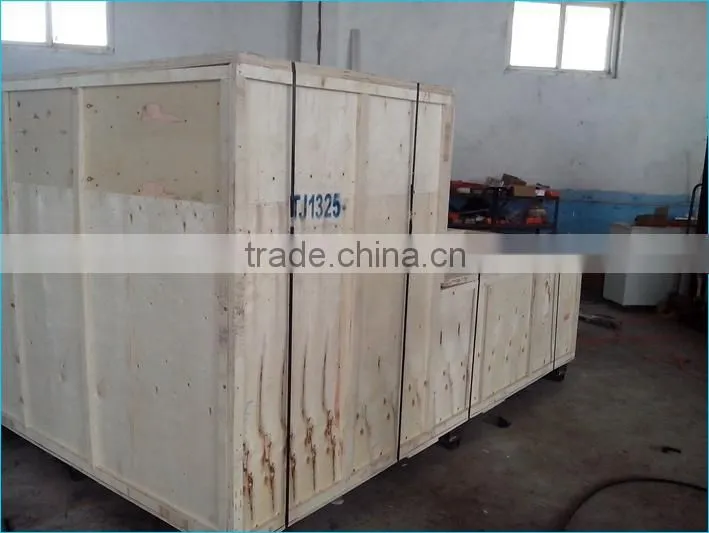

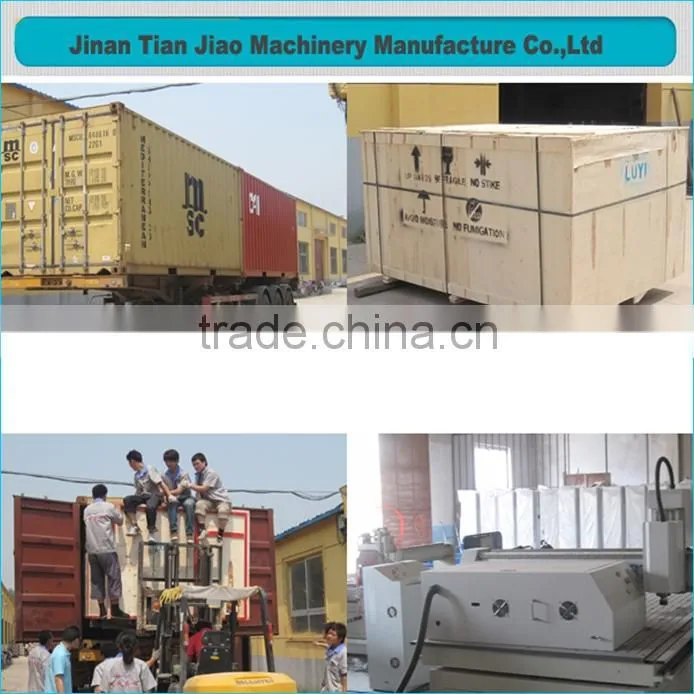

Delivery time
- 1. Standard specifications machines we usually take 7-10 working days.
- 2. Non-standard models we promise won’t spend more than your expected days.
