Specifications
1, portable clean room2, sandwich panel manufacturer
3, design & construction& installation
4,factory
5,as customized
Pharmaceutical clean room
1.Laboratory Furniture;
2.Fume Hood
3.Pass box
4.Air shower
Usage: Provide clean air and suitable temperature, humidity for medicine production.

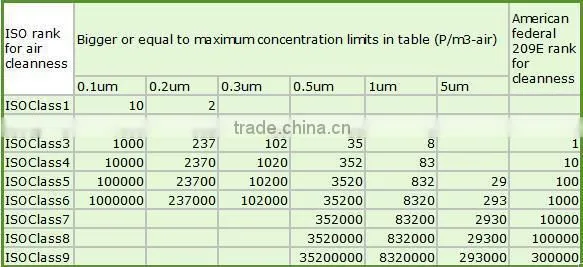

Clean Room Class:
Class A(100 class), for injection specific area.
Class C(10,000 class), for liquid dosage
Class D(100,000 class), for solid dosage

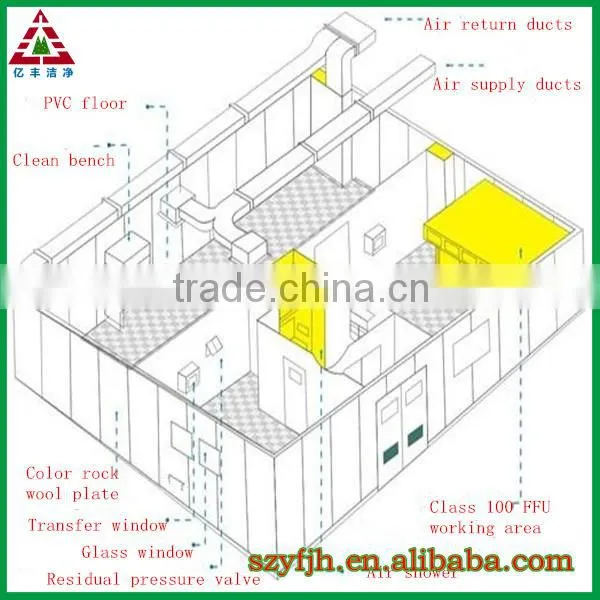

1. Wall and ceiling panel:
EPS(Polystyrene) panel, Rock wool panel,
PU(polyurethane) panel, Paper/Alu.honeycomb panel
thickness: 50,75,100mm,
width: 1150mm
2. Panel(or s.s) doors and windows
3. Floor System: Epoxy self-flow or PVC sheet
4. Air shower or air locks.
5. Pass box

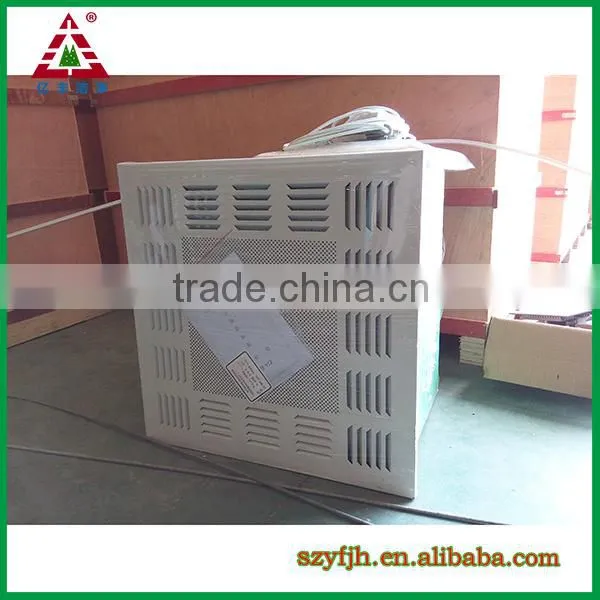

5. HEPA filter and laminar air flow
6. Air supply ducts and air return ducts
7. Air Condition Units and water chiller
8. Air Condition: Air Handling Units and Water Chiller
9. Lighting fixtures
Performance of sandwich materials in panel
Core name |
Density |
Heat conduct |
Max temp |
Inflammable |
EPS |
³18kg/m3 |
£0.041 w/m.k |
»100°C |
Level B1 |
Rock wool |
³100kg/m3 |
£0.046 w/m.k |
»500°C |
Level A |
PU |
³30kg/m3 |
£0.030 w/m.k |
»120°C |
Level B1 |
Class10000 easy installation pharmaceutical clean room with high cleanliness
Description
A clean room is "a room in which the quantity of particles floating in the air and, when necessary, the temperature, humidity, and pressure, can be controlled, the main objective of the dust in a given room is determined according to the requirements of the products to be handled in the room.

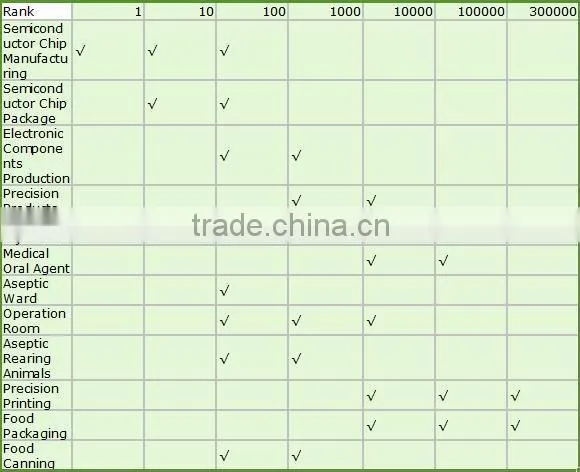

Typical application
Food industry
Aerospace
Life sciences
Biotechnology
Medical devices
Plastic injection module
Electronics assembly
Hospital pharmacy
Feature
Ceiling system of clean room: ceiling rod, I-Beam or U-Beam, Ceiling grid or Ceiling frame.
Air conditioning system: unit of constant temperature and humidity, every level filtration system, air supply and air return system, water pipe system, automatic control system, power distribution system and so on.
Partitional wall: purification colorful and steel tile, window, door, pass box, air shower, goods shower and so on.
Floor: Anti-static floor or EPOXY floor or PVC sheet.

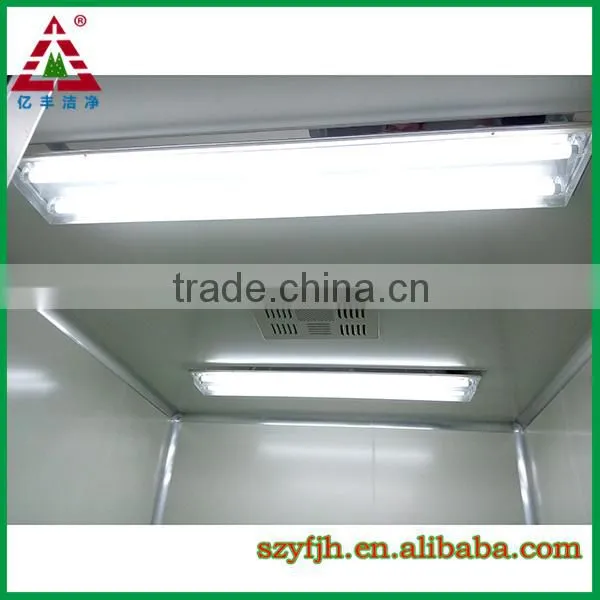

Luminaires of clean room : daylight lamp in clean room, anti-UV.
We kindly needs following information to design your clean room, pls kindly help advise following information:
1. The layout of the clean room area
2. Wall & Ceiling material: Metal-face PU sandwich panel or metal-face EPS sandwich panel; panel thickness: 50mm or 100mm
3. Door’s function and material
4. Air shower style
5. Purifying & Ventilation system
6. Sterilizing system: UV or Ozone
7. Lighting
8. Floor material : epoxy or PVC
9. The working height( the height from the floor to the lowest point of the grider)
10. The cleanliness, temperature and humidity request.
11. Workers quantity and equipments heat generating amount
Packing: standard packing suitable for sea transportation.
Shipping: within 20 days after receive the deposit
Research and manufacture development is the purpose we always follow for years, and also enjoy providing customer-oriented services , in particular any ODM/OEMbusiness.
When we begin to cooperation, we will provide the following services for you
1,Completely according to your request to production of goods for each one.
2,Report the production progress at any time, and send pictures to you to check.
3,Packing like picture. the packaging is solid and firm. Cartons will be printed on your company's information, can be done without any information of our company if you need.
4,Have corresponding label on each product of the packaging , it is easy to put and installation.
5,Documents provided accurately.
6,Follow up the shipping company information at any time, to remind the time of arrival.
7,After receiving the goods, we will send you the installation video or installation drawing, solve any problems for you at any time.
