High quality factory price Leadshine easy servo motor cnc router bit for wood

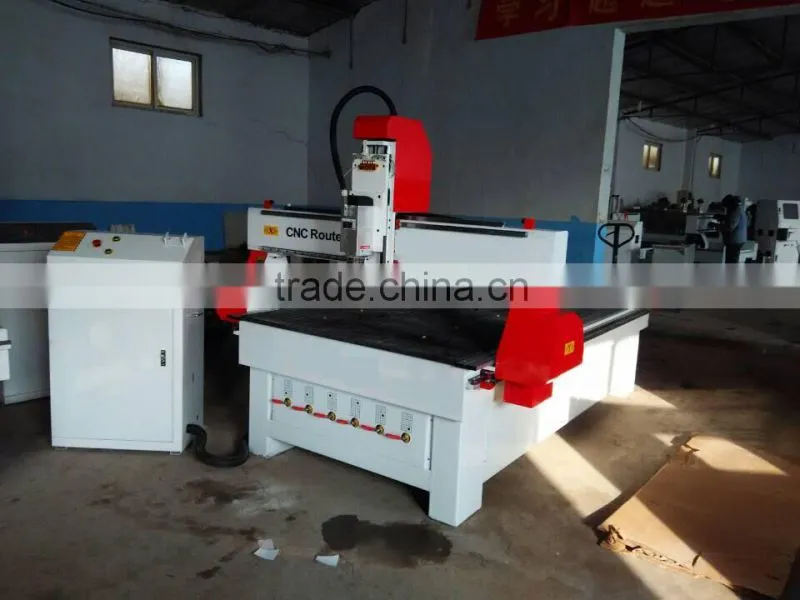

1.photos
2.Features
1.The max speed is up to 25 meters/min, engraving speed is 20 meters/min
2. Adopting easy coperated DSP control system, it is convenient to operate.
3. Unique intelligent budget principle make the motors offerring the high speed, so it could make
the straight and smooth curves.
4.Double motors to drive Y axises
5.High strength steel tube jointing.
6.The table equipped with 6 divided vacuum zones.
3.Parameters
NO. Description |
Parameter |
|
1 |
Table size |
1480×3000mm |
2 |
X,Y working area |
1300×2500mm |
3 |
Z working area |
200mm |
4 |
Max. speed |
25m/min |
5. |
Working Speed |
20m/min |
6 |
Interface |
USB |
7 |
Command |
G code*.u00*.mmg* plt |
8 |
Surroundings for software |
windows98/2000/xp |
9 |
Power(spindle is not included) |
8.87KW |
10 |
Working voltage |
AC380V 50Hz |
11 |

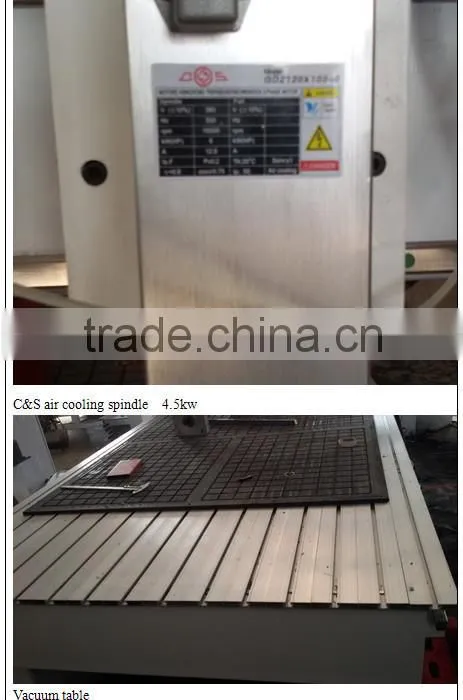

Spindle power (domestic made) |
4.5KW air cooling spindle |
12 |
Spindle rotating speed |
0-18000rpm/min |
13 |
Drive Motor |
Leadshine easy servo motor |
4.Details:

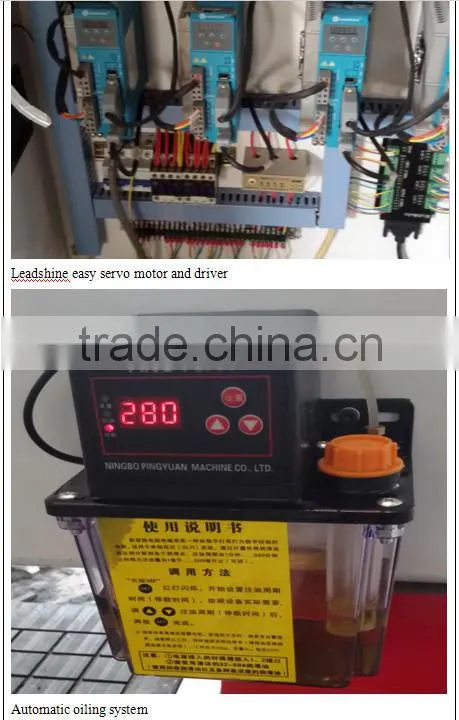

Easy servo motor advantages:
Compared with open loop step motor :
Don’t lose step, can accurate positioning
High-speed performance increase about 30%, and improve the equipment working speed;
Motor heat fell about 20%, extending the service life of the motor
Motor vibration decrease obviously, run more smoothly
The variable current control technology, save power consumption;
Compared with AC servo motor:
No need parameter adjustment, more convenient to use;
Zero speed stop stable, high-speed stops no shaking;
Position response very quickly, especially suitable for application in short start-stop situation quickly
Larger toque, smaller installation size
cost lower 50%
Besides the above advantages, this driver add alarm output function.
when the driver monitoring motor run in continuous overload, drive automatically
cut off the motor power supply, while the output alarm signal to the PC, until the alarm
signal elimination, the maximum guarantee for the safe, efficient operation of the client machine, the working
efficiency is improved.
Core features:
1,input voltage 18-75VDC,peak output current up to 8A
2,motor standard with 1000 wires line encoder, support vector close loop control,from the fundamental solves
the problem of the traditional stepper motor lose step
3.can drive 57/86 series easy servo motor, speed reach 3000rpm.
4.Adopt advanced current control technology,can be very good to improve motor acceleration and deceleration,
prolong the service life of machinery.
5, the 6 switch setting, the maximum microstep can reach 40000, can be set
The parameters of the motor, the positive and negative direction;
6,Driver configuration overload signal output, improve system operation quality;
7, support RS232 communication protocol, simple and practical ProTuner debugging software, complete set
parameters, on-line monitoring and other functions;
5. samples:

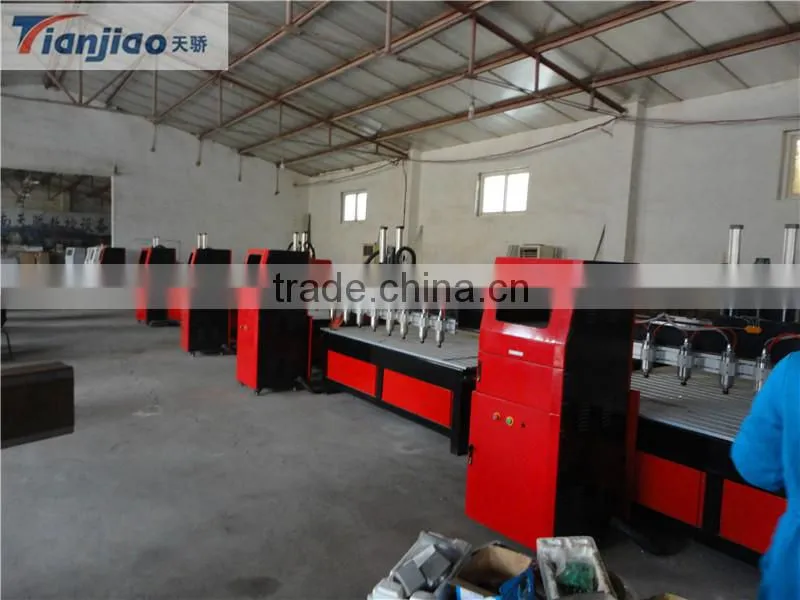

Jinan Tian Jiao Machinery Manufacture Co.,Ltd. is specialized in developing and manufacturing Mechanical CNC router (woodworking router, advertising router, stone engraving router), CNC Laser machine, Plasma cutting machine, cutting plotters, metal mould engraving machine and other cnc machines. We supply global market the high quality CNC equipments. We are leading company in this field and being confident in offerring the best service and best quality.
1.Whole machine for 2 year
2.during gurantee term, if parts worned not by manmade, will send a new one after get the returning old parts
3.exceed gurantee term, supply you parts at cost price
4.all lifespan technical support
NOTE: gurantee terms, not including the wearing parts
Please contact me:
sales manager: Isabella
skype: xihong61
wechat: isabella8689
