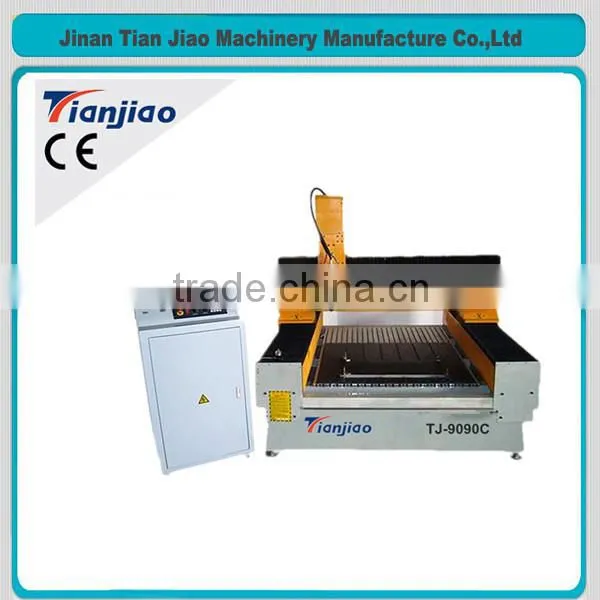

3Kw spindle stone marble cutting machines
Product Description:
1,X,Y,Z three-axis all the imported square orbits, heavy loading, stable working, long lifetime.
2,X,Y,Z three-axis all have the waterproof, dustproof system, can prolong the life time of orbit and balls crew.
3,Water cooling constant torque spindle with the imported bearings, high power and low noise.
4,Well compatibility, compatible with Type3/Artcam//Castmate/Wentai and many other software.
5,Double direction cutters cooling system can prolong the lifetime of cutters.
6,Full shielded, high flexility, uneasy distorted cable and imported electronic components the components guarantee the stability of operating the machines.
7,The transducer with stable output signals
8,Fully shield, bending circuitry, and imported electronic components
9, Adopt imported ballscrew
This series of models mainly used for heavy weight of the tile, bluestone, marble, granite, white marble, sandstone, glass engraving, metals engraving and so on.
technical parameter:
Performance parameter |
TJ-1325 |
X,Y Working area |
1300mm*2500mm |
Z Working area |
>120mm |
Resolution ratio |
0.03mm |
Reposition precision |
0.02mm |
Power(not including spindle) |
800W |
Max feeding height |
120mm |
Operation code |
G CODE |
Surrounding software |
Windows98/2000/xp |
Max carving speed |
6m/min |
Max speed |
8.8m/min |
Working voltage |
AC380V/50Hz |
Spindle power |
3KW water cooling spindle |
Spindle rotating speed |
0-24000rpm/min |
Drive motor |
Stepper motor |
control system |
DSP |
drive system |
Yako driving system |
| inverter | Fuling inverter |
Engraving samples:
Main parts:
Packing&Shiping:
Our company:
After-sale service:
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided
4.Spare parts replacement and repair service provided.
Contact:
Sale Manager:sara
Tel: +86-18366192210
Skype: live:sara5211-2
TradeManager:cn1001481911
