mini crafts stone/soft metal cnc carving PCB milling machine with water tank
Specification:
1. size 400*400mm
2. water tank
3. 2.2kw water cooling spindle with water tank
4. table moving, gantry is stable
Video link:
/watch?v=8XZiiHo6Q68

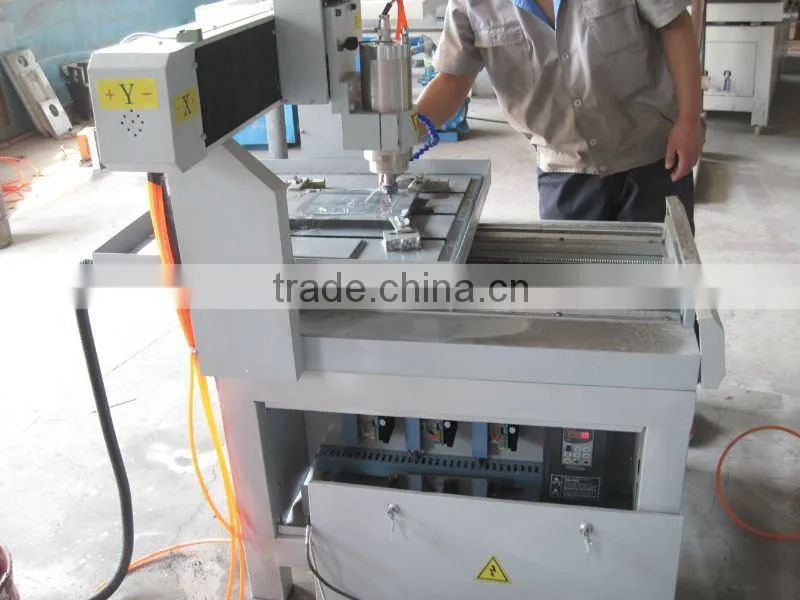

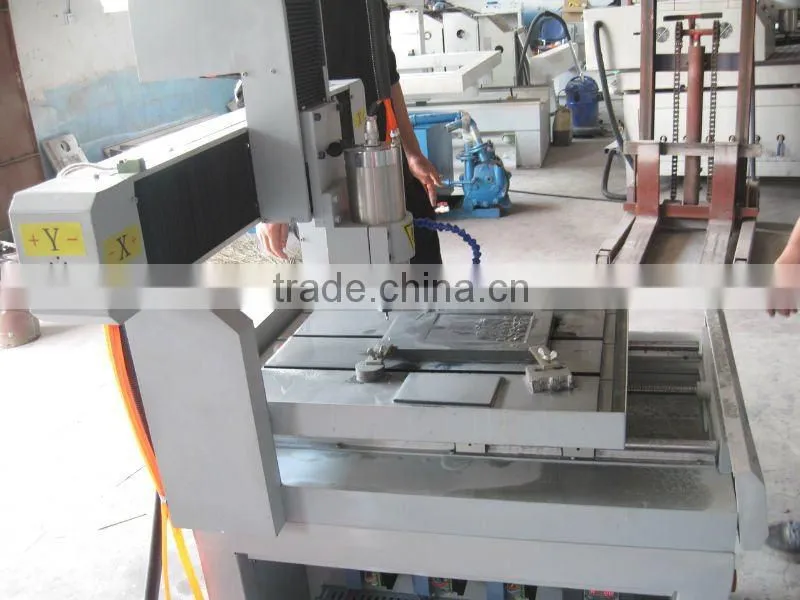

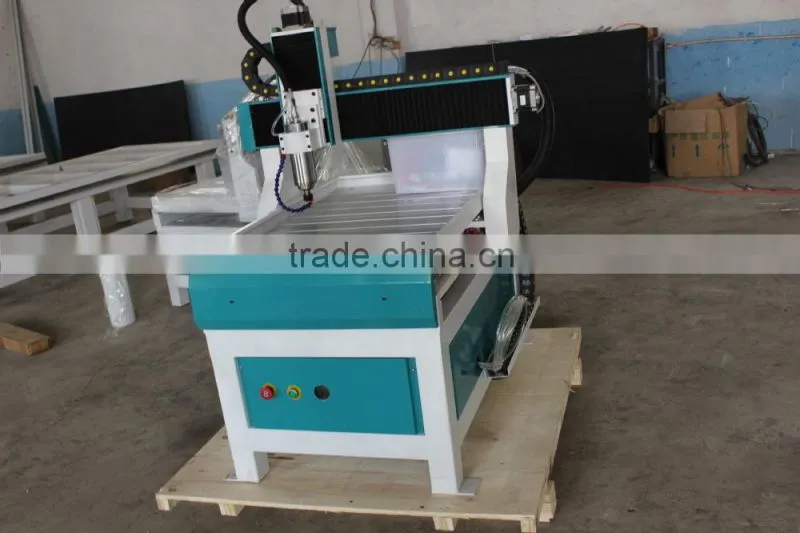

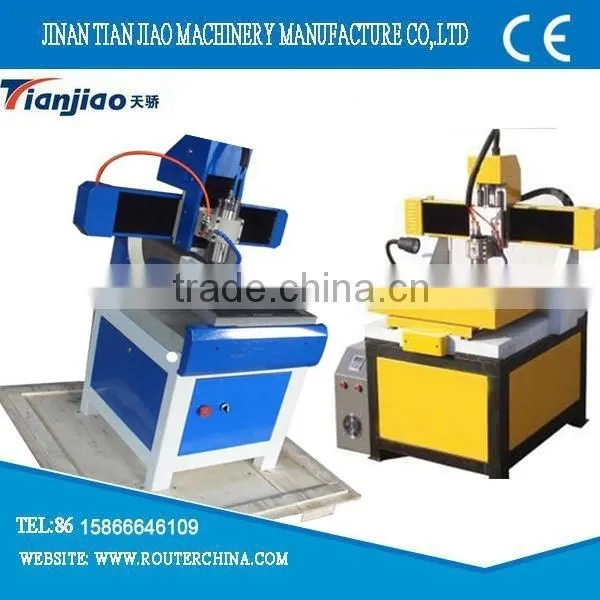

1.Picture show
2.Application
This series of models mainly used for thin stone black,stone craft. It can process the bluestone,marble,granite,
white marble,sandstone,glass engraving,metals engraving and so on .
3. Hot sale jade engraving machine 6090
Configuration:
1.2.2kw water cooling spindle
2.stepper motor 450A
3.Leadshine 542 driver
4.square tube welding
5.square orbit .
6.Ballscrew transimssion
7.Original TYPE3 UCANCAM software

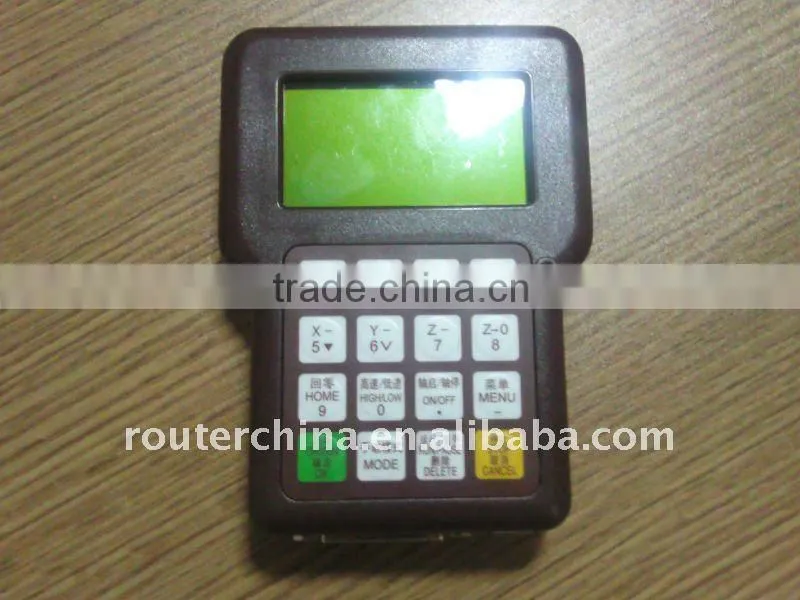

8.DSP Control system (NC studio control system)
3. Hot sale jade engraving machine
Features
1.Adopt Germanic double nut ballscrew and imported orbit.
2.Break point memory mode to make sure continuous working after electronic drop or other postpone
situation.
3.Special saving mode of different pints
4.Gantry mode movement is more durable and will not distorte after long time use and the reposition
precision is much better.
5.It can use many softwares, such as:type3/artcam/castmate/wentai/coreldraw/CAD/CAM and so on.
6.High spindle and high efficiency, max speed can reach up to 8.8 meters/min.
7.High power frequency water cooling spindle, main parts are all imported, low noise, high
power,
long lifetime.
8.Double motors driving, high driving strength, high precision transmission,so it can guarantee no
distortion and vibration when it works for long time.
4. Parameters:
Performance parameter |
TJ6090 |
X,Y Working area |
600mmx900mm |
Z Working area |
>120mm |
Table size |
720mmx1200mm |
Resolution ratio |
0.03mm |
Reposition precision |
0.02mm |
Power(not including spindle) |
800W |
Max feeding height |
120mm |
Operation code |
G CODE |
Surrounding software |
Windows98/2000/xp |
Max carving speed |
6m/min |
Max speed |
8.8m/min |
Working voltage |
AC380V/50Hz |
Spindle power |
2.2KW water cooling spindle |
Spindle rotating speed |
0-24000rpm/min |
Drive motor |
Stepper |

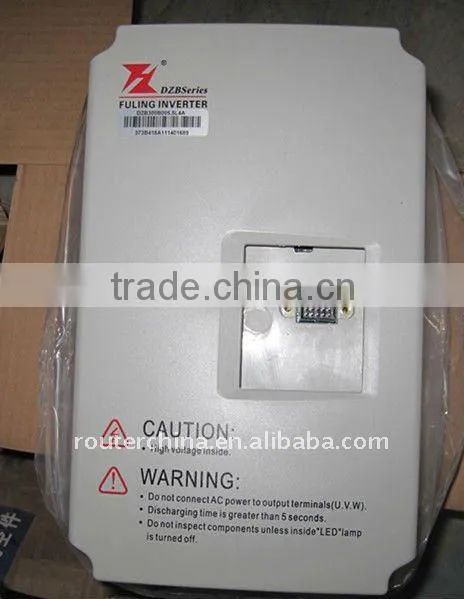

5.Parts

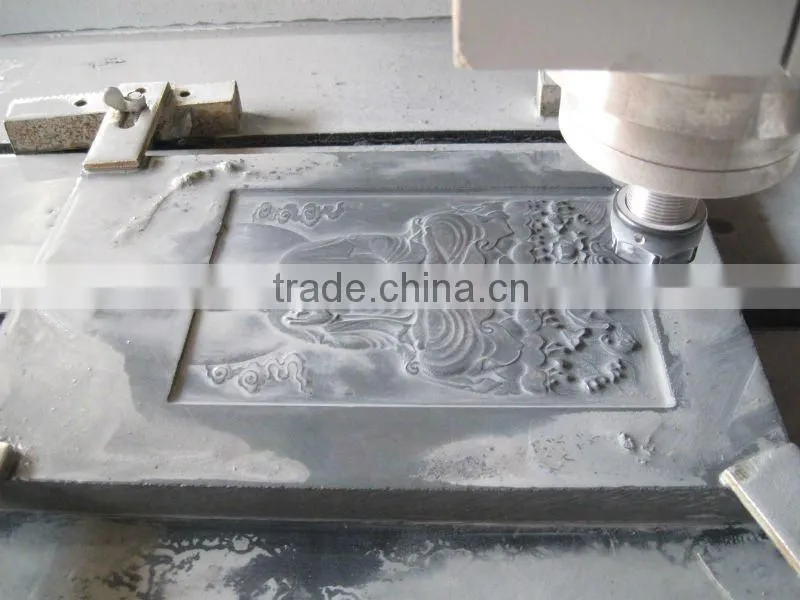

6.Samples
Can make table moving kind
Jinan Tian Jiao Machinery Manufacture Co.,Ltd. is specialized in developing and manufacturing Mechanical CNC router (woodworking router, advertising router, stone engraving router), CNC Laser machine, Plasma cutting machine, cutting plotters, metal mould engraving machine and other cnc machines. We supply global market the high quality CNC equipments. We are leading company in this field and being confident in offerring the best service and best quality.
Our service:
before order:
1.more communication to get more information to check the very model and configuration
2.more price project for your selection
3.patient for every of your question
After-sale
1. one year guante term,during term, supply parts for free after returning
2.beyond gurantee term, provide parts at cost price
3. 24 hours on line for your problem
vide engineer come to install for you service
