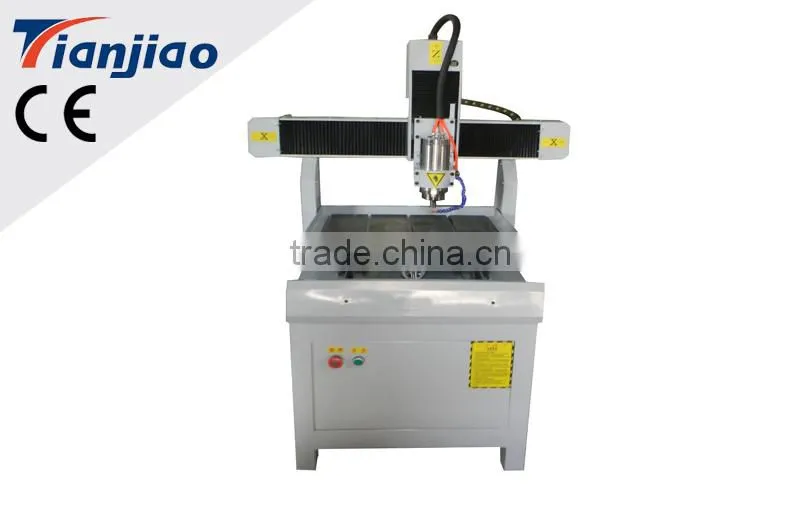

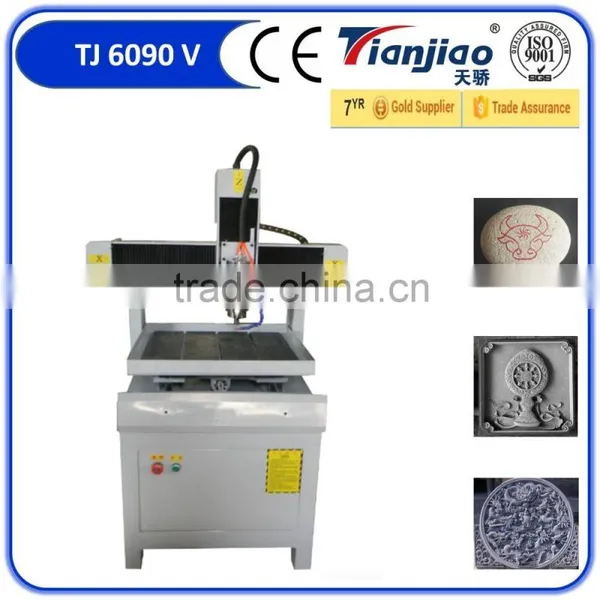

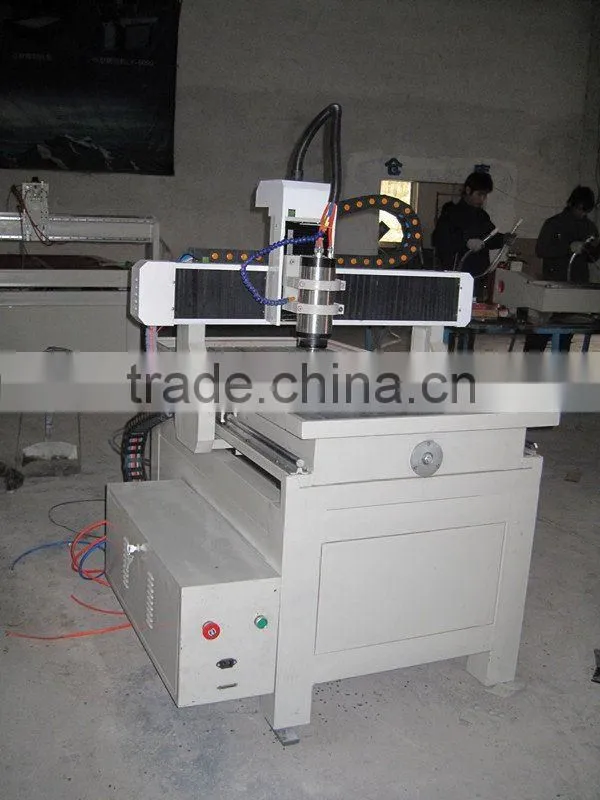

Chinese stone engraving machine TJ 6090 S

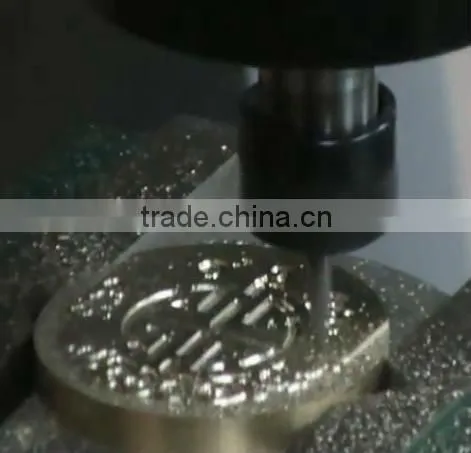

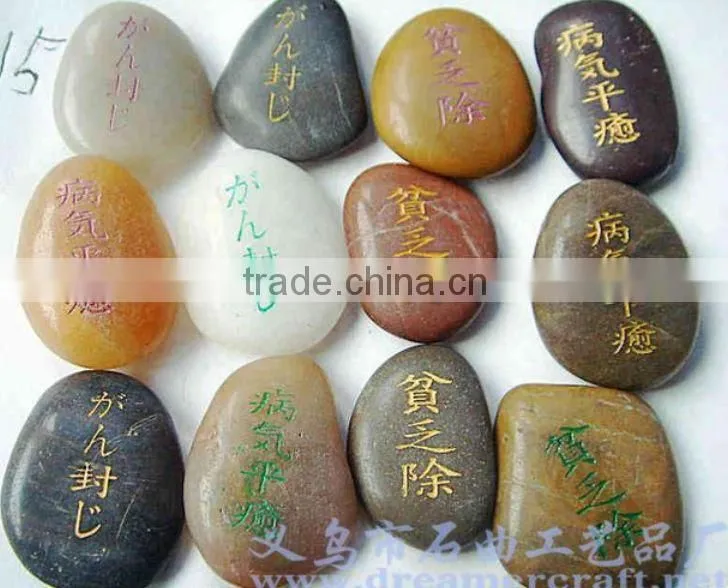

This machine is widely used in advertising industry, such as acrylic cutting, jade ,glass and marble engraving, sign making ,department nameplate ,chest badge ,architectural model, ABS plate.
Product advantages:
1. CNC router machine adopting linear square guide rail which can adjust gap and can change track,
the life can be no less than 10 years. Comprehensive performance is the best.
2. Cast iron platform with the box structure to ensure high rigidity and precision.
3. High performance, high power spindle motor, low noise, strong cutting and engraving.
4. Compatible Type3/Artcam/Castmate/Proe/UG/Wentai etc. software.
5. Have power restored, power outages continued carving, processing time forecast etc. functions,
the real human design.
6. X Z axis adopts popular dustproof and waterproof structure, conducive to maintenance.
7. Adopt advanced CNC system (NCstudio or DSP control system), has break point memory mode to make sure continuous working after electronic drop or other postpone situation.
Technical parameters:
Model |
TJ 6090S |
Machine body |
Whole cast iron |
Work dimensions |
600*900*80mm(23.6*35.4*3.1") |
Max. feeding height |
80mm or bigger |
Working table |
Aluminum T-slot with water tank |
Guide way |
Imported HINWIN Cylinder linear guideway |
Driving mode |
Ball screw |
Mechanical precision |
0.01mm |
Repositioning accuracy |
0.03mm |
Max. Speed |
8m/min |
Working speed |
0-5m/min |
Driving motor |
Stepper motor |
Max. Power consumption |
3.5KW |
Software |
Type 3, Art cut, Art cam and Ucancam software |
Voltage |
AC 220/50Hz or 110V |
Spindle |
3KW variable speed, water-cooling spindle |
Spindle speed |
0 - 24,000rpm/min |
Blade diameter |
3.175mm, 4mm, 6mm,8mm |
Control system |
DSP controller system with USB interface |
Command |
G code, u00, mmg, plt |
Certification |
CE, FDA,ISO |
Runing circumstance temperature |
0-45 °C |
| Relative humidity | 30-75% |
Net weight |
220kg |
Options:
1. Bigger spindle--bigger power, large force.

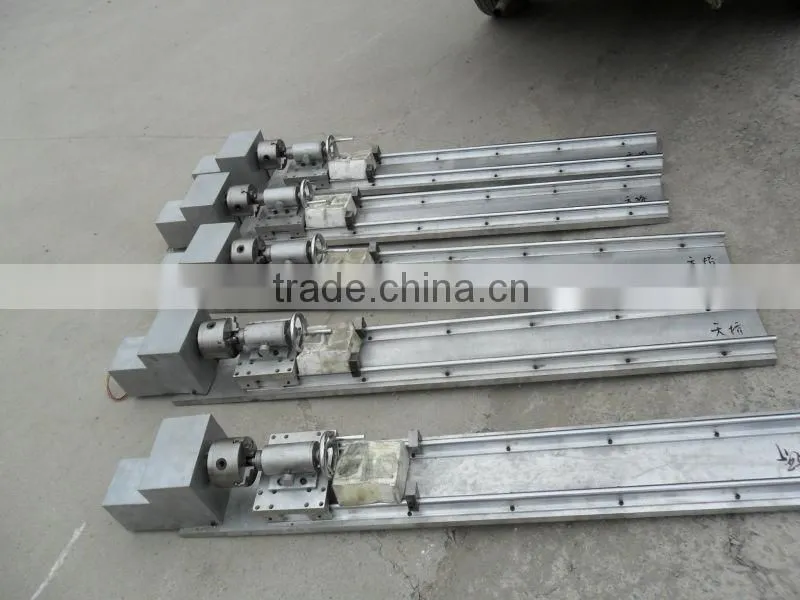

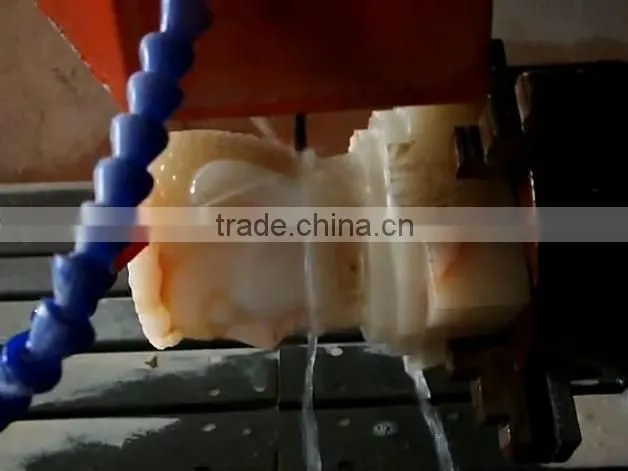

2. Rotary axis-for cylindrical materials engraving or 3D engraving.
- One year machine warranty ,during the warranty period , if any parts broken,
we change a new part for you freely.
- All machines are debugged before shipment.
- Lifetime technical support and service.
- 24 hours on line or phone or by email technical support.
- We offer detailed machine manual, software manual, controller manual.
- Our factory make a vivid traing CD.
- Maintenance free of charge during lifespan.
- Free training course at our plant.
- Welcome to visit our factory, learn machine face to face.
Jinan Tian Jiao Machinery Manufacture Co., Ltd. specializes in developing and manufacturing Mechanical CNC routers, CNC Laser machines, Plasma cutting machines, cutting plotters and other machines. We provide global market with high quality CNC equipment. We are a leading company in this field, being confident in offering the best service and best quality.
With many years' hard work and perfect management system, we have classified our products into several categories: woodworking machines, advertising machines, ATC machines, stone working machines, plasma cutting machines, laser machines and plotters. We can also customize products and offer OEM service. Our products have been exported to many overseas countries, gaining good comments.
We hope to be your good, long-term and honest partner. Wish you can get joy and satisfaction from our products and service.
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can
recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can
also help you by “Team viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the
standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 1 year guarantee, fail parts will be replaced for free if the machine under
“ normal operation”.
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial
invoice, B/L, and other certificates required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be
20 - 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange
the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
