acrylic flame polishing machine

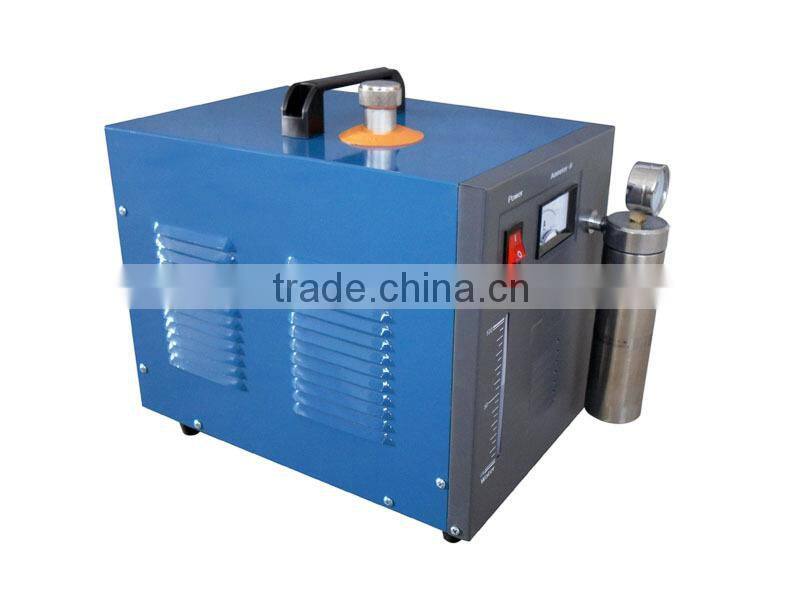

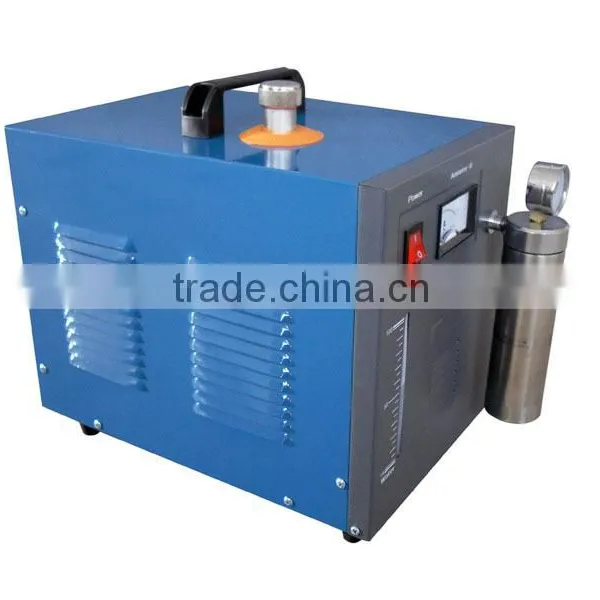

Picture show:
APPLICATION
1). Synthetic Glass Industry
Synthetic glass ( acrylic ) polishing. High temperature flame can beautifully wrought the organic handicraft article.
2). Electronic Industry
IC encapsulation
3). Semiconductor
4). Nonferrous welding ,braze welding
In the application of welding nonferrous metal ,oxygen is not necessary by using
Oxy hydrogen Generator. It can saved more than 30% cost compared with the other way
with the same-materials and same workloads .
a. Welding all kinds of chain and string of platinum,gold ,silver,copper,ect.
b. Accumulator lead and tin poles fusion.
c. Precision engineering
5). School laboratory
Providing convenient ,safe and oxy-hydrogen flame.
Parameters:
Power |
AC220V 350W |
Dimensions |
35*22*30mm |
Weight |
11kg |
Gas flow |
50-70l/h |
Torch |
1 set of torch |
Electrolyzing case |
Single case, 3 layers |
Consumed fuel |
Water, from best to ordinary are: distilled water, purified water, cold boiled water, tap water, and , mineral water. |
Safety fittings |
Innovation backfire-proof fittings, intellectualized pressure switch,safety gas releasing valve and multilevel explode-proof design. |
Work environment |
0-50 degree centigrade well ventilated. Better 50cm above the ground. |
MAINTENANCE & WARNING
1), The electrolyte is alkaline and may hurt skin and eyes. Avoid direct contact while preparing electrolyte; let out the remaining gas before adding water to avoid the electrolyte spurting out. If stained on skin or in eye carelessly, wash with lots of water.
2), After the first time of use, only water-the “fuel“ need to added timely. Don‘t add electrolyte.
3), Theoretically, the electrolyte can be used permanently. However after about 3
months of operation it will because of losing efficacy. To change electrolyte, open
the outlet in the bottom of the generator and drain off the dirty electrolyte, wash
the electrolyte case with pure water, then screw on the outlet. Prepare and add new
electrolyte. This is to keep the electrolyte case clean, thus avoiding the erosion
of electrodes.
4), The water level should not excess the “high” line, or the liquid in gas filter
may overflow, if so, pour out the excessive electrolyte. The best water level is
close to “high” line.
5), Water in rubber pipe may cause the flame turn red or yellow. If so, take off the
torch and check the gas filter to drain the water out of the pipe.
6),Avoid gas leak at the connecting parts. Change the rubber pipe in time if it aged.
7), The controlling electro circuit of the generator is designed specially.Do not
disassemble it.
8), Do not let the flame towards human or combustible.
9), Cold boiled water or tap water can be used as substitute of distilled water, but
mineral water is not suitable.
10),If backfire occurs (even with exploding), do not panic. Destructive test proves
the protective design can assure the safety of the operator. Backfire may be caused by
improper operation, gas leak, torch malfunction or higher pressure.
Check the pipe, add backfire proof fitting or change a torch may solve the problem. Before that, it’s better to
contact the manufacturer for technical consultation.
Attention:
Danger
KOH is dangerous , please do not eat it
The temperature is up to 2800℃,when burning,please put it in the
safe place.
Do not operate the machine while your hand is wet,be careful
electric shock.
Warning
When abnormal things happened,such as abnormal noise,smell,smog,
quite high temperature,electric leakage,please cut off power supply immediately.
Do not repair it by yourself, you should contact us.
The above cover, please do not load metal pieces.
Please use the grounded line socket.
Forbid ignite while no air pressure
