Specifications
high speed automatic wood lathe with CE and best pricedouble axis
Max working diameter 160 mm
working length 1500 mm
DSP CE
high speed automatic wood lathe with CE and best price
1. Brief Introduction for wood lathe :
This is widely used in advertisement, furniture, and doors engraving and cutting .

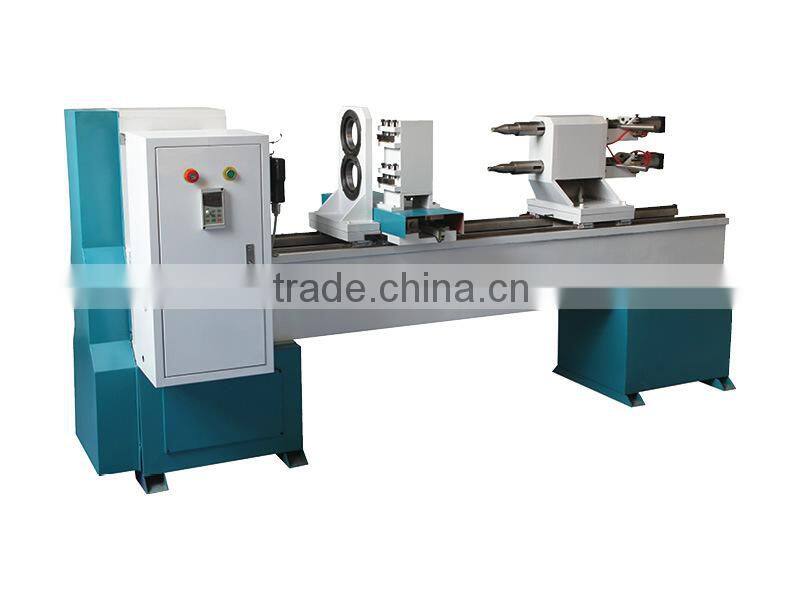

2. Picture of Wood Lathe
nical paraments for wood lathe
Model |
TJ 1516 |
Max working diameter |
160 mm or option |
Working length |
1500 mm or option |
Number of axis |
Single or double , option |
Max feed rate |
200cm/min |
Min setting unit |
0.01 cm |
Spindle |
Option |
Air pressure |
0.6-0.8 Mpa |
Working supply |
380V |
Machine size |
3100X1100X1700 mm |
Machine weight |
1500 KGS |

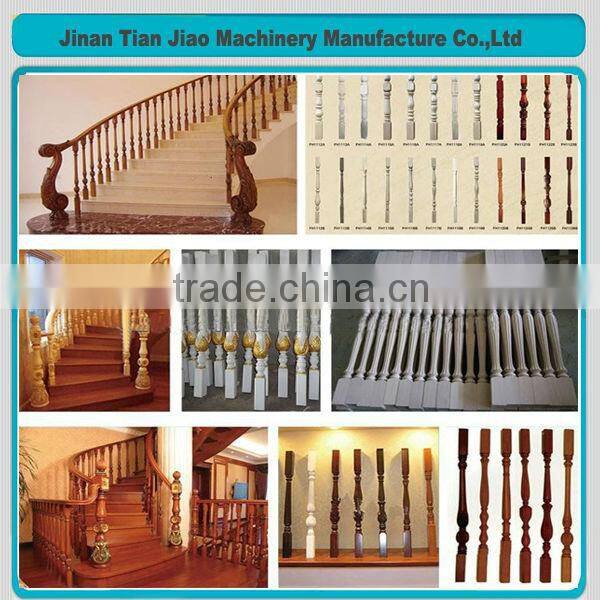

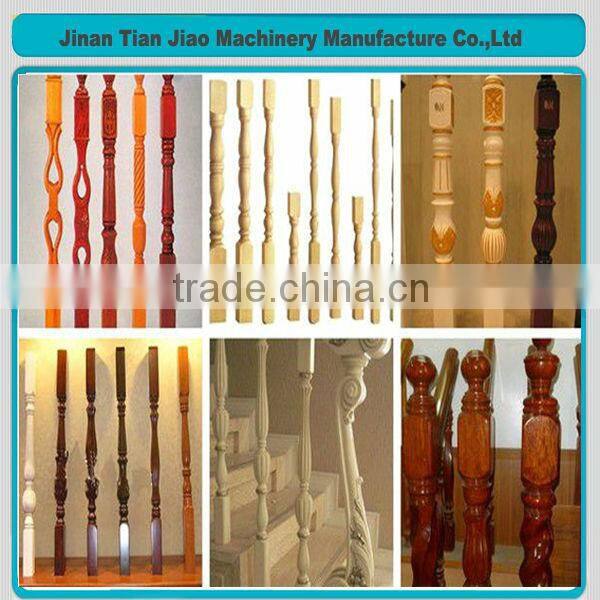

4.Suitable Materials and Industrial Applications
Staircases,stairway balusters,stairway newel posts;dining table legs;end table legs;sofa table legs;bar stool legs;
chair legs;chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts;baseball bats and so on

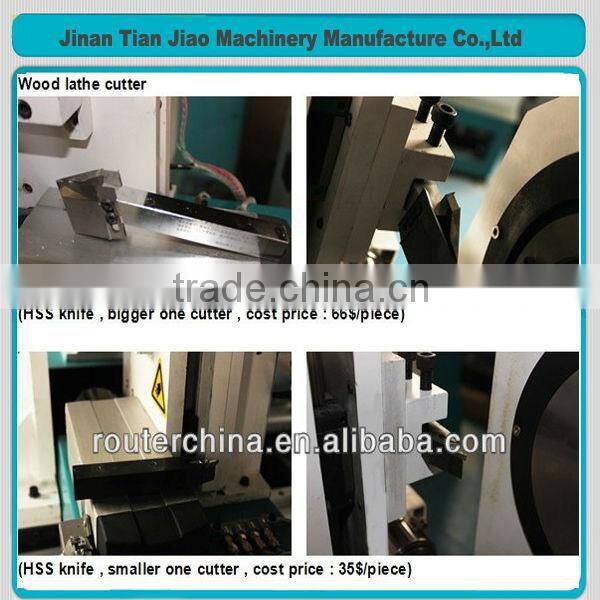

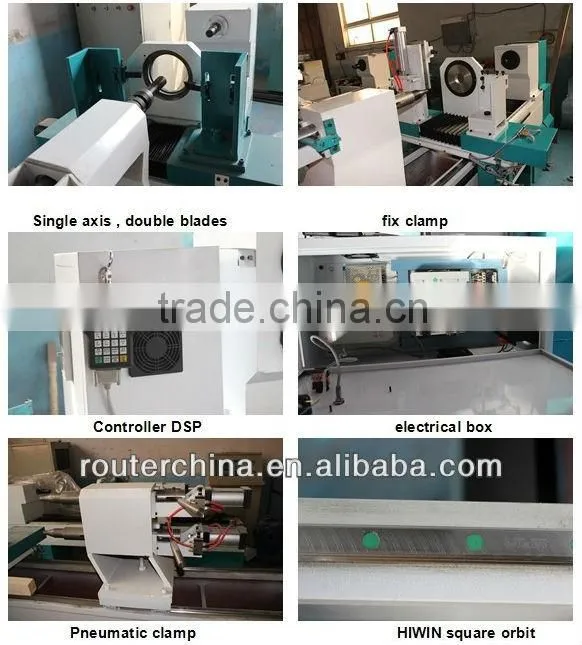

5.Main Parts for wood lathe

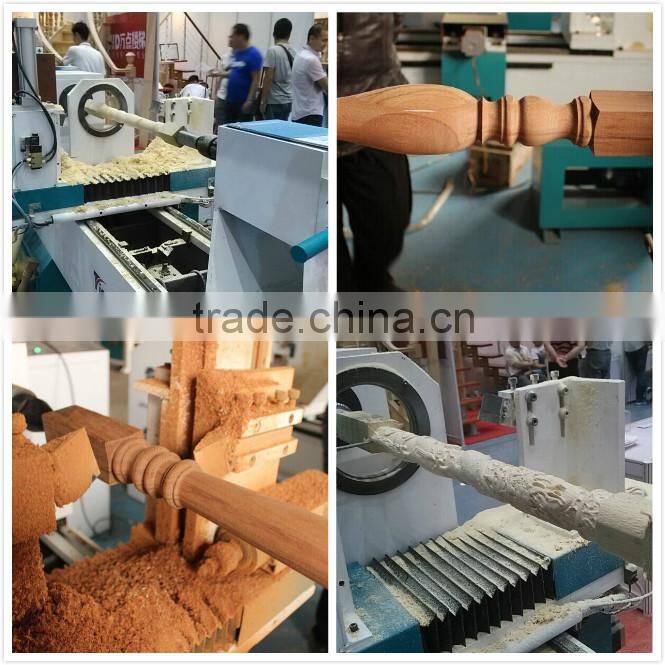

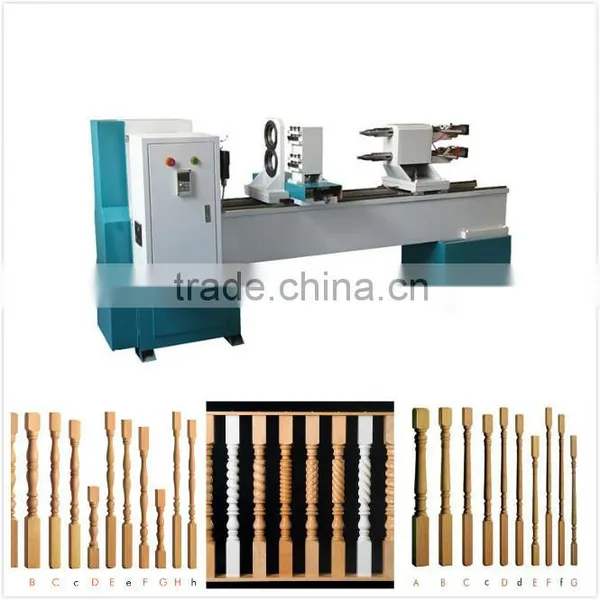

6.Sample Processing Show for wood lathe TJ 1516
7.The advantage of wood lathe TJ 1516
1.Main control system: adopt omron control system , so guaranteed the working stability .
2.Operating system:Friendly simple operation interface , english suggestion and simple setting method .
3.Motor System: domestic famous brand stepper motor to ensure the precision .
4.Transmission System: Hiwin square rail and ball screw to control the linear error effectively .
5.Inverter System:adopt import inverter system to adjust the rotation speed and solve the vibration problem of timber .
6.Spindle System:Divided into the single axial and biaxial, the chuck can be mounted to the system and biaxial can
produce two pieces at the same time .
7.Assistant System:High weight lathe structure to ensure the stability and reduce the Vibration .
9.Factory Show:
12.After-sale service
To provide clients with all aspects of after-sales service.
Our company promises:
One year free warranty for the whole machine , lifelong maintenance.
Customer response service time within 12 hours.
After the expiry of the warranty , we continue supply life-long maintenance services.
After the expiry of the warranty , still to provide a wide range of software and hardware support ,
enjoy free lifelong upgrades . And supply the parts at agent price
