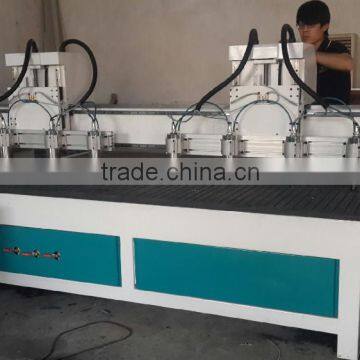

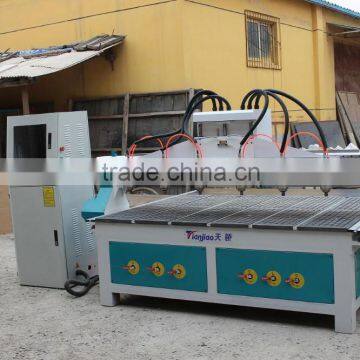

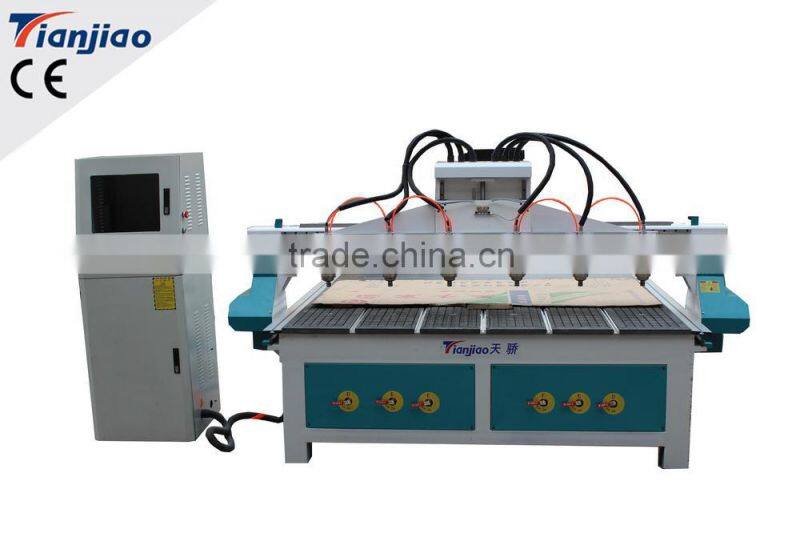

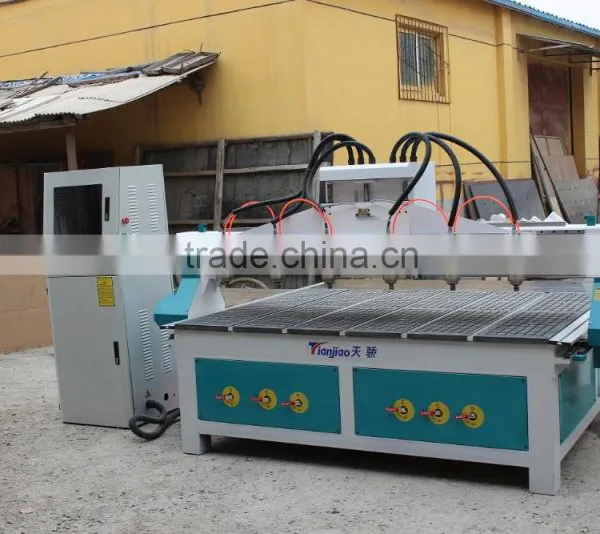

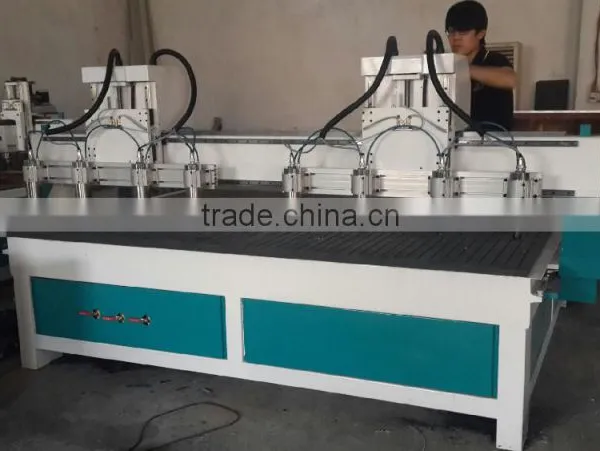

one head eight spindle hollow relief embossment carving machine
Company Introduction :
Jinan Tian Jiao Machinery Manufacture Co., Ltd. specializes in developing and manufacturing Mechanical CNC
routers, CNC Laser machines, Plasma cutting machines, cutting plotters and other machines. We provide
global market with high quality CNC equipment. We are a leading company in this field, being confident in
offering the best service and best quality.
We hope to be your good, long-term and honest partner. Wish you can get joy and satisfaction from our
products and service.
Product information :
Advantage :
1: working area 2.4x3 m suit for wood , kitchen these furniture work needed
2: cast steel machine structure , guarantee the machine stability
3: 2.2KW water cooling spindle x8 , the 8 pieces spindle work at the same time
4: aluminum working table with clamp system
Machine equippment
Cast steel structure, 2400X3000 mm working area
Hiwin square orbit , rack& pinion for X axis and Y axis, ball screw for Z
Ncstudio control system , Artengraver Software
2.2KW water cooling spindle x 8
850W YASKAWA servo motor
aluminum working table
20cutters( φ3.175 , φ6 , φ12.7), 3 collets
Technical paraments
Machine model |
TJ 2530 |
XY working area |
2500*3000 mm |
Z working area |
200 mm |
Table size |
2800*3500 mm |
Max. speed |
60 m/min |
Max. working speed |
30 m/min |
Working delicacy |
0.05 mm |
Table |
vacuum working table |
Command |
G code*u00* mmg*plt |
Surrounding for software |
Windows98/2000/xp |
power |
AC380 3 phases |
Spindle |
2.2 KW water cooling spindle x 8 |
Speed of spindle |
0-24000 rpm/min |
Work mode |
servo motor , Y axis adopt double motors to drive . |
Structure |
Steel structure, square orbit, ball screw for z axle, gear-wheel for x axle and y axle |
Engraving software |
Artengraver |
Control software |
Ncstudio |
Guarantee
1: one year , freely guarantee
2: during one year , if any spare part broken in machine , our factory freely change a new one for you
3: longlife time freely provide technical support
after sale service
1: with machine , have detailed machine manual , software manual , controller manual , especially for new clients ,
2: our factory make a vivid traing CD
3: 24 hours , on line or phone , technical support
4: welcome visit our factory , learn machine face to face
Sample
