rubber pipe u clamp clip
USD $0.1291 - $3.254
/ Piece
3000 Pieces(Min.Order)
- 0 per Month
- Ningbo poet
- T/T D/P D/A
You May Like
-
FK-ETD54 clip clamp,material sus301 stainless steel,Surface Cleaning，Easy to assemble, stable clamping force.
-
RM14 Clamp, RM14 Double PIN clip , RM14 core clamps,wholesale inventories, quality assurance, delivery fast. Can provide customers with matching Core and Bobbin
-
RM12 transformer clamp，RM12 with PIN, RM12 core clamps,wholesale inventories, quality assurance, delivery fast. Can provide customers with matching Core and Bobbin
-
DIN3352 F4 Resilient Non-rising Gate Valve
-
High Quality Low Price Oil&Gas Pipe Fitting Clamp Metal Pipe External Pipe Line Up Clamp Cage Type Clamp
-
manual type external line up clamp made in China with stocks
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | JLIBS | Model Number: | M8+10 |
| Usage: | Pipe Clamp | Material: | Metal | Structure: | Other, Welding clamps |
| Standard or Nonstandard: | Standard |
Product Description
Specifications

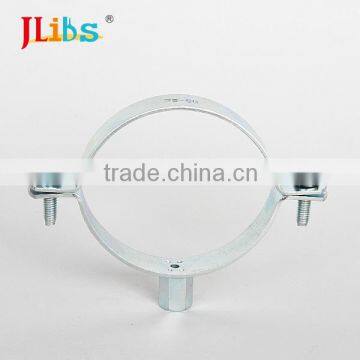

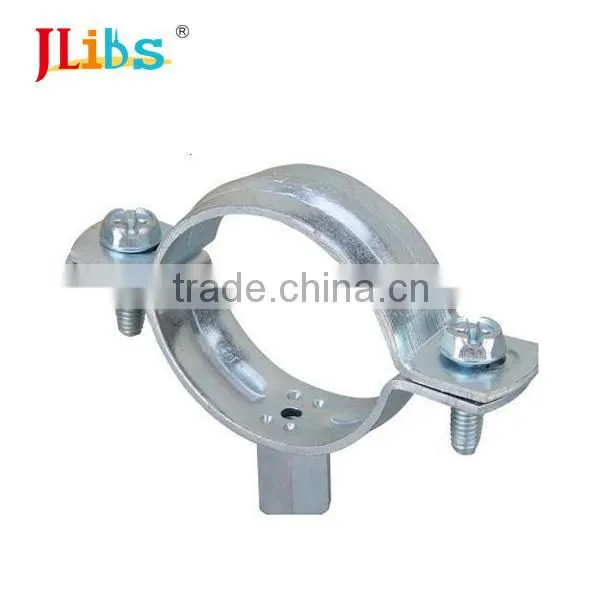

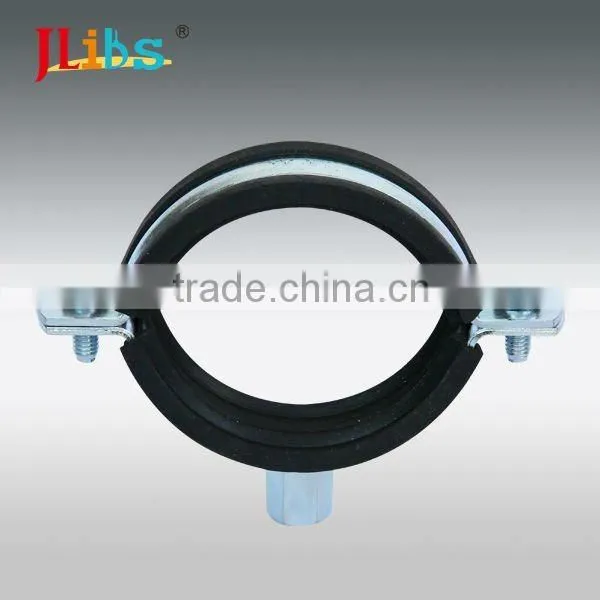

metal pipe clamp M8+101)meterial:iron sheet
2)both close
3)the surface has bone
4)the rubber thickness:4.0mm
Sample Policy:
We are very glad to supply samples for your fully test, and our samples will be free for reliable buyers with valid contact information,including Verified Emails,Tel and Company Address.
It's from August 1st - 30th only, so don't miss out.
It's from August 1st - 30th only, so don't miss out.

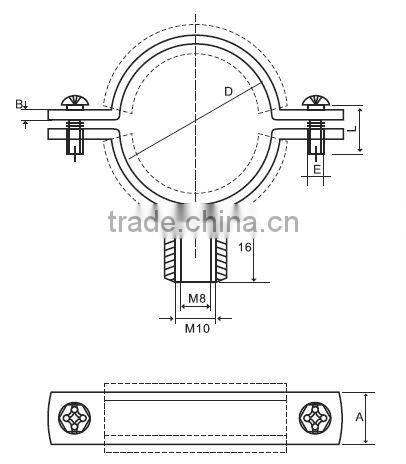

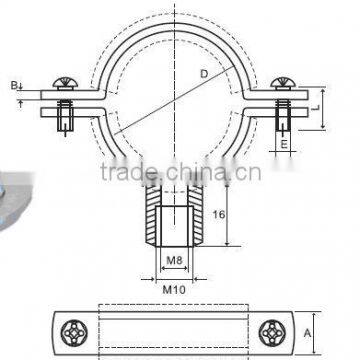

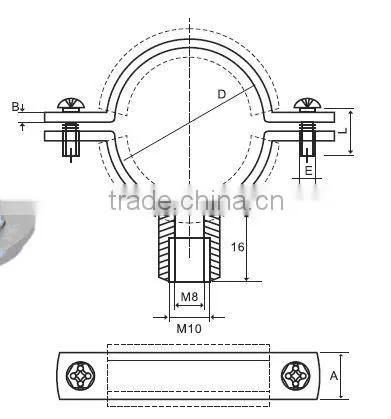

| metal pipe clamp M8+10 WITH RUBBER | ||||||
| REFERENCE | Ømm | Dmm | “ | BOX/CARTON | BOX/CARTON | A*Bmm |
| 147018 | 18 | 15-19 | 3/8" | 50 | 10 | 20*(1.8~2.0) |
| 147022 | 22 | 20-25 | 1/2‘ | 50 | 10 | 20*(1.8~2.0) |
| 147028 | 28 | 26-30 | 3/4“ | 50 | 10 | 20*(1.8~2.0) |
| 147035 | 35 | 32-36 | 1" | 50 | 10 | 20*(1.8~2.0) |
| 147040 | 40 | 38-43 | 11/4" | 25 | 10 | 20*(1.8~2.0) |
| 147048 | 48 | 47-51 | 11/2" | 25 | 10 | 20*(1.8~2.0) |
| 147054 | 54 | 53-58 | 25 | 10 | 20*(1.8~2.0) | |
| 147060 | 60 | 60-64 | 2" | 25 | 10 | 20*(1.8~2.0) |
| 147070 | 70 | 68-72 | 25 | 10 | 20*(1.8~2.0) | |
| 147075 | 75 | 75-80 | 21/2" | 25 | 10 | 20*(1.8~2.0) |
| 147083 | 83 | 80-86 | 25 | 10 | 20*(1.8~2.0) | |
| 147090 | 90 | 87-92 | 3" | 25 | 10 | 20*(1.8~2.0) |
| 147100 | 100 | 99-105 | 31/2" | 25 | 10 | 20*(1.8~2.5) |
| 147110 | 110 | 107-112 | 25 | 10 | 20*(1.8~2.5) | |
| 147115 | 115 | 113-118 | 4" | 25 | 10 | 20*(1.8~2.5) |
| 147125 | 125 | 125-130 | 25 | 10 | 20*(1.8~2.5) | |
| 147133 | 133 | 132-137 | 25 | 10 | 20*(1.8~2.5) | |
| 147140 | 140 | 136-142 | 5" | 25 | 10 | 20*(1.8~2.5) |
| 147160 | 160 | 159-166 | 6" | 25 | 10 | 20*(1.8~2.5) |
| 147200 | 200 | 200-212 | 25 | 10 | 20*(1.8~2.5) | |
| 147250 | 250 | 248-252 | 25 | 10 | 20*(1.8~2.5) | |
| 147315 | 315 | 312-318 | 25 | 10 | 20*(1.8~2.5) | |
Application:

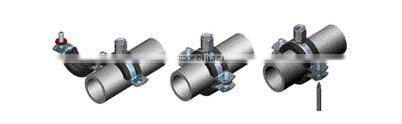

Used for mounting of pipes to the walls ( vertical / horizontal ) , ceilings and floors
For Suspending Stationary Non-Insulated Copper Tubing Lines
Being fasteners for pipe lines such as heating, sanitary and waste water pipes;to walls, ceilings and floors.Side screws are protected against loss during assemble with the help of plastic washers
