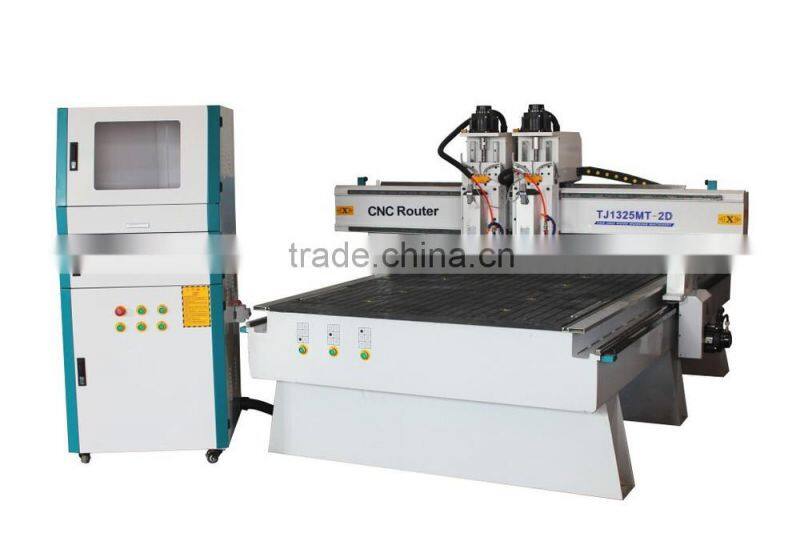

cnc engraving machine with double heads
advance :
two spindles can work at the same time , working efficiency is 2 times than single spindle . if use any one single spindle , the working area also up to 1300x2500 mm .
Technical paraments :
T slot Cast steel structure, 1300X2500 mm working area , square orbit, ballscrew for Z axis,
rack & pinion for X axis and Y axis, Ncstudio control system , Ucancam Software , 4.5KW air
cooling spindle / Italy HSD air cooling spindle , stepper motor ,vacuum table with vacuum pump , 3 KW dust collector , 20cutters( φ3.175 , φ6 , φ12.7), 3 collets
Technical paraments :
Machine model |
TJ 1325 |
XY working area |
1300*2500 mm |
Z working area |
200 mm |
Table size |
1600*3100 mm |
Max. speed |
60 m/min |
Max. working speed |
30 m/min |
Working delicacy |
0.05 mm |
Table |
vacuum table with vacuum pump |
Command |
G code*u00* mmg*plt |
Surrounding for software |
Windows98/2000/xp |
power |
AC380 3 phases |
Spindle |
4.5KW air cooling spindle / Italy HSD |
Speed of spindle |
0-18000 rpm/min |
Work mode |
stepper motor , Y axis adopt double motors to drive . |
Structure |
Steel structure, square orbit, ball screw for z axle, gear-wheel for x axle and y axle |
Engraving software |
Ucancam V9 |
Control software |
Ncstudio option DSP |
