Vacuum Table Piece NC Control Two Rotary Spindle Wood Working Cnc Router

Jinan Tian Jiao Machinery Manufacture Co., Ltd.

US$ 4,000 - 8,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name TJ

Model Number 1340

Voltage 380v

Power(W) 7kw

Dimension(L*W*H) 410*160*178

Weight 2000kgs

Certification ce

Warranty 2 year

After-sales Service Provided Engineers available to service machinery overseas

Vacuum table piece NC control two rotary spindle wood working cnc router

skype anna886691

whatsapp 008615966606596

wechat anna88669

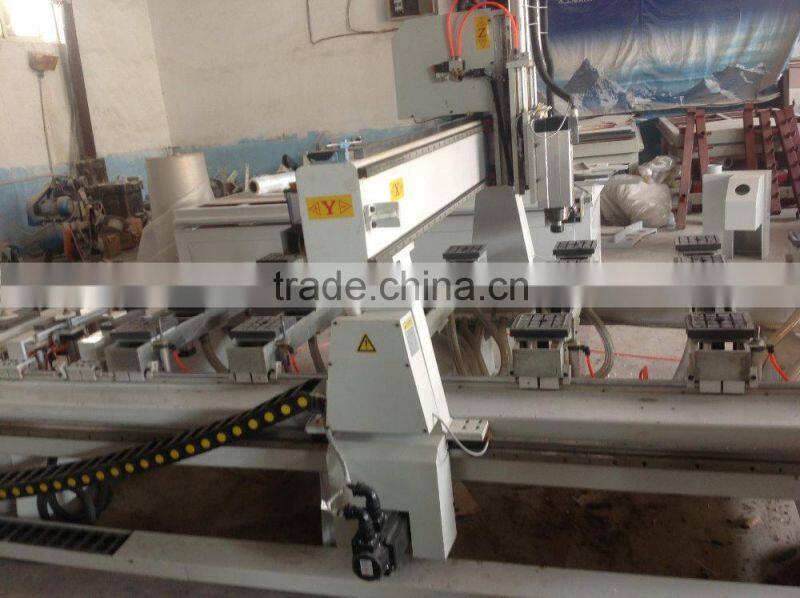

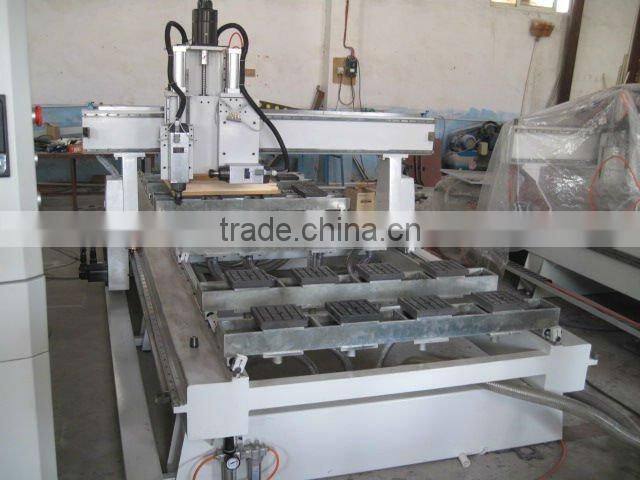

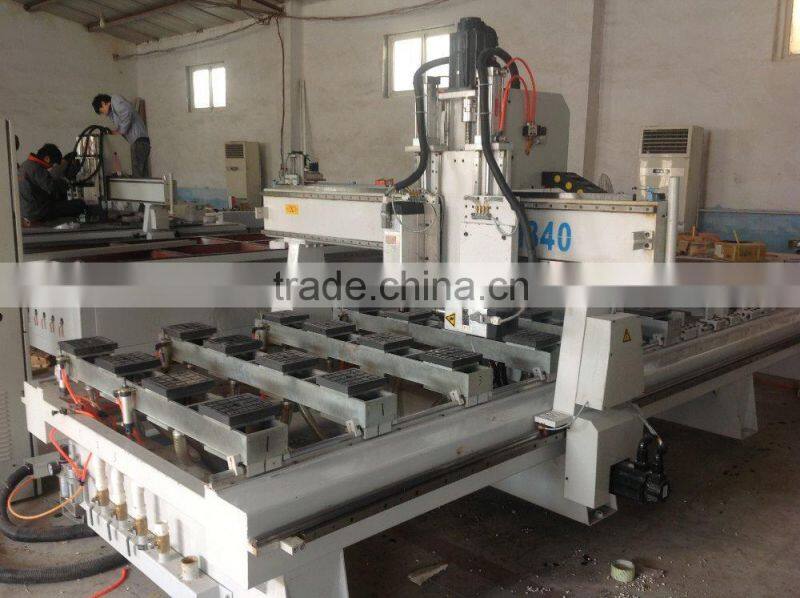

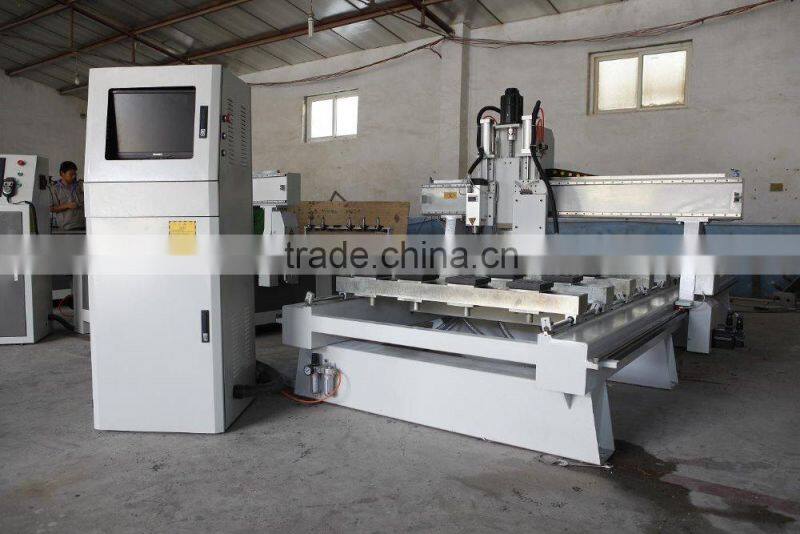

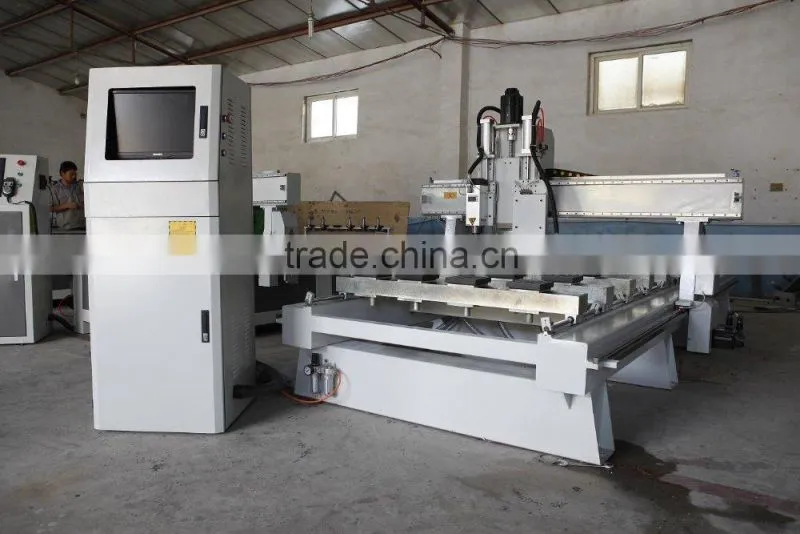

Main machine pic

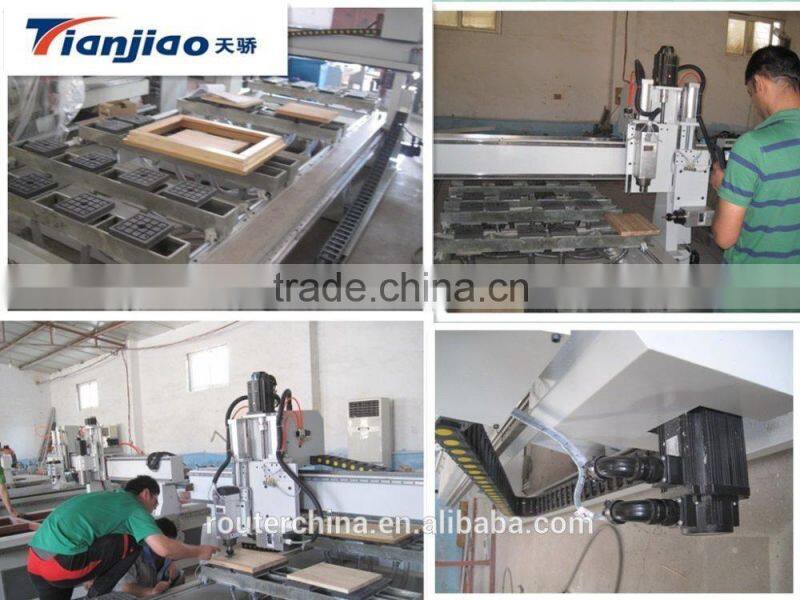

Details

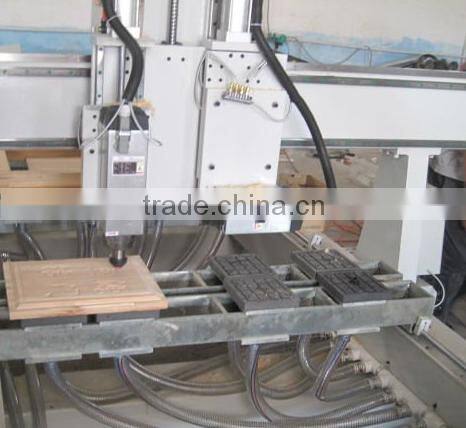

Two spindle one is vetical another is horizonal

JAPAN YASKAWA SERVO MOTOR 850W

Germany TBI ballscrew

Hiwin square orbit

Heavy square tube welded body (150*250mm)

8mm thickness Gantry

vacuum table piece

Model	TJ1340
X-Y-Z axis working area	1,300 x 4000 x 200mm
Machine size	2,150 x 4650mm
Resolutions	0.025mm
X-Y movement	Rack and pinion, gear drive/Taiwan
Z movement	Ball screw drive/Germany
Guide	Linear 20 square/Taiwan
Max. speed	35,000mm/min
Max. cutting speed	25,000mm/min
Spindle 1	4.5 kw/aircooling
Spindle 1 speed	18,000rpm
Inverter 1 power	7.5kw
Spindle 2	6kw/aircooling
Spindle 2 speed	18,000rpm
Inverter 2 power	7.5kw
Drive motors	Yaskawa servo motor
Working voltage	AC380V/50-60Hz, 3-phase
Command code	G code
Computer interface	USB 2.2
Collet	ER25-12.7mm,6mm,3.175mm
Software	Type3 Software/France
Controls	DSP0501 For Two Spindle
Packing dimensions	2260 x 4800 x 1960 mm,1700 kgs
Equipment optional	Oil lubrication system Vacuum equipment
