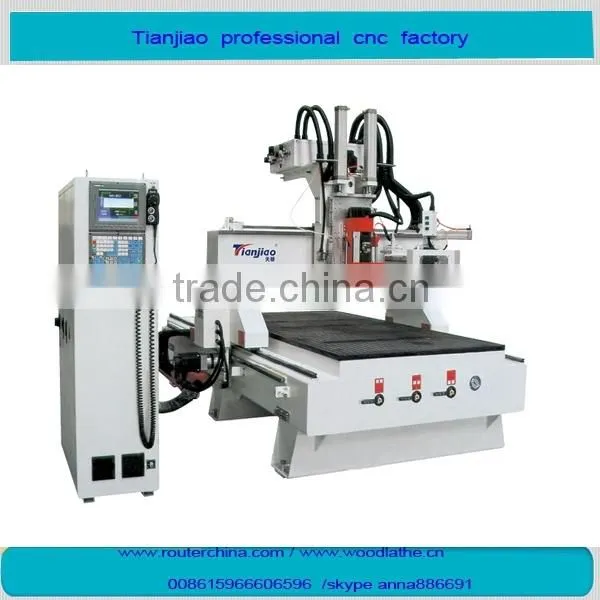

good performance high quality round disk 9kw HSD spindle atc cnc router with 8 tools TJ1325
skype anna886691
Tel whatsapp :8615966606596
wechat anna88669
1. Brief Introduction:
ATC CNC Router is widely used in furniture, decoration, industrial equipment parts, music instruments, molds, arts &crafts, building models, and advertisement engraving and cutting.
2.Technical Parameters:
Model Name |
CNC-WRS1325 |
|||
Working Area |
1300*2500*190mm |
|||
Lathe Bed |
welded |
|||
Beam |
Aluminum Alloy |
|||
X Y Transmission |
Imported Square Rail |
|||
Z Transmission |
Imported TBI Ball Screw |
|||

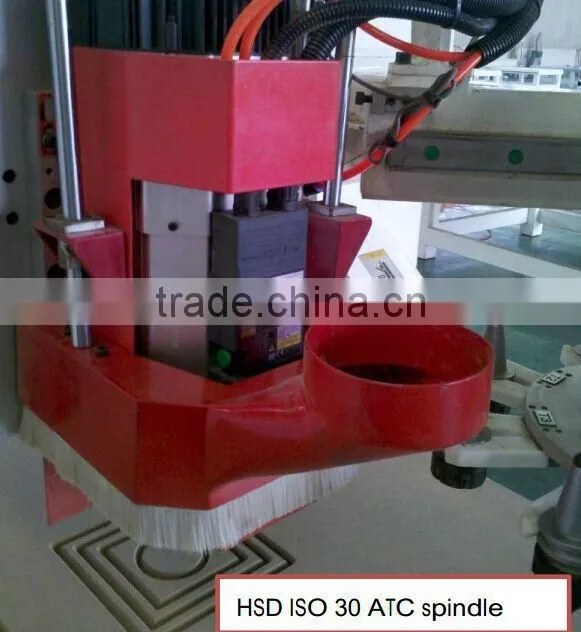

Spindle Motor |
9 KW HSD air cooling |
|||
Spindle Speed |
6000-24000rpm |
|||
Inverter |
11KW |
|||
Control System |
syntech |
|||
Typeset Software |
Type 3(English)/Ucancam |
|||
Motor |

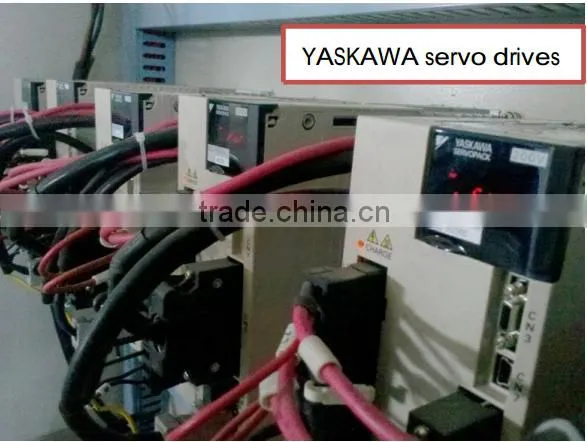

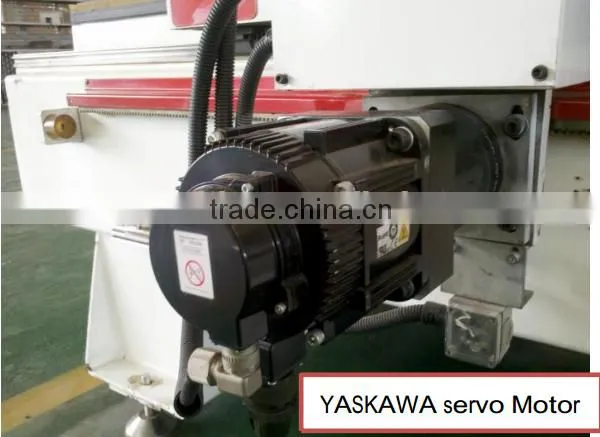

Japanese Yaskawa Servo |
|||
Driver |
Yaskawa servo motor 1300w |
|||
Vacuum |
Tube and Lathe Table |
|||
Vacuum Pump |
TONGYOU 5.5KW(Water Cooling) |
|||
Max Moving Speed |
60000mm/min |
|||
Max Engraving Speed |
25000mm/min |
|||
Positioning Accuracy |
<0.04/300mm |
|||
Lathe Table |
heavy cast iron lathe bed 150*250mm |
|||
Dust Collector |
3.0KW |
|||
Voltage |
AC380V/50HZ |
|||
Tool Diameter |
2-----20 |
|||
Tool |

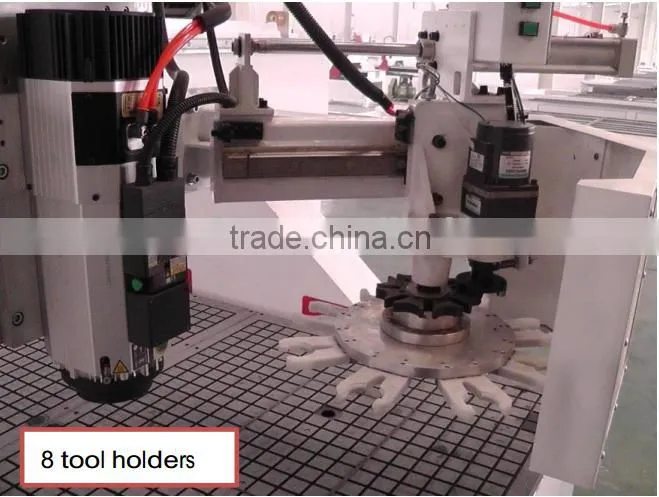

Tool magazine capacity of 8 tools, changing tools only takes 8 seconds |
|||
Application |
mainly used for production of closet doors, solid wood processing, furniture, etc. Also can be used for cutting and production of MDF |
|||
Warranty |
One year (Spindle motor is half year. The blades, sensor, power cable are expendables, not include.) |
|||
Payment |
50% prepayment by T/T, the balance to be paid upon receipt of B/L copy |
|||
Advantage |
Simple design, Complete Function |
|||
Optional Equipment | ||||
Name |
Specification |
|||
Operation system |

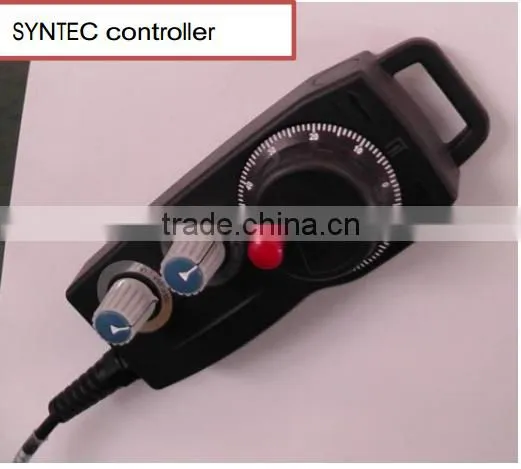

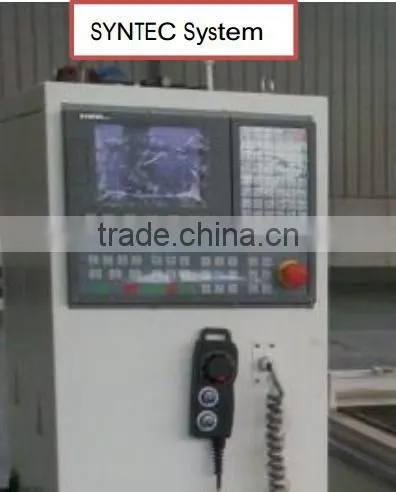

SYNTEC control system |
|||
LNC control system | ||||
Spindle Motor |
Italy 9.0KW HSD air cooling |
|||
Protection Device |
Limitation switch Dust collecting system |
|||
3.Features:

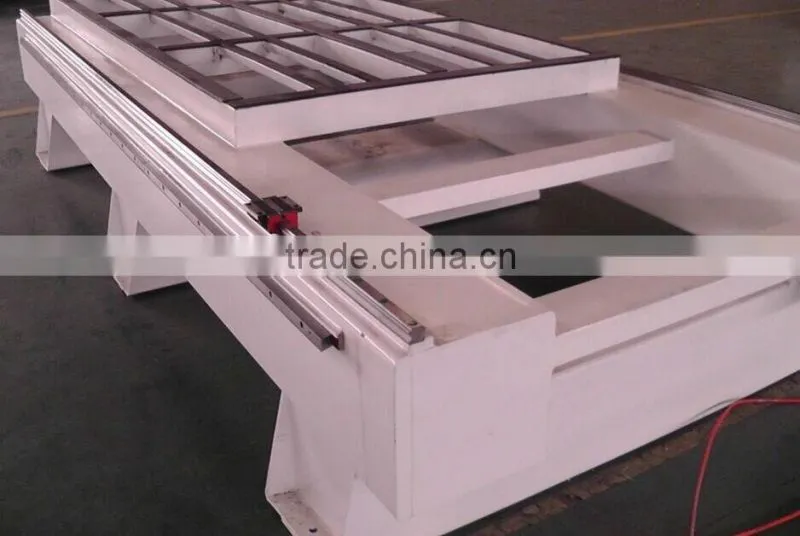

1)The bed lathe is welded by thick wall seamless cast steel. It is analyzed and designed with FEA and worktable is more reasonable and stable.
2)All of the bearings, ball screw, linear square rails, etc are lubricated and maintained automatically by the concentrate control system of the machine.
3)Vcuum working table is divided into 6 individual zones with seperate switch controller .
4)Z axis is equipped with pneumatic balance system, which is a closed circle so as to realize minimum energy consumption during working.

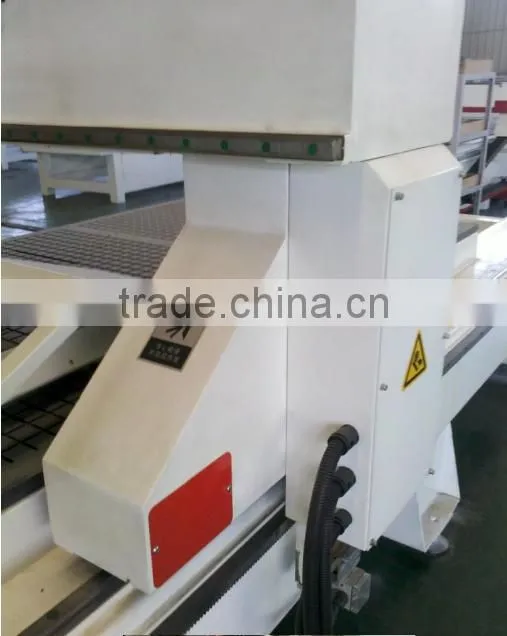

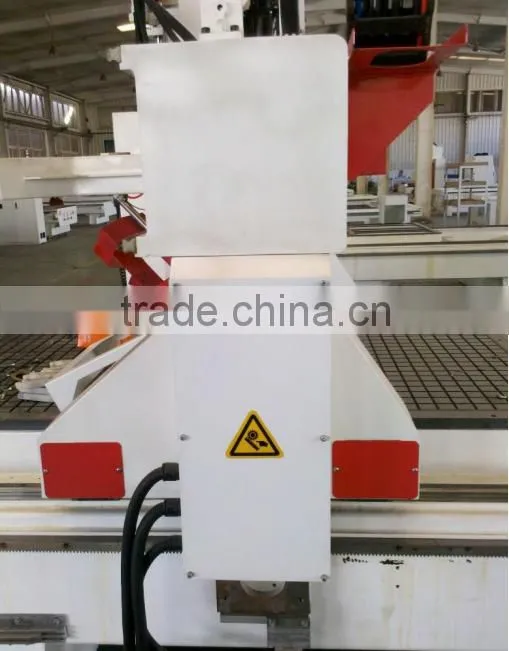

4.Main parts:
5.Applicable Industry and Materials:
1).Furniture: wooden doors, cabinets, plates, office and wood furniture, tables, chairs, windows.
2).The wood products: voice box, game cabinets,tables, sewing machines table, instruments.
3).Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, antibate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4).Decoration industry: Acrylic, PVC, MDF, artificial stones, organic glass, plastic and soft metals such as copper, aluminum plate engraving.
7.Samples:

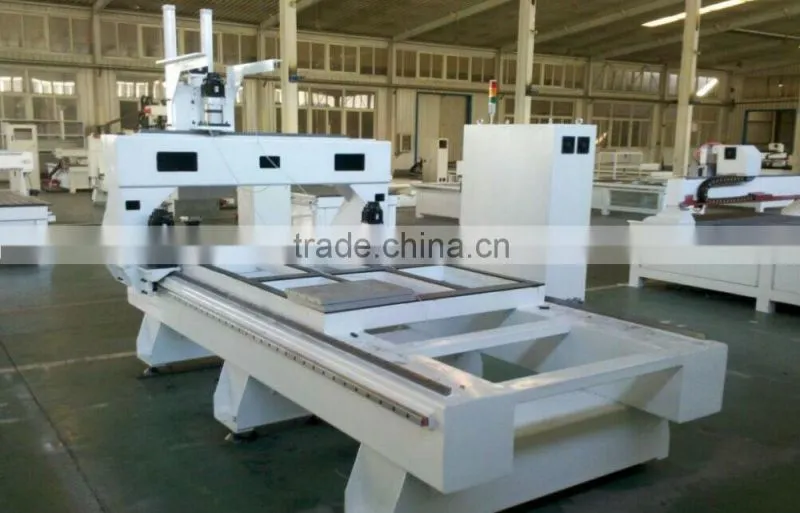

6.Factory Show:
7.Why do clients choose us?
1) At the same quality grade, our price is better:
a) Since we are manufacturer, we produce machines on large scale. Our profit mainly comes from order quantity, not from unit machine.
b) We own advanced production equipment, high efficiency and low production cost, so we can provide you with the best price for machines.
2) At the same price level, our service is better:
a) Before purchasing, please feel free to talk with us through trademanager message tool. Our service staff will recommend the proper model to fit your demand best.
Your Dream , Our Pursuit !!
