double cylinder atc cnc woodworking engraving&cutting router machine with Japan Yaskawa servo motor
Specification:
1. 1300*2500mm size
2. 3.5kw air cooling spindle with double air cylinder
3. Japan Yaskawa servo motor and driver
4. vacuum table table with water cooling vacuum pump
5. original NC studio control system
6. dust collect 3kw with double bag
Video link:
http://youtu.be/VtEVdl-ZXGE
Welcome to contact:
Isabella
Whatsapp:8615866646109
skype: xihong61
Jinan Tian Jiao Machinery Manufacture Co.,Ltd.
is specialized in developing and manufacturing Mechanical CNC router(woodworking router, advertising router, stone engraving router), wood lathe,CNC Laser
machine, Plasma cutting machine, cutting plotters,
metal mould engraving machine and other cnc machines.
We supply global market the high quality CNC equipments. We are leading company
in this field and being confident in offerring the best service and best quality.
Video link:
http://youtu.be/VtEVdl-ZXGE
1.Advantage:
This is our best seller model in woodowrking machine,it is also the automatic
tool change,
pneumetic changing tools
can be with 2 kinds dirrent cutters,function equivalent with auto tool change
model high changing speed & precision
and most important with lower cost than the Linear type and round type ATC model.
2.Application materials:
Advertising signs, PVC plate,double-color board,sign making, acrylic cutting,
moulds making for vacuum thermforming, letter cutting,brand making,PVC cutting, crystal
board engraving,acrylic engraving,LED channel letter outline shaping etc
3 .Confagurations:
1.The max speed is up to 35m/min,engraving speed is 25m/min
2.Adopting easy operated Original NC-studio control system,convenient to oprate
3.Unique intelligent budget principle make the motors offering the high speed,
so it could make the straight and smooth curves.
4.Double air cylinder, double spindles 4.5KW air cooling
5.High strength steel tube jointing
6.Japan Yaskawa servo motor and driver
7. XYZ axis Taiwan PMI/Hiwin square orbit and slipper,
Z axis ballscrew with imported Germany bearings
XY axis helical gear and pinion.
8.The table equipped with 6 divided vacuum zones vacuum table with T-slot,
more stable to stable the material
9.Equiped with Ucancam/Type3 software
4.Parameter
NO. Description |
Parameter |
|
1 |
Table size |
1480*3000mm |
2 |
X,Y working area |
1300*2500mm |
3 |
Z working area |
200mm |
4 |
Max. speed |
35m/min |
5 |
Working Speed |
25m/min |
6 |
Resolution/work delicacy |
0.02mm |
7 |
Repositioning Accuracy |
0.05mm |
8 |
Interface |
USB |
9 |
Command |
G code*.u00*.mmg* plt |
10 |
Surroundings for software |
windows98/2000/xp |
11 |
Control system |
Original NC-studio control system |
12 |
Power(spindle power is not included) |
8.87KW |
13 |
Working voltage |
AC380V 50Hz |
14 |
Spindle power (domestic made) |
4.5KW air cooling spindle |
15 |
Spindle rotating speed |
0-24000rpm/min |
16 |
Motor |
Stepper |

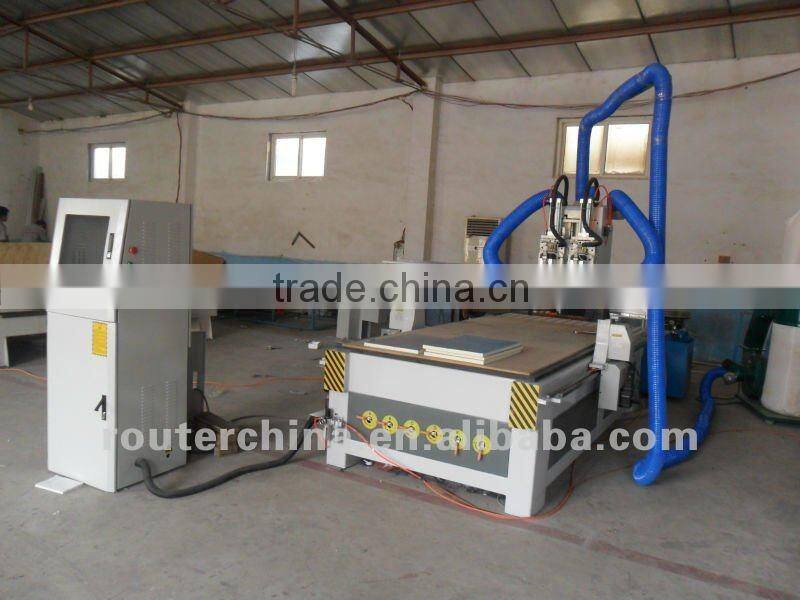

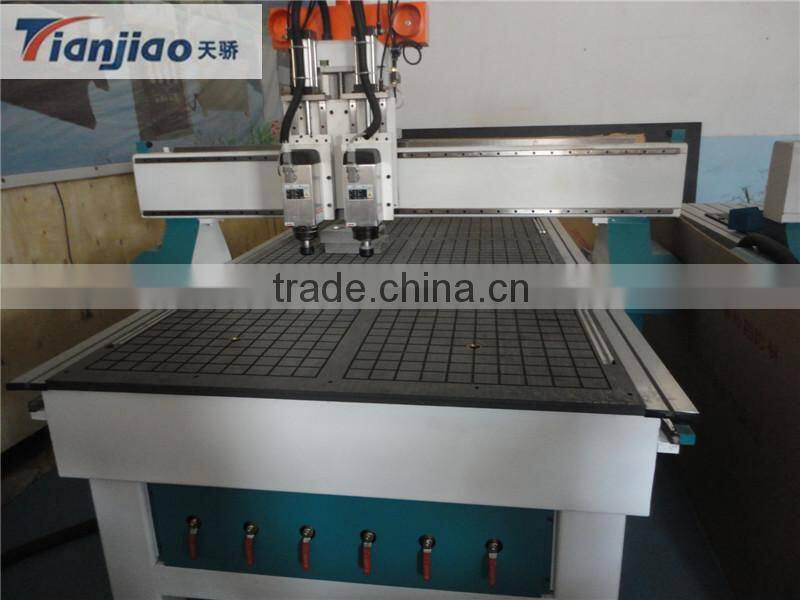

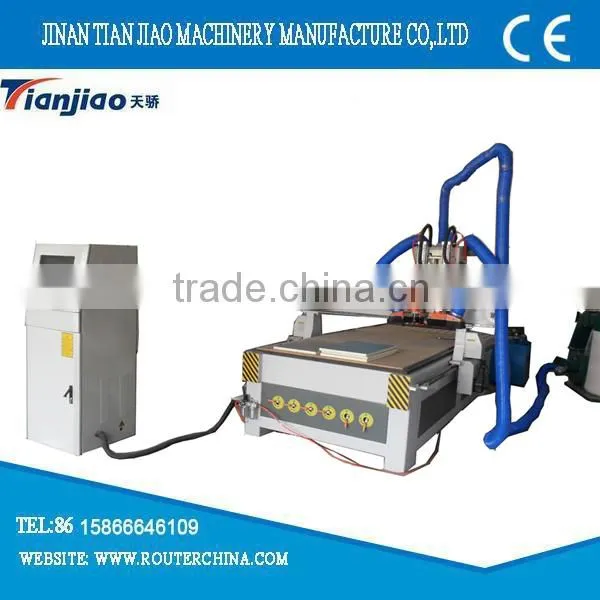

5.Photos:

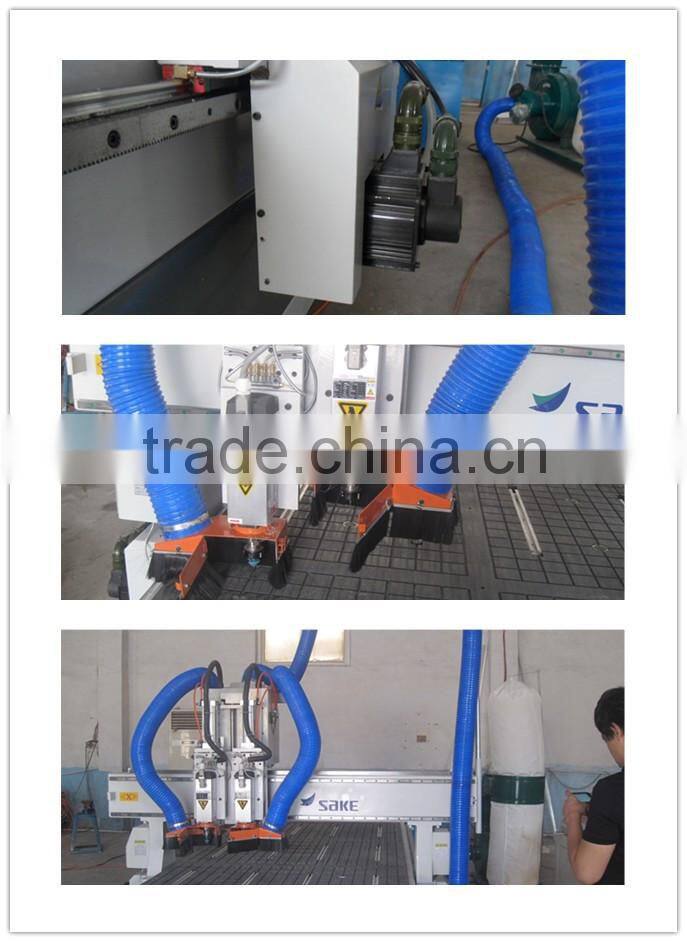

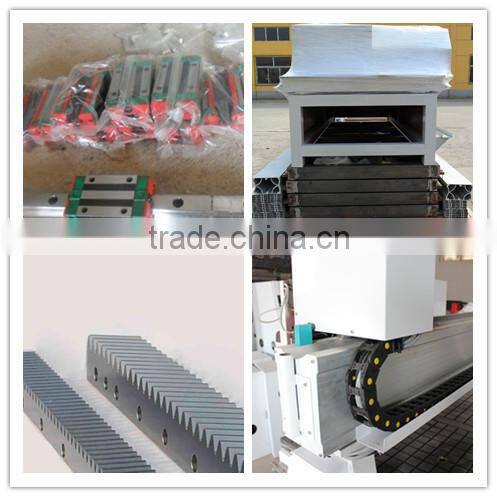

6.Parts show:
PMI/Hiwin square orbit
Thick steel structure
Helical gear
Japan Yaskawa servo motor 750w
Air cooling psindle*2 pieces
Dust collector
7.Optionals:
higher options:
Italy HSD spindle
Taiwan Delta inverter
Air cooling vacuum pump
Schneider switch

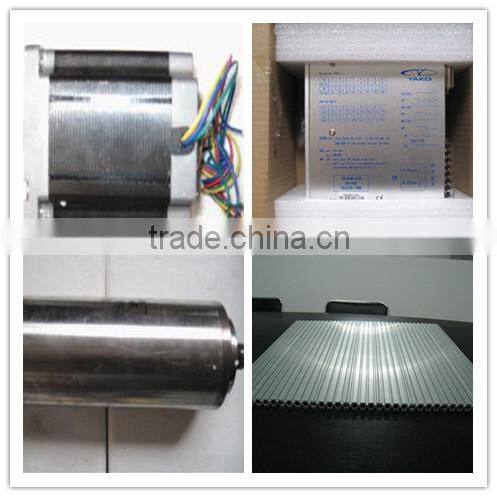

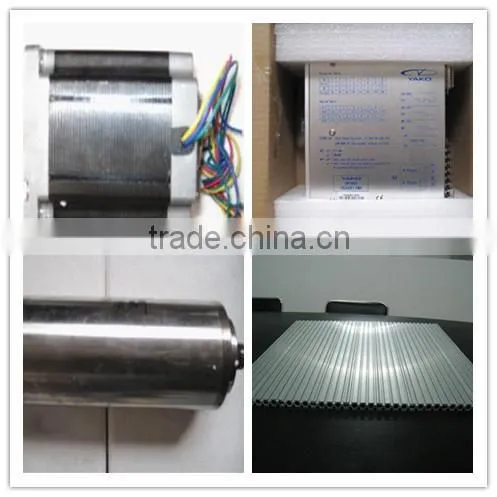

lower options:
step motor
Yako step driver
water cooling spindle
Aluminum profile table
8.Samples:
PIR insulation board cutting shows:
How to select Tian Jiao series 3 axis double heads ATC cnc hobby router
kits :
1. machine size you want
2. how many cutters you need to complete one engraving sample
3. materials you will process,to check vacuum table/Aluminum table or with both
4. Servo motor or step motor?

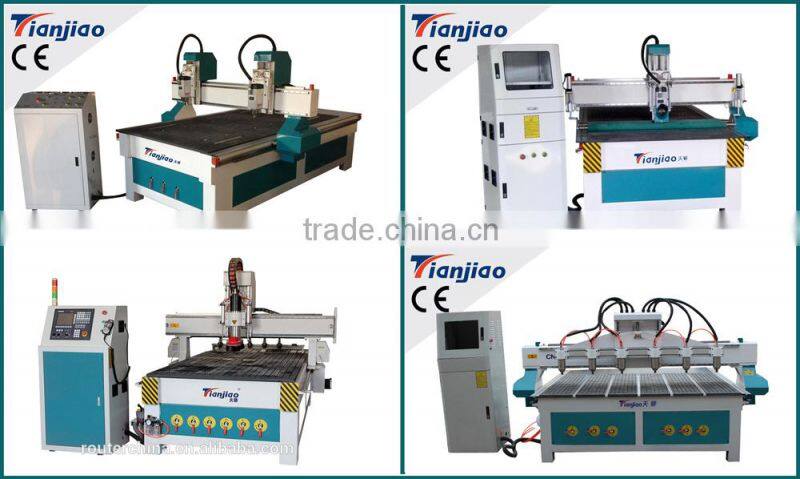

Tian Jiao other series cnc router and wood lathe
Multi heads cnc router
High features wood cnc router with pressure roller
Linear type ATC cnc carving machine kits

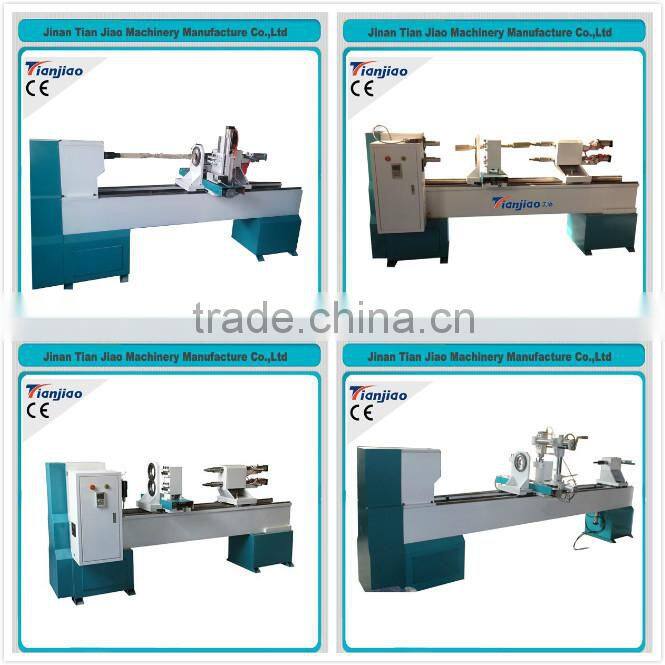

Single axis double knife wood cnc lathe
Biaxial double cutter wood lathe
Four axis 2 pieces wood turning lathe
Wood turning and broaching lathe with universal adjustable bracket
Company certificate:

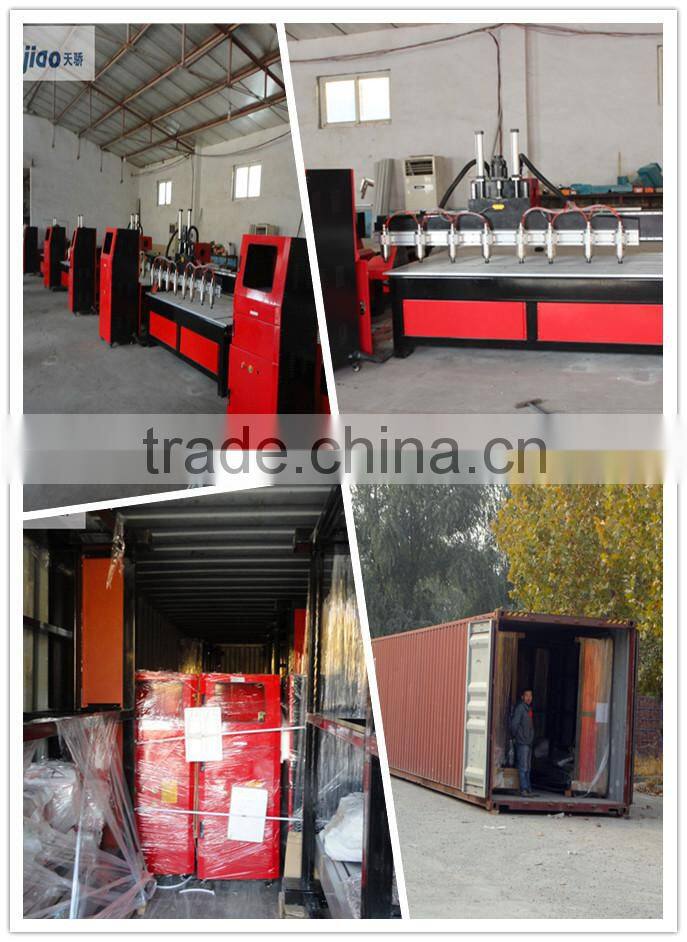

Special department to design for shipment, especially for the large and special
machine model.
Before sale
1.Patient introduce and professional suggest buying selection
2.Real time report production situation
3.Take pictures and make videoes with your done machine
4. Strict test and debugg machine quality before shipping
After sale
24 hours on line service and phone on
2 years gurantee term
During gurantee term, repair or change damaged parts for free
Exceed gurantee term, offer at cost price
Manager: Isabella
skype: xihong61
Trademanager: cn209782924
qq: 2417071086
Phone: 86 15866646109
