woodworking 8 tools automatic changing cnc router with 4 axis rotating aixs

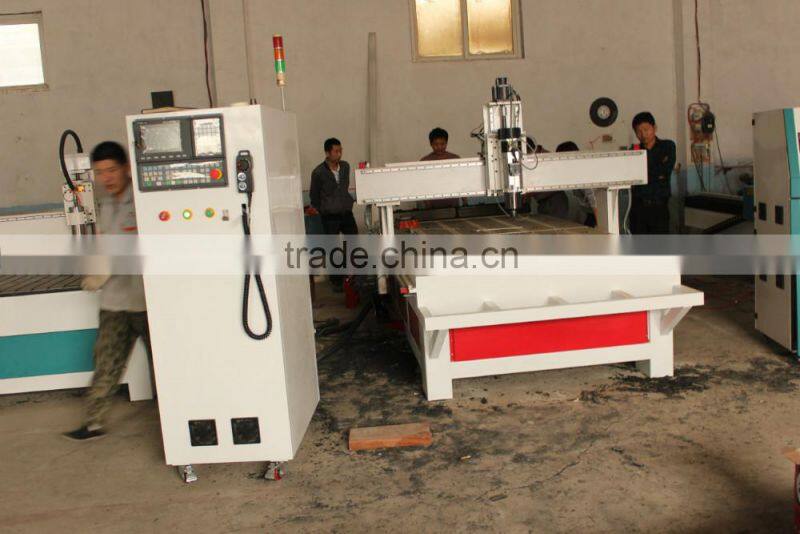

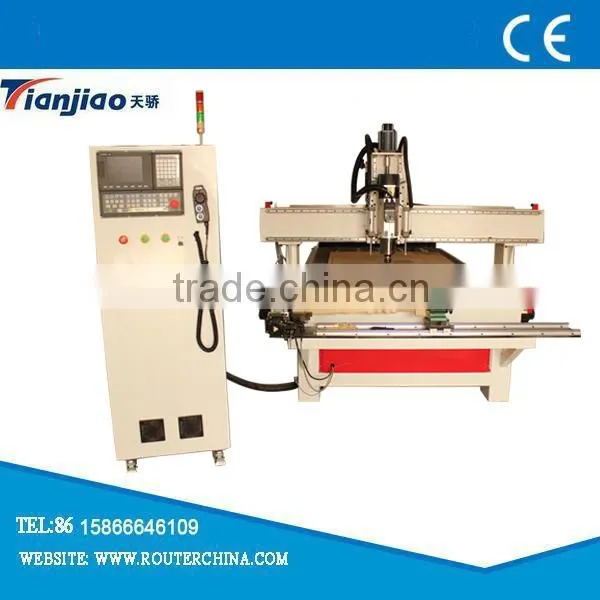

1. pictures:
2.Application
1).The model is a professional and efficient woodworking engraving machine, it
suitable for
large-volume, Joint processing of multi-model tool. Can be applied to furniture industry, solid wood furniture, solid wood
doors,
decorative materials, cabinet doors, computer tables, panel furniture, office
furniture,
wood Furniture industry, wood door, cabinets, kitchen, Chairs, decoration business,
solid
wood doors, Mould industry, wood panel, wave board processing, screen, calligraphy
tablet
design , relief, PVC and MDF sheet carving, Speaker system, kitchen utensils, and
other
wooden furniture processing.
2). With the rotary axis, the machine also can do 3D engraving. Such as arts and
crafts making,
wooden pen holder engraving, bamboo and gift boxes engraving, handrails and railings
engraving, table legs and bed legs engraving and so on.
3. Features
1). Whole machine seamless thicker profile steel structure.

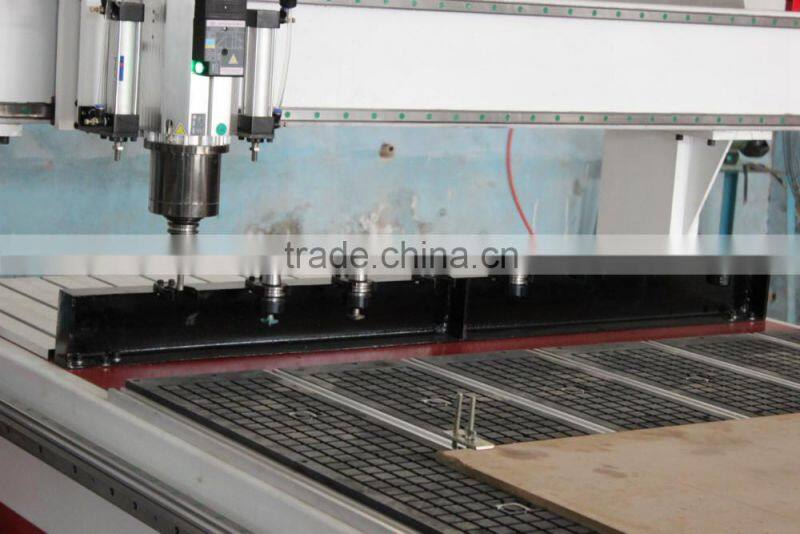

2). Linear type Automatic tool change machine, come with an 8-slots carousel tool changer, tool changes to be performed within 8 seconds.
3). China servo motor driving system, high precision ball screw Ø32 and tilt rack
gear for transmission.
4). China brand 9KW ATC air cooling spindle.
5). Taiwan PMI square linear guide rail, Ø30 for Y axis, Ø25 for X,Z axis, self-Lubricating.
6). Vacuum table structure, make loading and unloading easier and increase output.
7). Japan Shimpo gear reducer, Schneider low voltage electrical components, Delta
inverter-guaranteeing optimum performance and minimum failure.

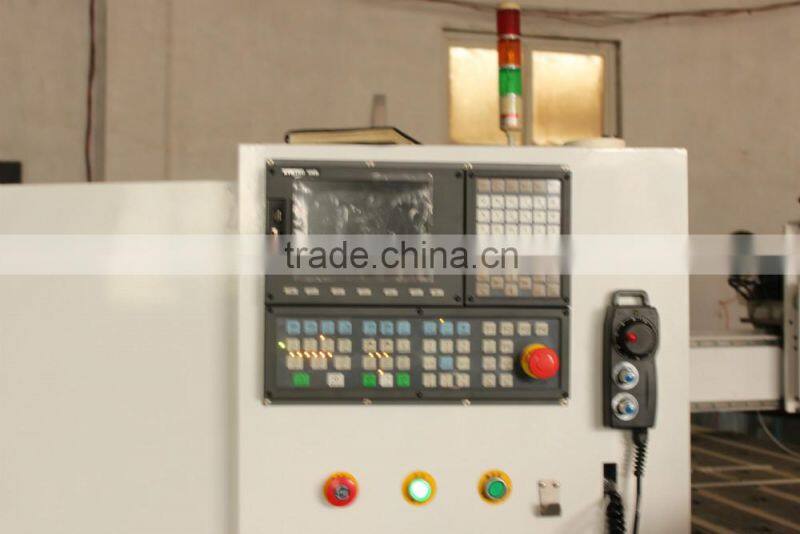

8). Taiwan SYNTEC control system: The embedded numerical control system based on
windows
platform can upgrade the functions infinitely. Anti-interference design of the hard and software synchronistically make sure of the
reliable operation.
Advance 3D space curve prediction algorithm can make sure of the evenness of
polyline and the
speed and precision of curve lines.
9). Advanced file pretreatment function can correct the error in the files and is
compatible with the
process codes of multiple national and international software. (such as UCANCAM,
Type3, Artcam).
4.Parameters:
Model |
TJ 1530AT(Linear type) |
Machine Body |
Whole Seamless Steel Structure,T type gantry |
Effective Stroke |
1560mm*3100mm*200mm |
Maximum Processing Size |
1500mm*3000mm*180mm |
Table Size |
1500mm*3000mm |
Table Structure |
Vacuum Table (Option: T-slot and Vacuum Table) |
Guide way |
Taiwan PMI Square linear Guide Rail |
Transmission |
X,Y Rack Pinion, Z Ball Screw |
Processing Precision |
0.01mm |
Repositioning Precision |
0.03mm |
Self-consuming Power |
2.8KW |
MAX Travelling Speed |
50000mm/min |
MAX Working Speed |
20000mm/min |
Spindle Power |
9.0KW China brand Air Cooling Spindle |
Spindle Speed |
18000r/min |
Tool Magazine |
Linear Type ATC, Capacity-8 Tool Changing Time-8 seconds |
Driving System |
China Servo Motor System |
Working Voltage |
AC380V/3PH/50HZ |
Operating System |
Taiwan Syntec control system |
Net Weight |
2000KG |
Gross Weight |
2300KG |
5.sample
6.main parts:

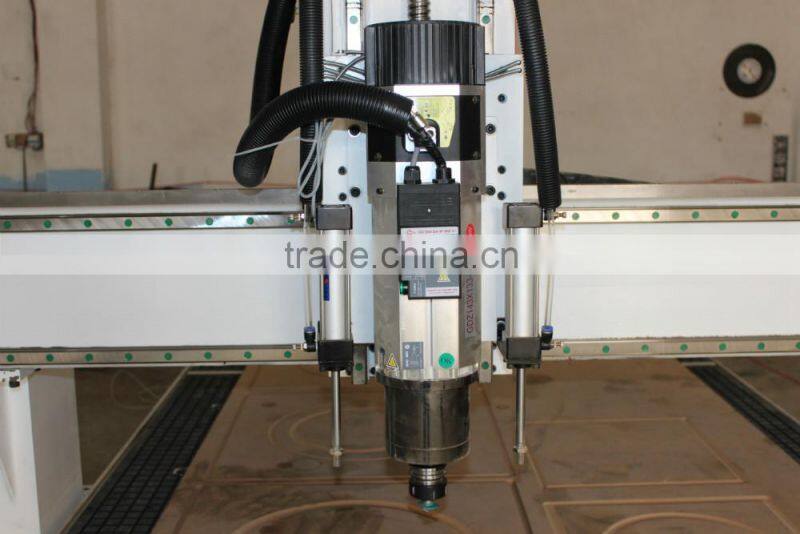

9KW air cooling spindle
8 tools chnging
https://youtu.be/M9r2cS_d7NM
https://youtu.be/k6F_bmgey5M
https://youtu.be/v3Shj8Zi1Jk
Before sale
1.Patient introduce and professional suggest buying selection
2.Real time report production situation
3.Take pictures and make videoes with your done machine
4. Strict test and debugg machine quality before shipping
After sale
24 hours on line service and phone on
2 years gurantee term
During gurantee term, repair or change damaged parts for free
Exceed gurantee term, offer at cost price
Jinan Tian Jiao Machinery Manufacture Co.,Ltd. is specialized in developing and manufacturing Mechanical
CNC router (woodworking router, advertising router, stone engraving router), CNC Laser machine, Plasma cutting machine, cutting plotters, metal mould engraving machine and other cnc machines. We supply global market the high quality CNC equipments. We are leading company in this field and being confident in offerring the best service
and best quality.
