China cnc router machine with 9Kw spindle for milling wood

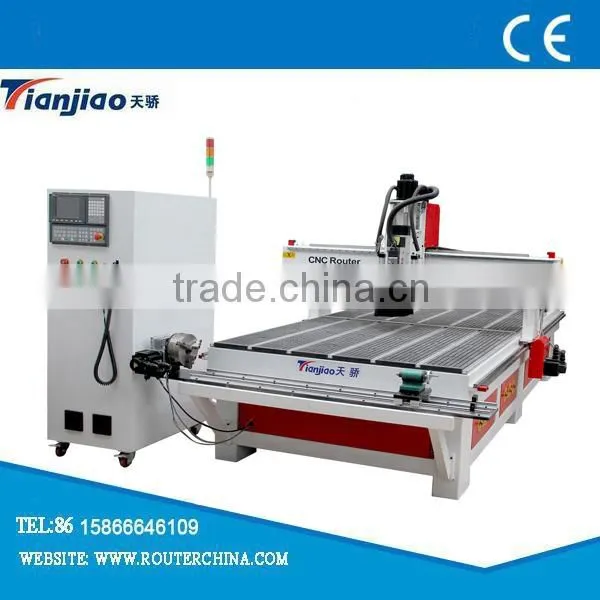

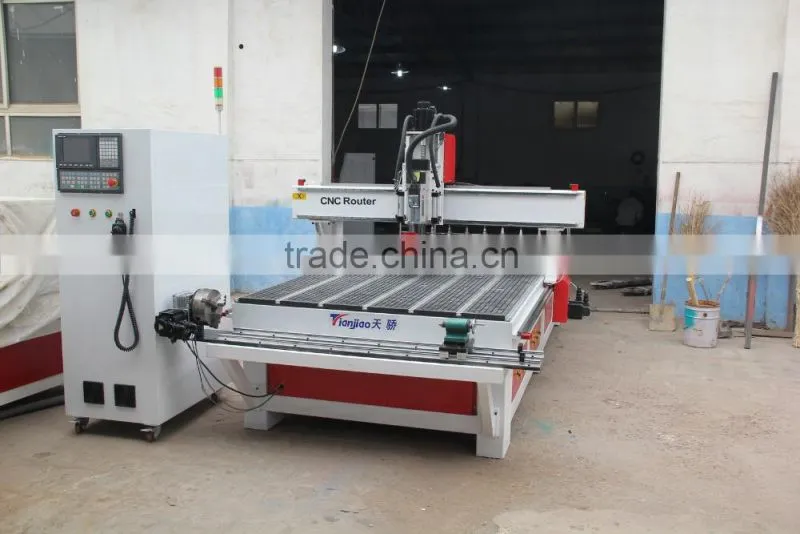

1.pictures:
9KW China air cooling spindle vacuum with T-slot table
8 Tools automatic changing with 4 axis rotary
China servo motor and driver Taiwan Syntec control system
2. Application:
1).The model is a professional and efficient woodworking engraving machine, it
suitable for large-volume, Joint processing of multi model tool.
Can be applied to furniture industry, solid wood furniture, solid wood doors,
decorative materials, cabinet doors, computer tables, panel furniture, office furniture,
wood Furniture industry, wood door, cabinets, kitchen, Chairs, decoration business,
solid wood doors, Mould industry, wood panel, wave board processing, screen, calligraphy
tablet design , relief, PVC and MDF sheet carving, Speaker system, kitchen utensils, and
other wooden furniture processing.
2). With the rotary axis, the machine also can do 3D engraving. Such as arts and
crafts making, wooden pen holder engraving, bamboo and gift boxes engraving, handrails and
railings engraving, table legs and bed legs engraving and so on.
3. Features
1). Whole machine seamless thicker profile steel structure.
2). Linear type Automatic tool change machine, come with an 8-slots carousel tool changer, tool changes to be performed within 8 seconds.
3). China servo motor driving system, high precision ball screw Ø32 and tilt rack
gear for transmission.
4). China brand 9KW ATC air cooling spindle.
5). Taiwan PMI square linear guide rail, Ø30 for Y axis, Ø25 for X,Z axis,
self-Lubricating.
6). Vacuum table structure, make loading and unloading easier and increase output.
7). Japan Shimpo gear reducer, Schneider low voltage electrical components, Delta
inverter-guaranteeing optimum performance and minimum failure.
8). Taiwan SYNTEC control system: The embedded numerical control system based on
windows
platform can upgrade the functions infinitely. Anti-interference design of the hard and software synchronistically make sure of the
reliable operation.
Advance 3D space curve prediction algorithm can make sure of the evenness of
polyline and the
speed and precision of curve lines.
9). Advanced file pretreatment function can correct the error in the files and is
compatible with the
process codes of multiple national and international software. (such as UCANCAM,
Type3, Artcam).
4.Parameters:
Model |
TJ 1530AT(Linear type) |
Machine Body |
Whole Seamless Steel Structure,T type gantry |
Effective Stroke |
1560mm*3100mm*200mm |
Maximum Processing Size |
1500mm*3000mm*180mm |
Table Size |
1500mm*3000mm |
Table Structure |
Vacuum Table (Option: T-slot and Vacuum Table) |
Guide way |
Taiwan PMI Square linear Guide Rail |
Transmission |
X,Y Rack Pinion, Z Ball Screw |
Processing Precision |
0.01mm |
Repositioning Precision |
0.03mm |
Self-consuming Power |
2.8KW |
MAX Travelling Speed |
50000mm/min |
MAX Working Speed |
20000mm/min |
Spindle Power |
9.0KW China brand Air Cooling Spindle |
Spindle Speed |
18000r/min |
Tool Magazine |
Linear Type ATC, Capacity-8 Tool Changing Time-8 seconds |
Driving System |
China Servo Motor System |
Working Voltage |
AC380V/3PH/50HZ |
Operating System |
Taiwan Syntec control system |
Net Weight |
2000KG |
Gross Weight |
2300KG |
5.samples:
6. working videos:
/112118044644310384412/posts/aZ16s6UEwrD
https://youtu.be/M9r2cS_d7NM
https://youtu.be/k6F_bmgey5M
https://youtu.be/v3Shj8Zi1Jk
