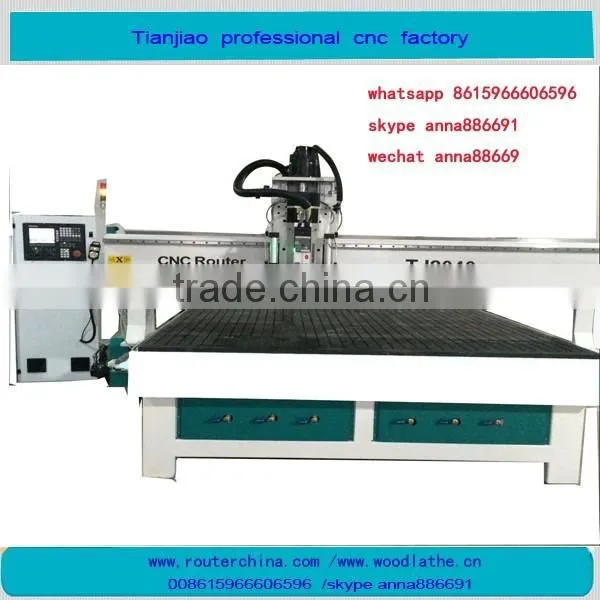

linear tool change ATC cnc router TJ2040
high efficiency =one machine can replace 36workers
.
Feature
T slot cast steel structure, CLOAK shape tool change , imported Taiwan square orbit, ball screw for Z axis,
rack&pinion for X axis and Y axis , 9 KW Italy HSD air cooling spindle , 1300W SERVO motor ,
Y axis adopt double motor to drive , NK260 control system , Artengraver software ,
transformer, vacuum table with 6 zones separate vacuum zone , 5.5 KW vacuum pump ,
3 KW dust collector system, dust cover, 20 cutters( φ6, φ12.7), 2 collets
Machine model |
TJ 2040 -6tools |
XY working area |
2000*4000 mm |
Z working area |
300 mm |
Table size |
5100*2300 mm |
Max. speed |
60 m/min |
Max. working speed |
30 m/min |
Working delicacy |
0.05 mm |
Table |
vacuum working table or T-slot |
Command |
G code*u00* mmg*plt |
Surrounding for software |
Windows98/2000/xp |
power |
AC380 3 phases |
Spindle |
9 kw HSD air cooling spindle |
Speed of spindle |
0-18000 rpm/min |
Work mode |
servo motor , Y axis adopt double motors to drive . |
Structure |
Steel structure, square orbit, ball screw for z axle, gear-wheel for x axle and y axle |
Engraving software |
Artengraver |
Control |
NK260 |
Suitable Materials and Industrial Applications
Furniture Decoration Industry,Wood Products Processing,Musical Instrument Industry,Artwork,Electronic Industry

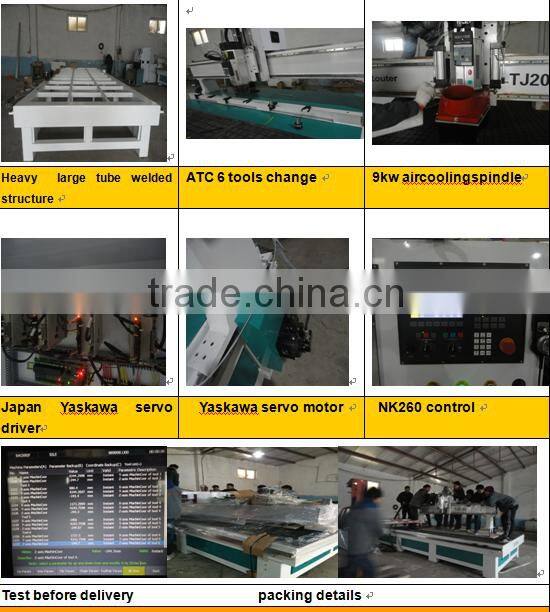

Main parts

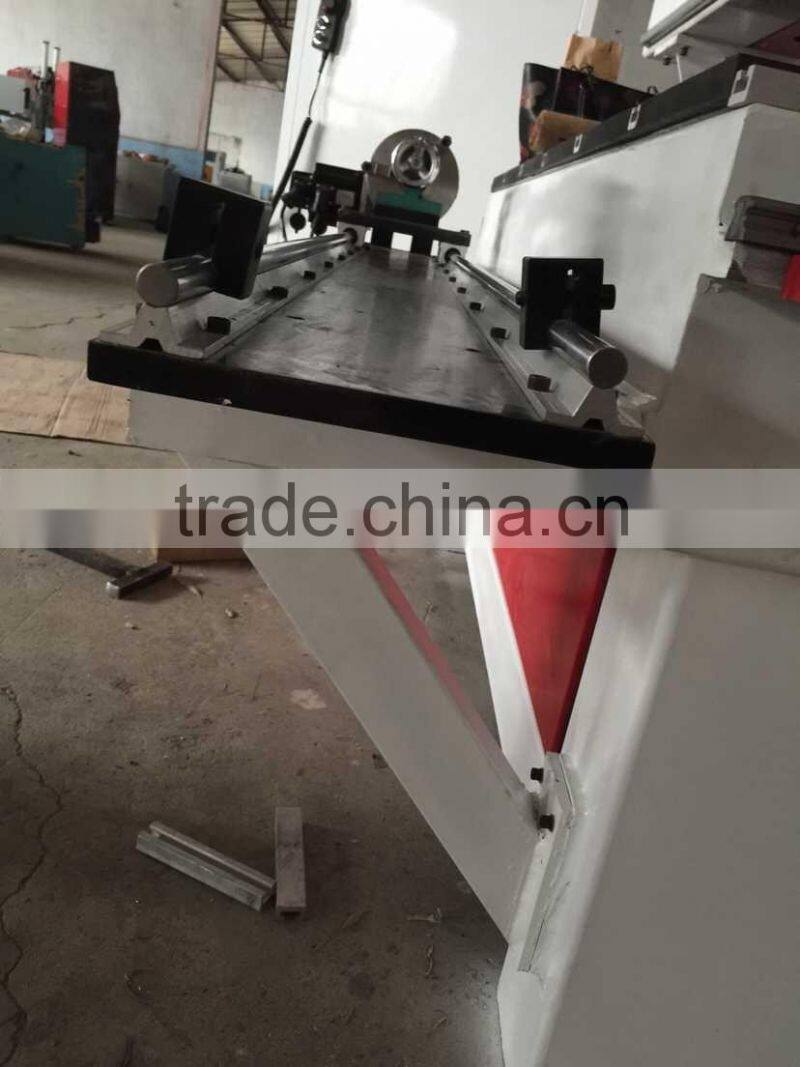

optional parts

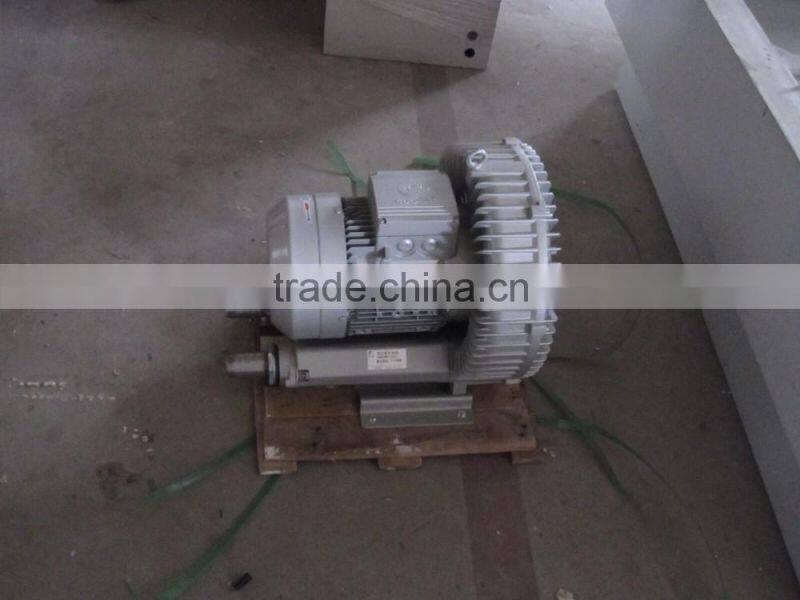

Vacuum pump rotary
sample
After-sale service
One year free warranty for the whole machine , lifelong maintenance.
Customer response service time within 12 hours.
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can
recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can
also help you by “Team viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the
standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 1 year guarantee, fail parts will be replaced for free if the machine under
“ normal operation”.
