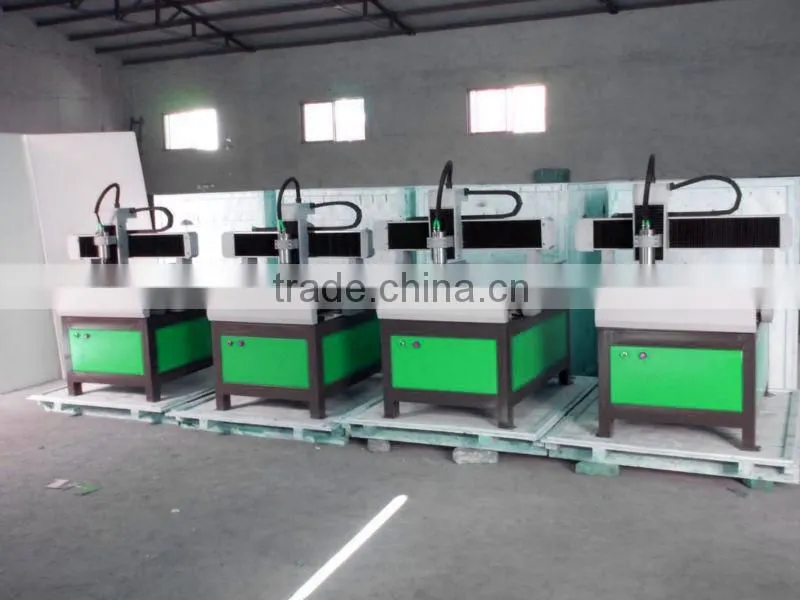

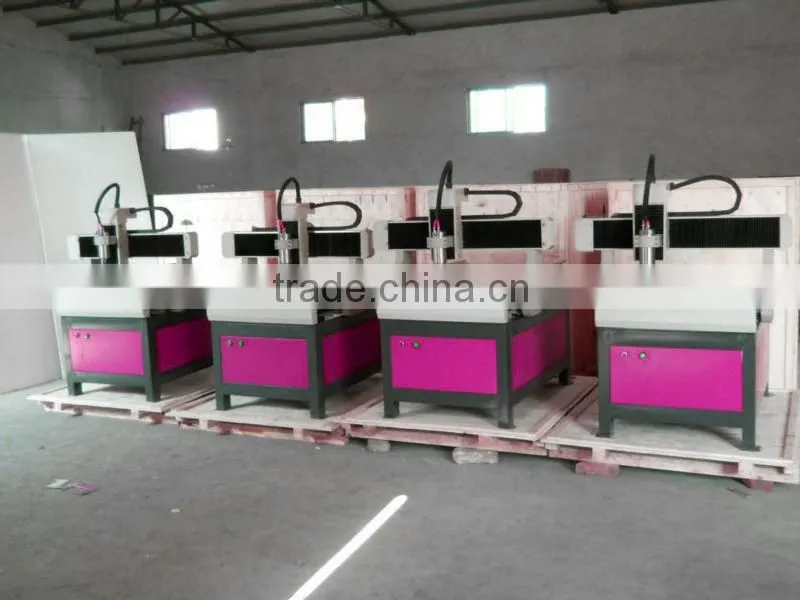

2014 China Mini CNC Router/CNC Engraving Machine TJ-6090A
Applications:

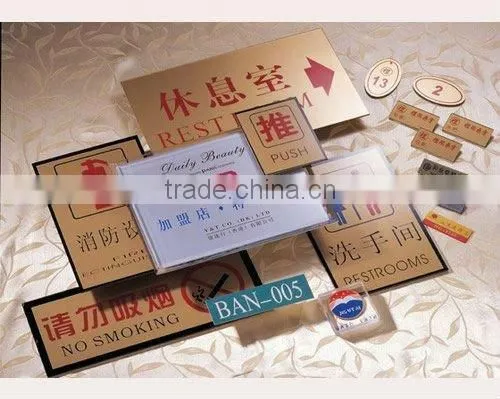

This machine is widely used in advertising industry, such as sign making ,department nameplate ,chest badge ,architectural model, ABS plate , acrylic cutting, jade ,glass and marble engraving.
Features:
1. Whole cast iron, long service time, resistant to wear and low noise.
2. Vertical bracket, removable gantry, fixed worktable, three axis adopt imported Germany high precision ball screw, can engrave 2mm-3mm little letter.
3. X axis adopts popular dustproof and waterproof structure, Conducive to maintenance.
4. Adopt advanced CNC system (NCstudio or DSP control system), has break point memory mode to make sure continuous working after electronic drop or other postpone situation.
5. User-friendly design, can be split into the machine and the bracket, easy to transport and installation.
Technical parameters:
Model |
TJ-6090A |
Machine body |
Whole cast iron |
Work dimensions |
600*900*80mm(23.6*35.4*3.1") |
Max. feeding height |
80mm or bigger |
Working table |
Aluminum T-slot |
Guide way |
Imported HINWIN Cylinder linear guideway |
Driving mode |
Ball screw |
Mechanical precision |
0.01mm |
Repositioning accuracy |
0.03mm |
Max. Speed |
8m/min |
Working speed |
0-5m/min |
Driving motor |
Stepper motor |
Max. Power consumption |
1.9KW |
Software |
Type 3, Art cut, Art cam and Ucancam software |
Voltage |
AC 220/50Hz or 110V |
Spindle |
1.5KW variable speed, water-cooling spindle |
Spindle speed |
0 - 24,000rpm/min |
Blade diameter |
3.175mm, 4mm, 6mm |
Control system |
DSP controller system with USB interface |
Command |
G code, u00, mmg, plt |
Certification |
CE, FDA,ISO |
Net weight |
280kg |
Options:

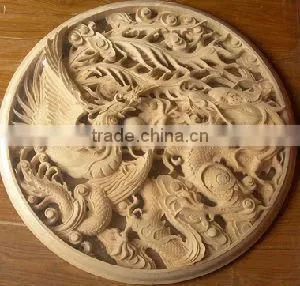

1. Rotary axis-for cylindrical materials engraving or 3D engraving.
2. Stianless steel water tank--for hard materials engraving, such as glass, marble and so on.
3. Vacuum table
4. Dust collector
Warranty and after-sales service
1.All machines are debugged before shipment.
2.One year machine warranty.
3.Lifetime technical support and maintenance service.
4.24 hours on line or phone or by email technical support.
5.We offer detailed machine manual,software manual,controller manual and training CD.
6.Free training course at our plant.
7.Welcome to visit our factory to learn machine face to face.
Company information
Jinan Tian Jiao Machinery Manufacture Co., Ltd. specializes in developing and manufacturing Mechanical CNC routers, CNC Laser machines, Plasma cutting machines, cutting plotters and woodworking machines, advertising machines, ATC machines, stone working machines and other machines. We provide global market with high quality CNC equipment. We are a leading company in this field, being confident in offering the best service and best quality. We can also customize products and offer OEM service. Our products have been exported to many overseas countries, gaining good comments.
We hope to be your good, long-term and honest partner. Wish you can get joy and satisfaction from our products and service.
Advantages:
1.Our company was set up for many years and we have lots of experience.
2.All the parts of our machines are famous brand in China or in international,so it make sure our machine have high quality and long lifetime.
3.Our worker have experience,they can produce machines professional and skilled,so make the machine with high quality and can work well.
4.Perfect after-sales service.
