Specifications
Desktop PCB milling and drilling machine1.portable 2 take
2.high precision,stable
3.german ballscrew
4.small parts engrave

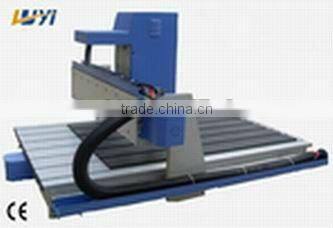

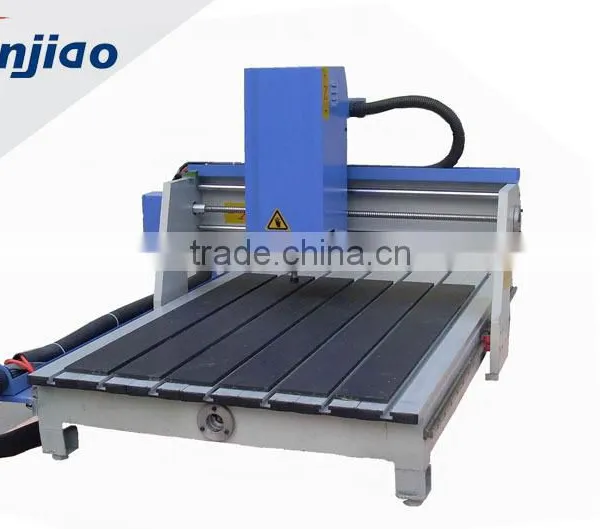

Desktop PCB milling and drilling machine
Standard features:
1.Y axises are square orbits, x and z axis is round orbit, ballscrew, new DSP control system, UCANCAM software and Type3 Software, 1.5kw water cooling spindle with imported bearing.
2.Adopt Germanic double nut ballscrew and imported orbit.
3.Break point memory mode to make sure continuous working after electronic drop or other postpone situation.
4.Special saving mode of different pints
5.Gantry mode movement is more durable and will not distort after long time use and the reposition precision is much better.
6.The desktop type structure offers more stable and more smooth work.
Widely used for architectural model, schools, companies and governments.
NO. Description |
Parameter |
|
1 |
X,Y Working area |
600×850mm |
2 |
Z Working area |
80mm |
3 |
Max. speed |
10m/min |
4 |
Max working speed |
5m/min |
5 |
Working delicacy |
0.03mm |
6 |
Repositioning Accuracy |
0.02mm |
7 |
Max. feeding Height |
75mm |
8 |
Command |
G code*.U00*.mmg*.plt |
9 |
Surroundings for software |
windows98/2000/xp |
10 |
Power (spindle is not included) |
300W |
11 |
Working voltage |
AC220V 50Hz |
12 |
Spindle power |
1.5KW water cooling spindle |
13 |
Spindle rotating speed |
0-24000rpm/min |
14 |
Drive motor |
Stepper |
