Specifications
embossing machine at wood4.5KW air cooling spindle.double air cylinder
2 heads, one for side drilling
special table

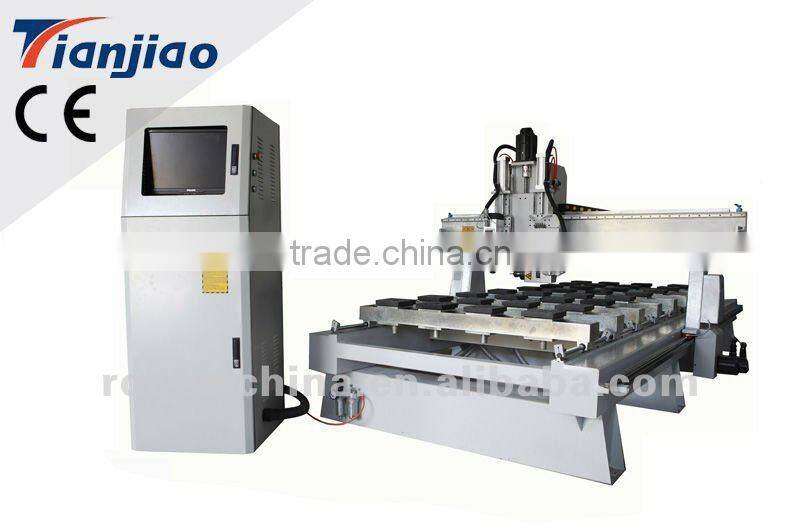

embossing machine at wood
This is our new model in woodowrking machine, it is also the automatic tool change, pneumetic changing tools, high changing speed, precision, and most important with lower cost than the Linear type and round type ATC model.
Confagurations:
1.The max speed is up to 35m/min,engraving speed is 25m/min
2Adopting easy coperated DSP control system, it is convenient to oprate
3.Unique intelligent budget principle make the motors offering the high speed, so it could make the strraight and smooth curves.
4.Double air cylinder
5. High strength steel tube jointing
6.The table equipped with 6 divided vacuum zones
7.original NC-studio system
Parameter
NO. Description | Parameter | |
1 | Table size | 1480*3000mm |
2 | X,Y working area | 1300*2500mm |
3 | Z working area | 200mm |
4 | Max. speed | 35m/min |
5 | Working Speed | 25m/min |
6 | Resolution/work delicacy | 0.02mm |
7 | Repositioning Accuracy | 0.05mm |
8 | Interface | USB |
9 | Command | G code*.u00*.mmg* plt |
10 | Surroundings for software | windows98/2000/xp |
11 | Control system | DSP control system |
12 | Power(spindle power is not included) | 8.87KW |
13 | Working voltage | AC380V 50Hz |
14 | Spindle power (domestic made) | 4.5KW water cooling spindle |
15 | Spindle rotating speed | 0-24000rpm/min |
16 | Motor | Stepper |

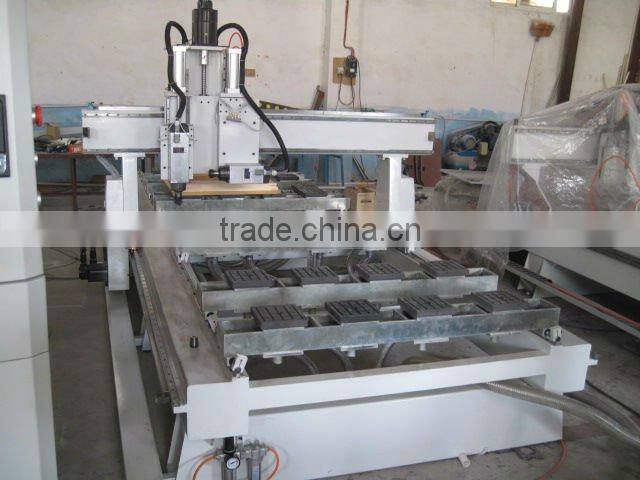

Special table, can moving to suitable for the size of the material

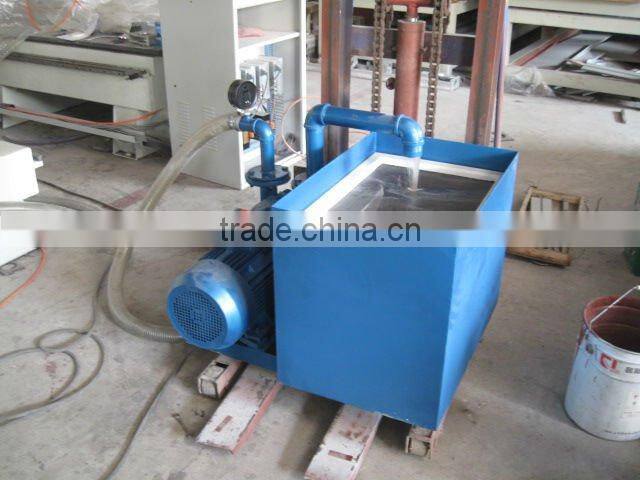

water cooling vacuum pump

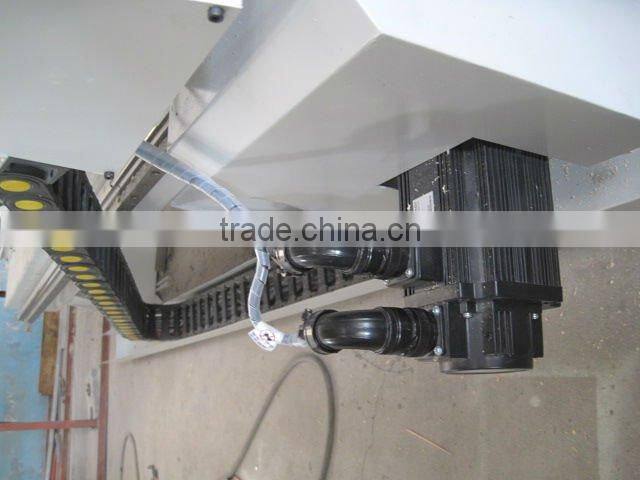

Servo motor
Two spindle, one is for side drilling

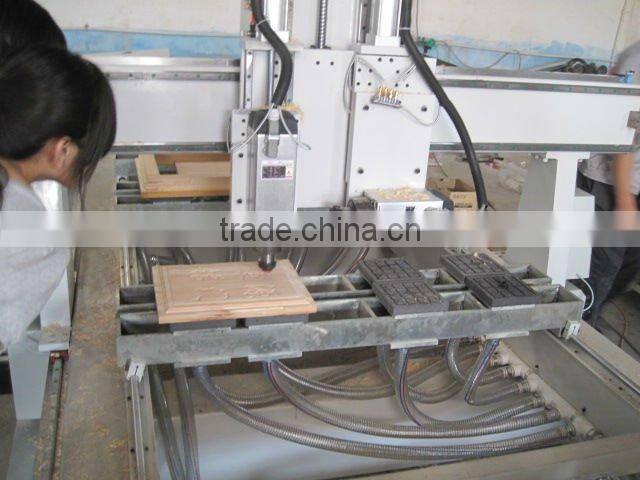

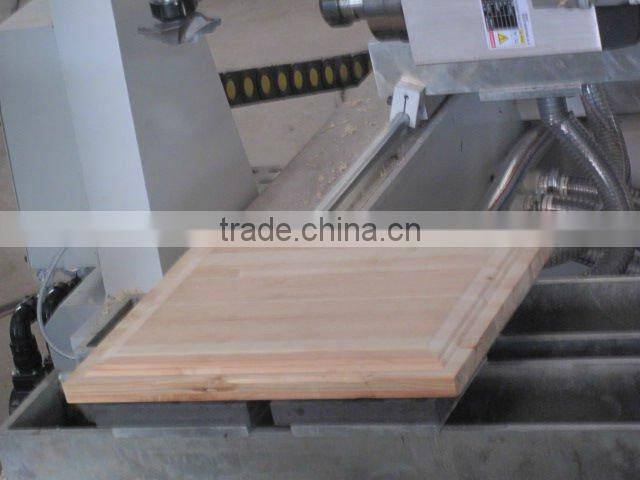

Sample for wood door model making
Foreign customers are interest
