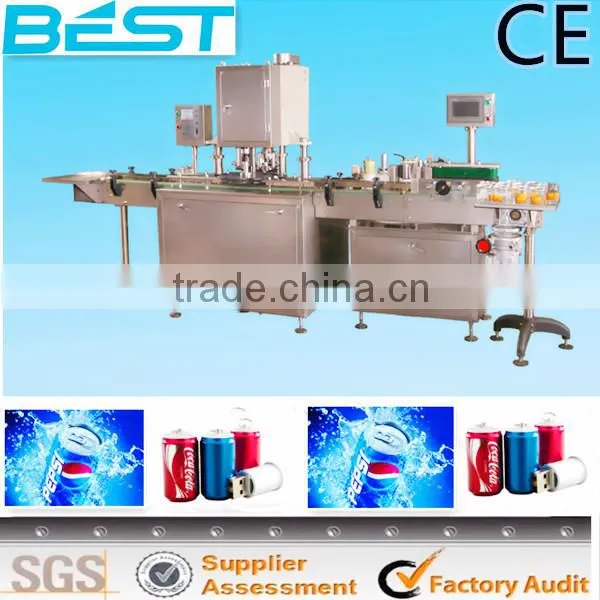

Best-Fgdt100 Automatic Seamer Sided automatic Labeling Machine
This product is suitable for PET plastic containers, paper, cans, and other specifications of round cans sealing, labeling. Quality, reliable, lightweight and easy to operate, the food, beverage, pharmaceutical, chemical industry and other essential ideal equipment. The machine has two pairs (four) wheels roll seam sealing, seaming cans when stationary automatic sealing, labeling equipment synchronization is complete. By replacing the corresponding pressure head molds can form parts of different specifications can seal round cans. Therefore, the machine has high production capacity, wide range of applications, high degree of automation, easy to operate, adjust, using reliable features. Suitable for PET cans sealing, labeling pipeline equipment.
Features:
1 lid joint control device: When the body into the tank when the lid was allocated accordingly, no tank no lid.
(2) When the photodetector to seal the mouth of the tank, the labeling machine automatic labeling, no tank no labeling.
3 This product is only suitable for single-sided label affixed;
4 separate host and conveyor motor stepless speed, simple structure, convenient operation and maintenance;
5 housing and main components of 304 stainless steel, meet the food hygiene requirements medicines;
Technical parameters:
Model BEST-FGDT100 production capacity of 25-30 cans / min
Adaptation can diameter φ 52.5-φ 100mm (special custom specifications)
can height 50-160mm (special custom specifications)
Labeling accuracy ± 1mm
Label height 15-120mm
Label length 25-300mm
paper roll diameter (diameter) 76mm
Maximum roll diameter (diameter) 300mm
voltage three-phase 380V 50/60HZ
Power 2KW
Weight 900kg
Dimension 3200 (L) × 1100 (W) × 1800 (H) mm
