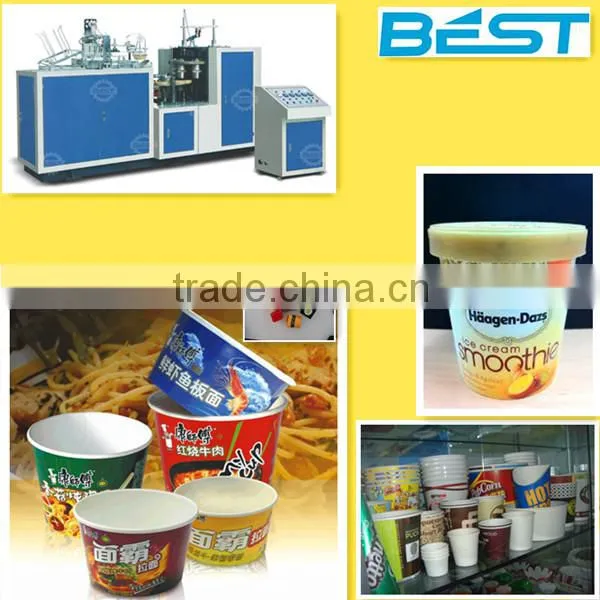

Equipment Name : Noodel bowl quality bowl machine made in China
2.Description:
Model JBZ-S30 Ultrasonic Two-PE Paper Bowl Forming Machine is an automatic machine with multi-working station, which has the function of photocell detection, failure alarm, counter and the advantages of humanism design, safer operation and easier maintenance.
It makes both one-side-PE-film-coated and two-side PE-film-coated paper bowls after running a whole procedure of automatic pre-printed-fan-shape-paper feeding, two-step pre-heating, bowl-side-body sealing(ultrasonic wave), silicone-oil lubricating(for top curling), bottom punching, two-step bottom heating, bottom pre-folding, bottom knurling, top curling and bowl discharging.
It is an ideal equipment of making soup paper bowls,noodle bowls, bigger paper cups and other large food cone-shaping containers etc.
3.Technical Specification :
HS. Code: 8441309000
- Paper bowl Size : 20--50oz, height up to 125 mm (mold exchangeable);
- Raw Material : One-side or two-side PE(polyethylene) film coated/laminated paper;
- Suitable paper weight : 140gsm--450 gsm (Recommend 190--300 gsm);
- Rated Productivity : 35--40 pcs / minute;
- Total Power : 9 KW;
- Power Source : 220V/380V 50Hz or other required;
- Total Weight : 1800 Kg;
- Package Size (L x W x H) : 2830 x 1450 x 1900 mm;
- Electric Control Box Size : 750 x 570 x 1070 mm
- Working Air Source: Air pressure:0.6MPa, Air Out-put: 0.6m3/minute;
- Making Paper Bowls, An air compressor is demanded.
4.Samples:
5.Paper bowl machine Big Production Show:
6.Cutting Machine Matched for Paper bowl Machine:
7.Paper bowl Machine Moulds :
9.Cover machine matched ( paper cover machine and plastic
cover machine).Both machine we have produce ,please
contact with us if you want to know more about it .
9.Export Standard Wooden Box
10.Compare to other supplier , our advantages as follow :
a.We are have biggest production
b.80%of our paper bowl machines are for export , so our machine is following closely to quality.
C.We have more experience for others for the moulds production .
d.delivery time fast.
F.Faithful to all of our customers.
G.Price reasonable.
11.Certificate :
QC Team:
More than 20 persons to check the machine's quality,every machine need 1 week to make adjustment,ensure 100% qualitative product.
Contact:
We will reply you by Email or skype. Telephone within 24 hours,
you can call us anytime if you have any problem of our production.
Shipment:
We will keep tracking with the container until clients receive it.
40HQ,40GP,20FT(LCL,FCL)
Remeber we are RUIAN BEST MACHINERY CO.,LTD , We are strive to achieve quality best , service best ! You are welcome to purchase our equipment!
