Specifications
R8 Collet : (Round , Square , Hex)1.made by steel 65Mn
2.power clamping ability, precise accuracy

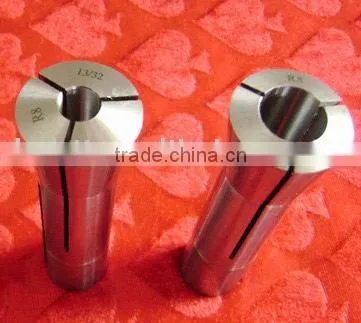

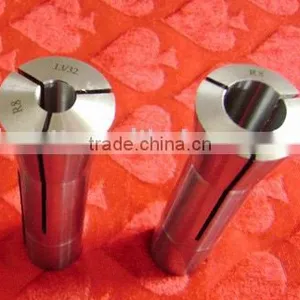

R8 collet
Detailed Product Description
Type |
Clamping range |
Wtkg) |
|
Round |
1mm-25mm |
1/16"-1" |
0.24 |
Emergency |
1.5mm |
1/16" |
0.24 |

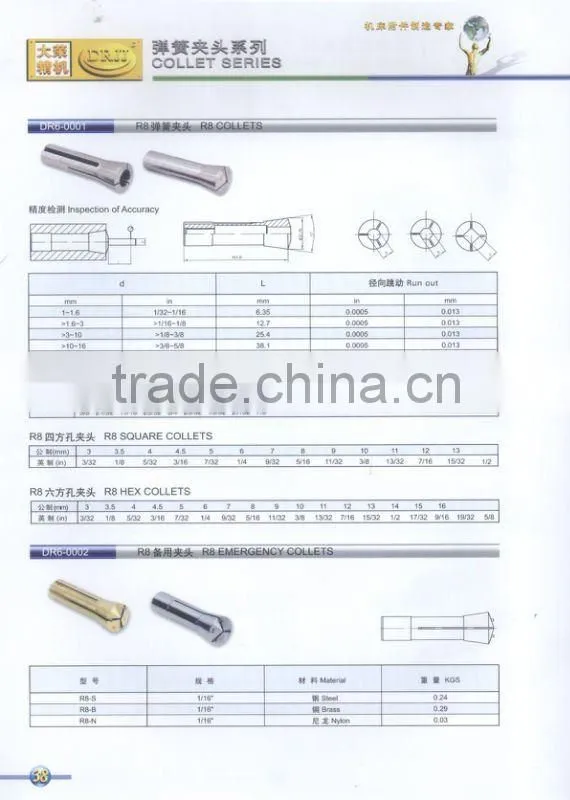

Inspection of Accuracy:
| d | L | Run out | ||
| mm | in | mm | in | mm |
| 1-1.6 | 1/32-1/16 | 6.35 | 0.005 | 0.013 |
| >1.6-3 | >1/16-1/8 | 12.7 | 0.005 | 0.013 |
| >3-10 | >1/8-3/8 | 25.4 | 0.005 | 0.013 |
| >10-16 | >3/8-5/8 | 38.1 | 0.005 | 0.013 |
| >16-20 | >5/8-7/8 | 50.8 | 0.005 | 0.013 |
| Type | Clamping Range | Wt(kg) | |
| mm | in | ||
| Round | 1-20 | 1/16-7/8 | 0.24 |
| Square | 3-13 | 1/8-1/2 | 0.24 |
| Hex | 3-16 | 1/8-5/8 | 0.24 |
Packaging:
Related Products:
R8 Square Collet, R8 Round Collet, R8 Emergency Collet, R8 Extending Collet, R8 Collet Draw Bar,
Company Profile:
We are a manufacturer established in 2003. Specialized in design, manufacture and marketing of machine tool accessories.
Production includes milling chuck series,CNC tool series,collet series,boring heads series,tapping chuck series,pull studs,er nuts,centers,mores taper sleeves,drill chucks,precision tool vises,parallel block series,V-block clamp,etc.
Sales covering the USA,Germany,Britain and regions in South Asia with increasing trust from customers.We are capable of supplying accessories with German standards,Japanese standards,American standards as well as national standards.
Should any of these items be of interest to you,please let us know.We'll be happy to give you details.
