Specifications
high quality wet mix shotcrete machine1,wet-mix spraying&pumping;
2.Output: 6.5~7m3/hour;
3.Max. horizontal conveying dist
high quality wet mix shotcrete machine

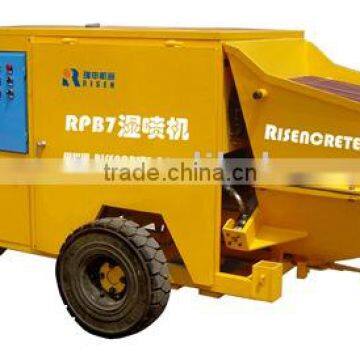

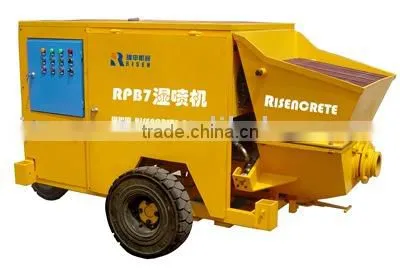

Risen RPB7 shotcrete pump is an excellent hydrualic piston concrete pump, used for the conveying and spraying wet-mix concrete.
Being a piston pump it provides much more versatility, in both mix types and potential conveying distances, than a rotor/stator pump of a similar capacity. Pumping of thick and stiff mixes also poses no problem, as the concrete is delivered up to 67 bar. It’s compact design enables easy integration into any kind of carrier chassis.
Technology description
| Output | 6.5~7 m3/h |
| Conveying distance | Horizontal:150m |
| Vertical: 50m | |
| Pressure | 5MPa |
| Suitable slump | 6~18cm |
| Hopper capacity | 170liters |
| Electric motor | 380V/50Hz, 18.5kW |
| Oil pressure of conveying system | 12MPa |
| Oil tank | 90liters |
| Oil cylinder ID | ID80mm |
| Work cylinder diameter | ID110mm |
| Work cylinder Stroke | 550mm |
| S shape swing tube | 110mm |
| Pipe and hose size | ID65/51mm |
| Max.grain size for spraying | 15mm |
| Max.grain size for pumping | 1/3pipe ID |
| Dosing pump | 17.5-88L/h0.6 MPa |
| Power | 380V/50Hz, 0.75kW |
| Weight | 1200kg |
Features
- Thick flow conveying method with hand-spraying make the concrete spraying is even, steady with less air consumption comparing to thin flow conveying method.
- RISEN RPB7 is a high efficiency machine with a longer conveying distance, horizontal 200m and vertical 70m.
- Simple CE standard electrical system controls provide fool-proof operation
- Soft-start protects electric system and motor.
- Two independent oil pressure circuits.
- Main oil is supplied by a high-pressure, variable-flow, axial piston pump. A gear pump provides separate circuit for the dosing pump.
- Setting of the desired dosing values by hand-wheel
- Double piston pump with S-tube and change-over cylinders for a positive action.
- Self-sealing, superhard sealing ring and plate.
- Automatically reversing pistons relieve the conveying system when blocked.
- Tough hopper with vibrator and grill designed for work with steel fibres.
- Centrally positioned lubrication point for easy service.
- Low weight is an advantage for transport.
Aplication
1. Typical applications include permanent and temporary rock support in tunnels and mines, or in fact wherever sprayed concrete is to be applied.
2. It can also for pumping, grouting, repair work, artificial soil seeding, mortar spraying, and refractory material spraying.
3. Being a piston pump it provides much more versatility, in both mix types and potential conveying distances, than a rotor/stator pump of a similar capacity. Pumping of thick and stiff mixes also poses no problem, as the concrete is delivered up to 67 bar.
