Champion Machine of Piston Mortar PumpSingle pistion single action mortar pump machine
Output 50L/min 800kg
Champion Machine of Piston Mortar Pump
Introduction:
RG50-40 Piston Mortar Pump of Piston Mortar Pump with single cylinder and double acting is widely used for its convenient maintenance, high working pressure and high efficiency, working reliability, compact structure etc. it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying. It is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc.
Feature:
- Single piston single acting
- Switch by ball valve
- Mechanical transmission, lower failure rate
- Integrate pump head and hopper; prevent eduction and deposition together with the paddle agitating
- Compact structure, convenient for maintaining
Technical data:
Item |
RG50-40 |
Cylinder Dia |
φ90 mm |
Output |
50 L/min |
Pressure |
4 Mpa(40bar, 580psi) |
Piston stroke |
85 mm |
Piston Speed |
95 /min |
Inlet diameter |
75 mm |
Outlet diameter |
50 mm |
Max.Aggregate.size |
5 mm |
Cement : Sand |
≥1:3 |
Dimensions |
1610×1024×900 mm |
Weight |
300 kg |
Power unit |
5.5 kW(Electric)/10hp(Diesel) |
Note: Single or Double Passageway.Skid or Tyre | |
Picture of RG50-40 Mortar Pump Machine:
Diesel driven:

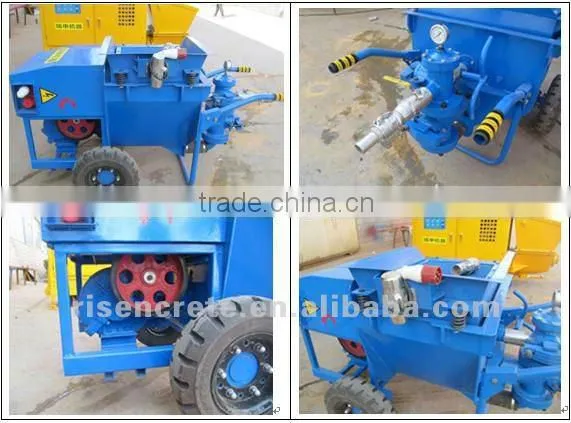

Detail Parts:
