Specifications
Mortar Conveyor Machine for ExportSingle pistion single action
Ball valve switch
Hot Sell Mortar Conveyor Machine
Durable
Mortar Conveyor Machine for Export
Introduction:
RG50-40 MORTAR Conveyor Machine with single cylinder and double acting is widely used for its convenient maintenance, high working pressure and high efficiency, working reliability, compact structure etc. it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying. It is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc.
Feature:
- Single piston single acting
- Switch by ball valve
- Mechanical transmission, lower failure rate
- Integrate pump head and hopper; prevent eduction and deposition together with the paddle agitating
- Compact structure, convenient for maintaining
Technical data:
Item |
RG50-40 |
Cylinder Dia |
φ90 mm |
Output |
50 L/min |
Pressure |
4 Mpa(40bar, 580psi) |
Piston stroke |
85 mm |
Piston Speed |
95 /min |
Inlet diameter |
75 mm |
Outlet diameter |
50 mm |
Max.Aggregate.size |
5 mm |
Cement : Sand |
≥1:3 |
Dimensions |
1610×1024×900 mm |
Weight |
300 kg |
Power unit |
5.5 kW(Electric)/10hp(Diesel) |
Note: Single or Double Passageway.Skid or Tyre | |

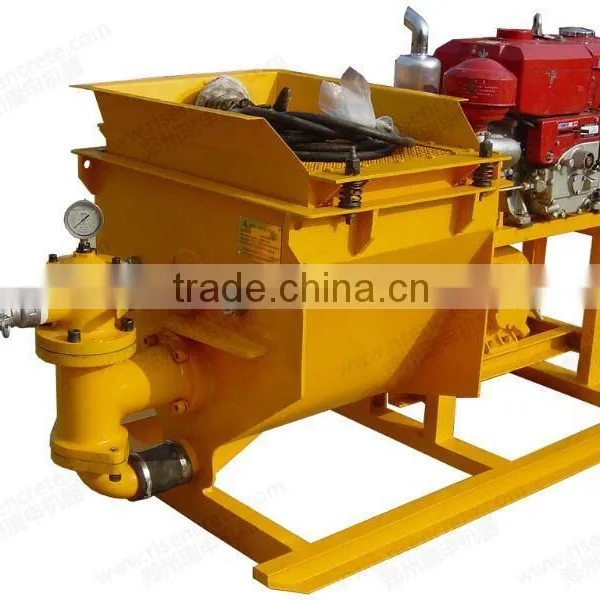

Pictures of Mortar Conveyor Machine:
