Help CenterRISEN PZ-3 Small-size Dry Guniting Machine
Related Products
-
High Quality Gunite MachineUS$ 18,000 - 28,000MOQ: 1 Set -
Wet&Dry Guniting MachineUS$ 8,000 - 9,000MOQ: 1 Set
-
Best Seller China Brand Gunite MachineUS$ 1,000 - 8,000MOQ: 1 Set
-
PZ-3 Gunite Equipment/Shotcrete Machine for PoolUS$ 2,000 - 9,000MOQ: 1 Set
-
High Efficiency Gunite Machine/Shotcrete MachineUS$ 1,000 - 8,000MOQ: 1 Set
Specifications
RISEN PZ-3 Small-size Dry Guniting MachineApplied for slope stabilizaion, civil engineer ect.
3m3/h;
CE certificate.

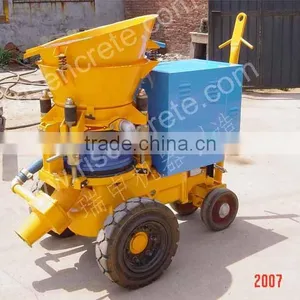

RISEN PZ-3 Small-size Dry Guniting Machine
The RISEN PZ-3 dry Guniting Machine can be used for dry mix and damp mix shotcrete. It is dependable, easy to maintain, robust, and is long lasting.
--------The basic version is electric motor, and optional version is air motor or diesel engine.
Technical Data:
Output Capacity: |
3 cubic meter/hour |
Maximum Conveying Distance: |
200 m (660 ft) |
Desired Shotcrete Ingredient Ratio: |
Cement/sand and gravel < 0.35 |
Maximum Aggregate Size: |
10 mm (2/5”) |
Inner Diameter of Conveying Hose: |
51 mm (2”) or 42mm (1 5/8”) |
Working Compressed Air Pressure: |
29 ~ 87 psi (0.2 ~ 0.6 MPa) |
Conveying Air Consumption: |
175 ~ 210 cfm (5 ~ 6 cubic meter / min) |
Ideal Rotor Speed: |
14 rpm |
Motor Power: |
4kW (5.4 hp) |
Dimensions: |
1130 x 450 x 1020 mm |
Net Weight: |
430 Kg |
Application:
- Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
- Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
- Refractory spraying and repair for industrial kilns or kilns’ inner liner.
Common use:
1. Gunite Swimming Pool Construction.
2. Soil Retention and Tetaining Walls.
3. Rockscaping.
4. Refractory Spraying.
5. Mine Support.
6. Tunnel Linings.
7. Concrete Repair.
8. Artificial Rocks and Caves.
9. Low-volume Refractory Spraying.
Features:
- Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
- Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
- Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
- Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
- Three drive models: by Electric motor, air motor or diesel engine.
- For the most specific risks of this machine, safety and compliance with the essential requirements of the Directive has been based on elements of EN ISO 12100-1:2003, EN ISO 12100-2:2003/A1:1995, EN 60204-1:2006 and EN 1050:1997.

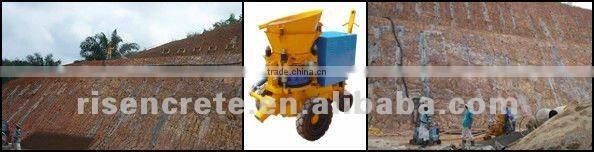

Working site Pictures:

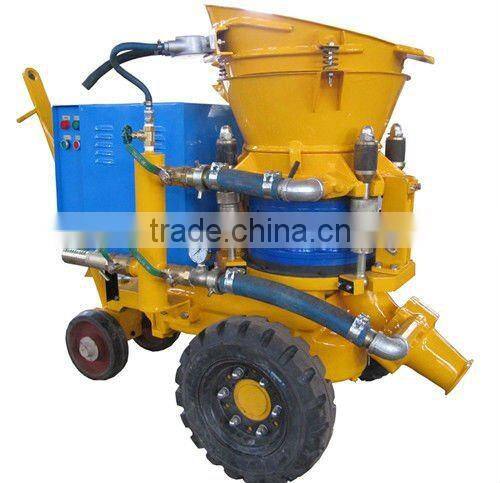

Dry Shotcrete Machines' picture:
Spare partes :

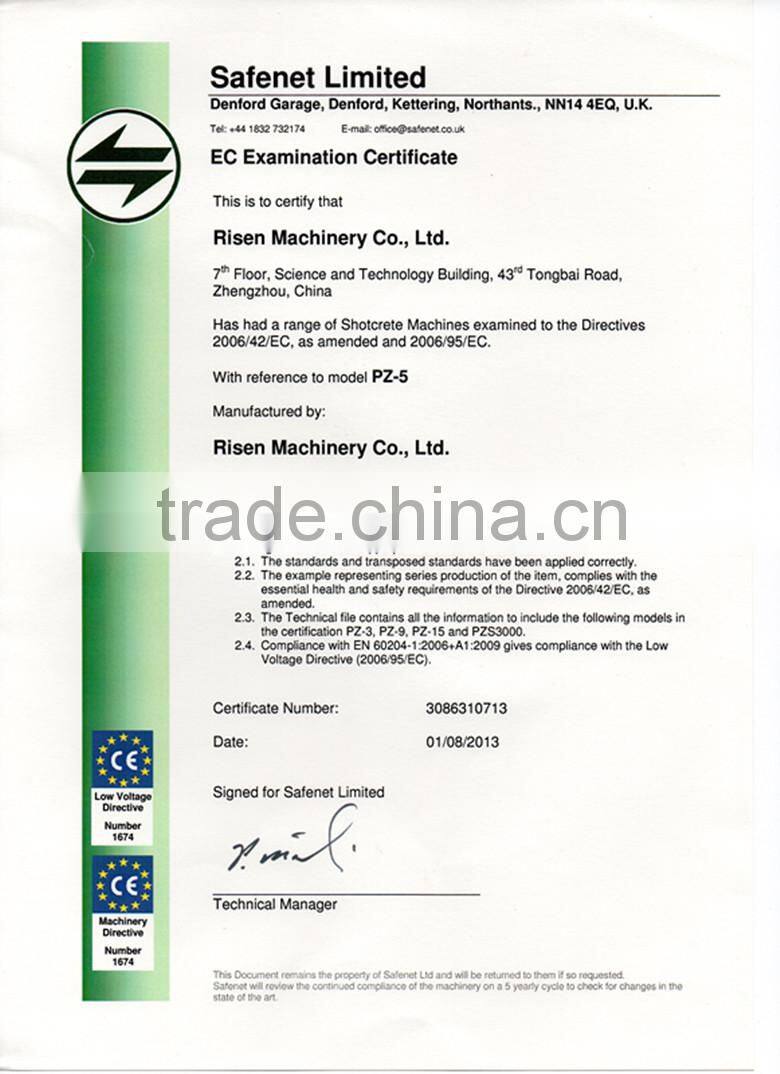

CE certification of Dry Shotcrete Machine:
Why choose Risen:
