Piston Grout Injection PumpSingle cylinder, double action
Realiable grout injection pump
Compact structure
Piston pump

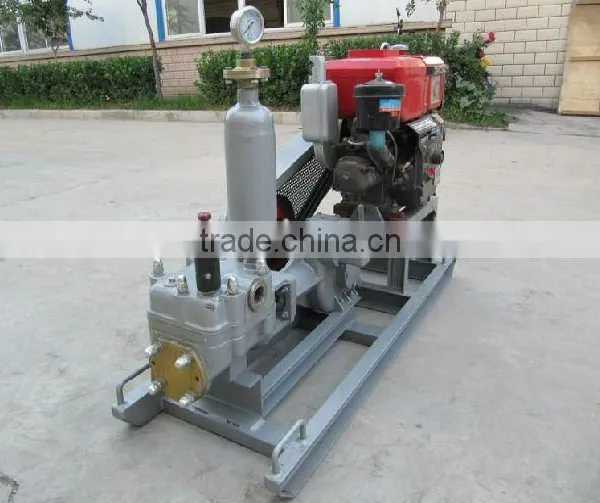

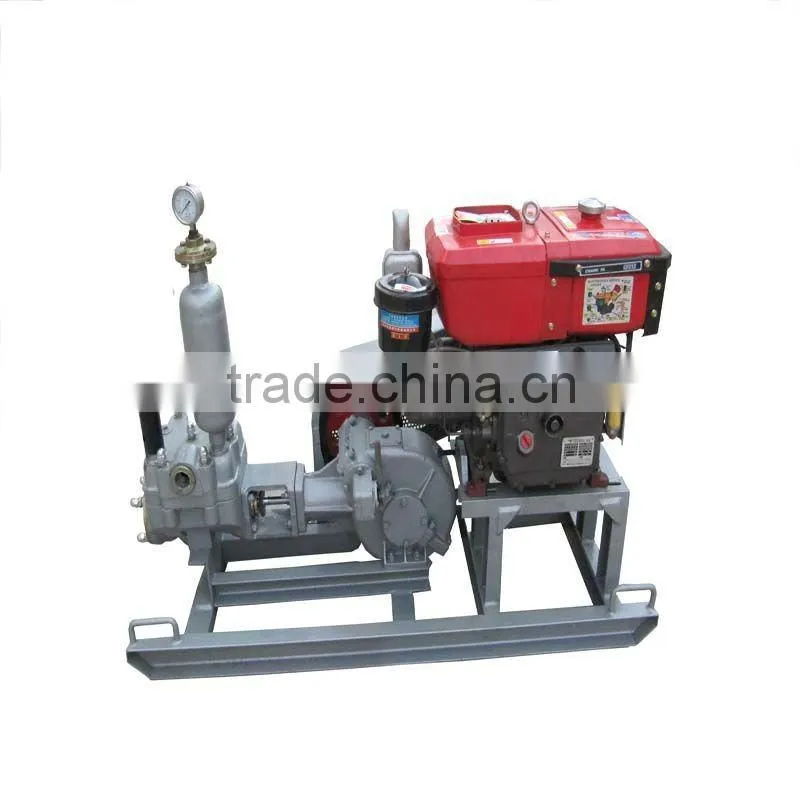

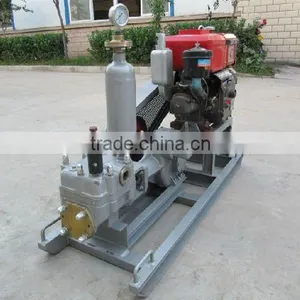

Risen RG Piston Grout Injection Pump
The RISEN RG130/20 Piston Grout Injection Pump is a single piston double-acting grouting pump with gear reducer, which is a universal medium-pressure grouting pump.
----The basic version is electric motor, and optional version is diesel engine.
Technical data:
Item |
RG130-20 |
RG60-40 |
Work elements |
single cylinder double action. spherical valve reversing |
single cylinder double action. spherical valve reversing |
Output |
130 L/min |
60 L/min |
Pressure |
2 Mpa(20bar/290psi) |
4 Mpa(40bar/580psi) |
Cylinder Dia |
φ75 mm |
φ75 mm |
Piston stroke |
85 mm |
85 mm |
Piston Speed |
180 /min |
85 /min |
Inlet diameter |
51 mm |
38 mm |
Outlet diameter |
38 mm |
32 mm |
Power unit |
5.5 kW(Electric) 10hp(Diesel) |
5.5 kW(Electric) 10hp(Diesel) |
Transmission |
V-belts +gear case |
V-belts +gear case |
Chassis |
Skid |
Skid |
Weight |
260 kg |
210 kg |
Dimensions |
1400×650×920 mm |
1280×485×645 mm |
Note:Single or Double Passageway.Skid or Tyre | ||
Application:
- Grouting single slurry in tunnels, slope, mines, bridge and all sorts of underground engineering etc.;
- Repairing engineering with grouting.
Features:
- Single piston double-acting
- Gear&vee belt transmission makes this pump high mechanical efficiency and working
- reliability
- Integrated valve house and ball valve, together with compact structure
Body of pump is made of aluminum casting,low weight is an advantage for transport
