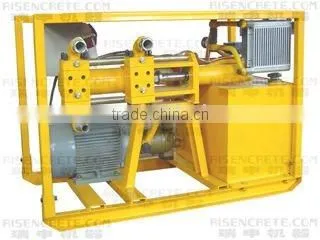

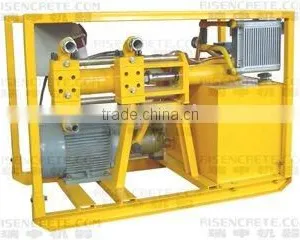

RISEN RG90 grouting pump

Specifications

RISEN RG90 grouting pump is the best choice for grouting in soil, earth foundation stabilization,waterproofing, tunnel etc.

RG7O &RG90 Piston Grouting Machine is a single piston double-acting grouting pump with hydraulic drive, which is a universal high-pressure grouting pump and is used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining,underwater foundations , bridge decks , deep well casing, slope line grouting,etc,



Features:

• Single piston double-acting
• Oil hydraulic drive
• Compact structure with reliable working
• Ball valve

Technology description





Type	Output L/min	Pressure MPa	Cylinder Dia mm	Power         kW	Weight kg	Overall dimension			Chassis
						L	W	H
						mm	mm	mm
RG-70	0-70	0.2-8	110	11,elec.motor	600	1490	1017	1083	Tyre
RG-90	0-90	0.2-10	110	15,elec.motor	380	1300	720
