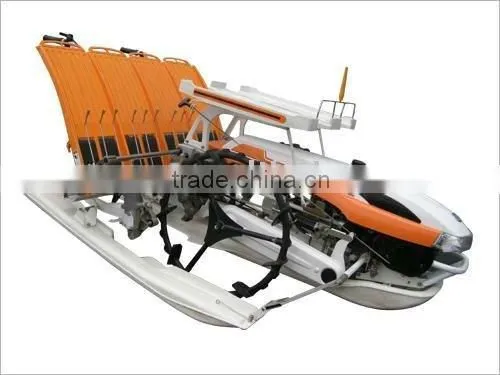

Walking Mobile Rice Transplanter

Name: Walking Mobile Rice Transplanter
Brand: Shuangwei
SKU: 124323531
Availability: InStock

US$ 2,280 - 2,860 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Walking Tpye Rice transplanter

Use:

Plant rice seedlings

Weifang Shuangwei Industry & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Walking Tpye Rice transplanter

Use Plant rice seedlings

Place of Origin Shandong, China

Brand Name Shuangwei

Model Number Model 2ZX-4300

Specifications

Walking Mobile Rice Transplanter
1.six steps:126~233mm seedling space adjustable
2.250~300mm Rows space
3.Planting 2-3.7Mu/H

Walking Mobile Transplanter Model 2ZX-4300

Main Specifications and Technical Parameters:

Main Specifications and Technical data of Model AP4300 Walking Mobile Rice Transplanter

Name		4 Rows Walking Mobile Rice Transplanter
Model		2ZX-4300
Overall Dimensions(LWH)(mm)		21801260950
weight(kg)		150
Transplanting organization form		Crank rocker type
Crank radius(mm)		35
Transplanting frequency(Time/min)		≤270
Engine	Model	YAMAHAMZ175(R)
	Type	Four-stroke single-cylinder Gasoline Engine
	Rated power (KW/HP)	4(5.5)/3.3(4.4)
	Rated running(rpm)	4000/3600
	Engine fuel	93# Gasoline
	Starting method	Anchor rope recoil type
	Oil tank(L)	3.5
Walking part	Wheel	Iron wheel
	The diameter of wheel(mm)	660
	Width of wheel(mm)	90
	transmission(Steps)	Forward(2 steps),Back(1step)
	Walking speed (m/s)	0.75-1.51
Planting part	planting speed (m/s)	0.36/0.73
	Line number (rows)	4
	Row pitch(mm)	250 or 300 (Optional)
	Planting distance(mm)	126/139/169/174/192/233(6steps can be adjusted)
	Planting depth(mm)	10-35 (6steps can be adjusted)
	thickness of taking seedlings(mm)	10-18(11 steps can be adjusted)
	Moving distance/planting times (mm/times)	3 steps:13.4(20)/12.1(22)/11.1(24)
Seedlings condition	height(mm)	100-200
	leaf age ( leaf No.s)	2.5-5
	thickness of soil(mm)	15-25
Spare seedling boxes quantity (plate No.s)		2
Planting speed(m/s)		0.36-0.73
Working productivity(Mu/hour)		2-2.7
