Wet&Dry Power Shotcrete Machine

Specifications

Wet&Dry Power Shotcrete Machine
Output:5m3/hour;
Dosing pump output:17.5~88L/hour;
Air consumption:9~10m3/min (320~350cfm).

Wet&Dry Power Shotcrete Machine

The RISEN PZS3000 Dry Power Shotcrete machine has the  dvanced concrete spraying technique, developed from our PZ series dry-mix shotcrete and incorporated the advantages of wet-mix shotcrete.  Today, it is a universal concrete spraying machine for the processing of wet or dry mix.

Technical Data:

Output:	5 m3/hour
Max. aggregate size:	15mm
Inner Diameter of Conveying Hose:	50mm (2”)
Air consumption:	9~10m3 /min
Power:	Electric Motor 7.5kW (10hp)
Max. conveying Dist.:	35m
Work pressure:	0.2~0.6MPa (29psi~87psi)
Dosing Pump Rated Pressure:	0.6MPa (87psi)
Dosing Pump Output:	17.5~88L/hour
Net Weight:	1200kgs
Measurement:	2050x950x1180mm



Application:

• Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
• Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
• Refractory spraying and repair for industrial kilns or kilns’ inner liner.

Common use:

1. Gunite Swimming Pool Construction.

2. Soil Retention and Tetaining Walls.

3. Rockscaping.

4. Refractory Spraying.

5. Mine Support.

6. Tunnel Linings.

7. Concrete Repair.

8. Artificial Rocks and Caves.

9. Low-volume Refractory Spraying.

 Features:

• Going-through rotor and forced vibrating hopper make mixture smoothly falling.
• Hose dosing pump unit provides constant dosing.
• Thin flow conveying method, used for wet-mix and dry-mix shotcrete.
• Reinforced shotcrete with steel or various polyment fibre. For the most specific risks of this machine, safety and compliance with the essential requirements of the Directive has been based on elements of EN ISO 12100-1:2003, EN ISO 12100-2:2003/A1:1995, EN 60204-1:2006 and EN 1050:1997

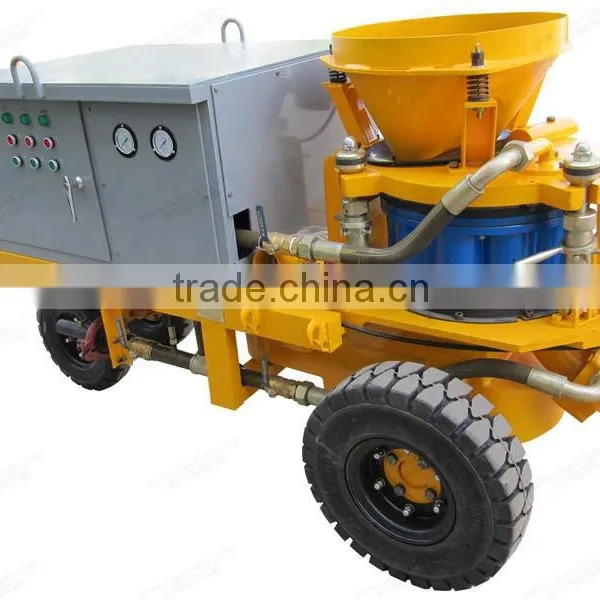

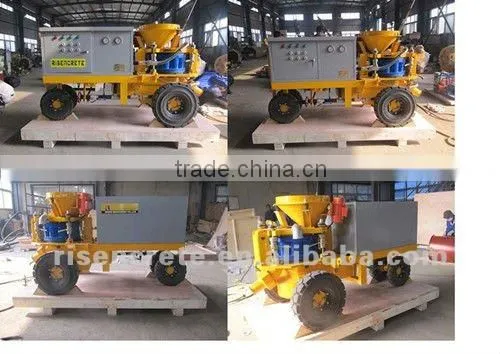

Picture of PZS3000 Dry Power Shotcrete Machine:
