NPK Hydraulic Breaker for Demolition Project

NPK Hydraulic Breaker for Demolition Project thumbnail-1
NPK Hydraulic Breaker for Demolition Project thumbnail-2
NPK Hydraulic Breaker for Demolition Project photo-1
NPK Hydraulic Breaker for Demolition Project photo-2
US$ 2,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
SANHA
Model Number:
SANHA
Contact Supplier Request Quote Chat Now
Shanghai Doocang Engineering Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port for NPK hydraulic breaker for demolition project
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name SANHA
Model Number SANHA

NPK Hydraulic Breaker For Demolition Project





Product Description



Specification:

NPK hydraulic breaker for demolition project

1.Applicable equipment:excavator,skid steer,backhoe

2.Excellent durability with superior quality alloy steel

3.Higher power with less weight

4.Less manitenance cost and downtime

5.Lower noise with full box bracker

6. Auto greasing system(option)

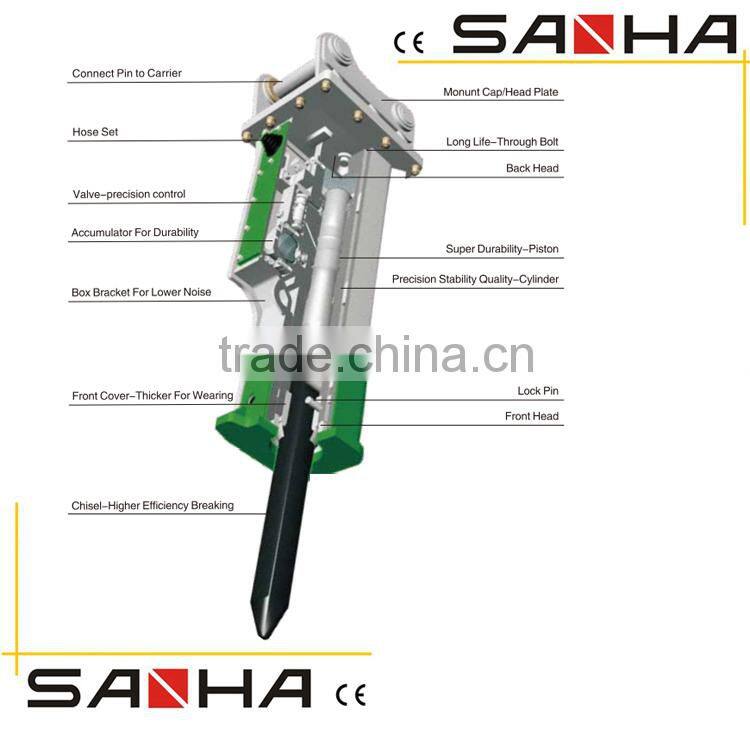

Hydraulic Breaker Main Structure:













Product Parameter



Hydraulic  breaker  parameter:





Model/Description Unit S53S S68S S75S S85S S100S S135S

Tool Diameter		 mm 53 68 75 85 100 135
inch 2.1 2.7 3.0 3.4 4.0 5.4
Weight of Main Body kg 86 164 203 282 472 772
lbs 189 362 448 622 1041 1702
Operating weight kg 159 308 392 597 902 1723
lbs 350 678 863 1317 1988 3799
Impact Rate bmp 600-1100 500-950 450-800 400-800 350-700 350-500
Operating Pressure psi 1280-1700 1350-1900 1710-2030 1850-2140 2130-2420 2320-2610
bar 90-120 100-130 120-140 130-150 150-170 160-190
Required Oil Flow l/min 26-41 30-45 40-80 45-85 80-110 125-150
gal/min 7-11 8-12 10-20 12-22 21-29 33-40
Hose Diameter inch 1/2 1/2 1/2 3/4 3/4 1
Applicable Carrier ton 3-4.5 4-7 5-9 6-11 10-15 16-22





Model/Description Unit S140S S150S S155S S165S S175S S180S

Tool Diameter		 mm 140 150 155 165 175 180
inch 5.6 6.0 6.2 6.6 7.0 7.2
Weight of Main Body kg 837 967 1157 1246 1536 1685
lbs 1845 2132 2551 2747 3380 3715
Operating weight kg 1851 2265 2760 2972 3809 3910
lbs 4081 4993 6086 6551 8379.8 8620
Impact Rate bmp 350-500 300-450 300-450 250-400 200-350 250-350
Operating Pressure psi 2280-2560 2320-2610 2280-2560 2280-2560 2320-2610 2320-2610
bar 160-180 160-190 160-180 160-180 160-180 160-190
Required Oil Flow l/min 125-150 160-180 170-230 180-240 210-290 200-260
gal/min 33-40 43-51 43-57 45-60 50-65 50-65
Hose Diameter inch 1 1 11/4 44/4 11/4 11/4
Applicable Carrier ton 16-25 25-35 25-35 30-45 40-55 40-55







Applicable Brands



Hydraulic  breaker  Applicable brands:



DOOSAN DH55 DH60 S70W S80W DH80W DH130 DH150 DH210 DH220 DH225 DH258 DH300 DH360 DH370 DH420 DH500
HYUNDAI RB55 RB60 RB80 RB110 RB130 R200 R210 R215 R225 R245 R260 R290 R305 R335 R360 R375 R505 R4700LC

KOMATSU

 PC45 PC56 PC50 PC60 PC90 PC100 PC120 PC200 PC210 PC220 PC250 PC300 PC400 PC450 PC500
HITACHI ZX55 ZX60 ZX70 ZX90 ZX100 ZX120 ZX130 ZX150 ZX200 ZX210 ZX220 ZX230 ZX240 ZX250 ZX270 ZX280 ZX300 ZX330 ZX350 ZX360 ZX400 ZX450
CAT 311 312 315 320 320DL 324 325 330 329D 235 336D 385 245 345 350 349
VOLVO EC55 EC120 EC140 EC180 EC210 EC240 EC290 EC280 EC360 EC340 EC460 EC420 EC450
KOBELCO SK55 SK60 SK70 SK100 SK115 SK200 SK210 SK220 SK230 SK250 SK270 SK300 SK320 SK350 SK400 SK450
KATO HD250 HD399 HD400 HB450 HD500 HD700 HD800 HD820 HD880 HD1023 HD1100 HD1200 HD1250 HD1430 HD1500 HD1880 HD2500
SUMITOMO S40 S70W S120 S135 SH200 SH210 SH240 S280 SH300 SH330 SH340 SH400 SH450
ATLAS 2006 2306 2606 3306
LIEBHEER A309 A311 A312 A314 A316 R313 R317 A914 R900 A924 R914B R916 R924 R324B R926 R934B R944C R952 R954 R961 R357C R954LIT R952
CASE CX45 CX75 CX130 CX210 CX240 SC150L RC200 160CK/CL 170CK-B CX360 300CK CX460 CX1288FG 170C 2200B 9060 300CK
XIAGONG XG804 XG806 XG765 XG808 XG815 XG820 XG821 XG822 XG823 XG825LC XG833 XG836LC
LIUGONG CLG906 CLG907 CLG908 CLG766 CLG915 CLG200 CLG205 CLG220 CLG225 CLG920 CLG922 CLG230 CLG923 CLG925 CLG300
XUGONG XCG60 XCG88 EC80 XCG140 XCG220 XCG210 XCG220 XCG230 XCG240 XCG330 XCG420
SANYI SY60 SY55C-9 SY65C-9 SY75C-9 SY130 SY200 SY210 SY220 SY230 SY285C-8 SY310 SY420 SY425 SY465
JOVE JV70-7 JV85-7 JY400
JONYANG JYL80 JYL135 W4-60 JY161 JY200 JY210 JY230 JY300 JY320
LONKING LG6065 LG6060 LG8350 LG6090 LG6085 LG6150 LG6225 LG6235 LG3636 LG6360
YUCHAI YC35-8 YC50-8 YC55-8 YC60-8 YC70-8 YC85-8 YC135-8 YC160-8 YC210LC-8 YC230LC-8 YC240LC-8 YC330LC-8 YC360LC-8 YC420LC-8 YC460LC-8
SUNWARD SWE28 SWE38 SWE60 SWE70 SWE78 SWE85 SWE110 SWE130 SWE210 SWE230LC SWE330LC SWE360LC
LINGONG LG660 LG665 LG685 LG6210 LG6220 LG6250 LG6300





If your euqipment isn't in above chart,we also can recommend according to the information you provide.





Accessories

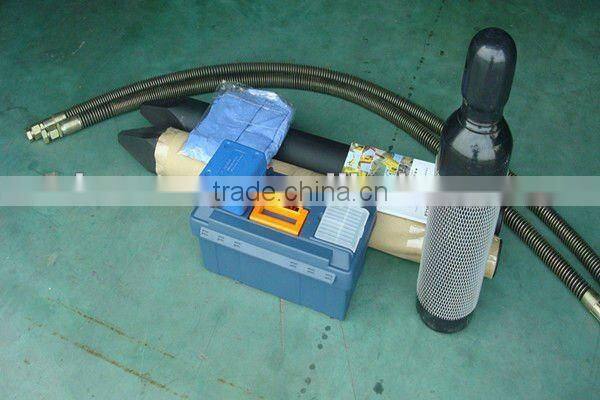

 Hydraulic  breaker standard free accessories:



1.Chisel  × 2 pcs

2.Hydraulic hose x 2 pcs

3.General tool with tool box x 1 set

4.Manual book in English x 1 pc

5.Nitrogen gas charging kit with hose & gas cylinder x 1 set

6.Working clothes x 1 pc













Packaging & Shipping



Packing details: wooden case or standard export package for NPK hydraulic breaker for demolition project

Shipping method:by air,by sea

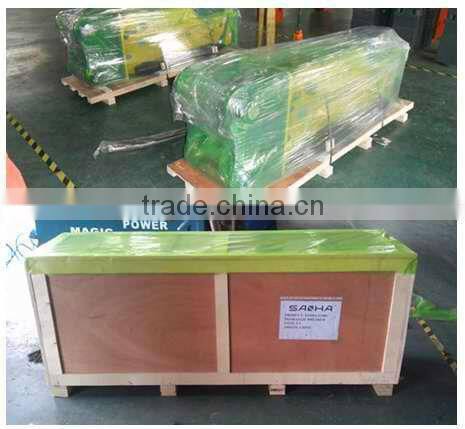

Hydraulic breaker packing detail:

















Our Services



Warranty Policy:

12 months:cylinder,back head,side head,piston,valve ass'y,accumulator

3 months:front cover,ring bush,through bolt ass'y,side bolt ass'y



Remarks:



1.This quality warranty will be valid after receiving customers' installation report from installant
or distributors.
2.All warranty parts would be replaced by CIF ocean basis. Other destination cost, including labor,
to be supported by distributors.
3.Recommended working hours for our breakers is 8 hours per day.
4.All replaced parts would be sent together with the next order for cost saving.
5.Some wearing parts are recommended together when customer buy our new breakers for future
maintenance cost saving.





Company Information



     Doocang heavy industries(shanghai) Co.Ltd is a professional  manufacturer of SANHA Hydraulic Breakers in China, our company supplies high-end products and the best matching products to our clients. With high quality and competitive prices, we hope to achieve win-win strategies with our cooperative partners from all over the world.

     Our company mainly manufactures and sells hydraulic breakers and spare parts for various hammers. Our company is an enterprise with a modern management mode, integrating import, sale, maintenance, service and information management.





Factory show:

NPK hydraulic breaker for demolition project













Exhibition show:











If have any interest or need,please feel free to contact me.Your inquiry will get our prompt attention and reply.
