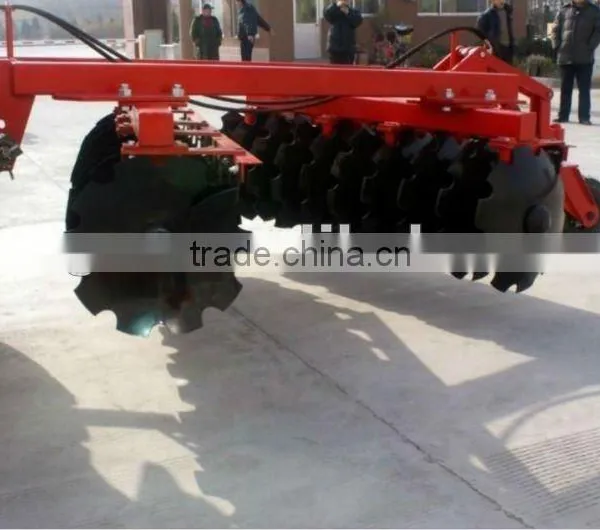

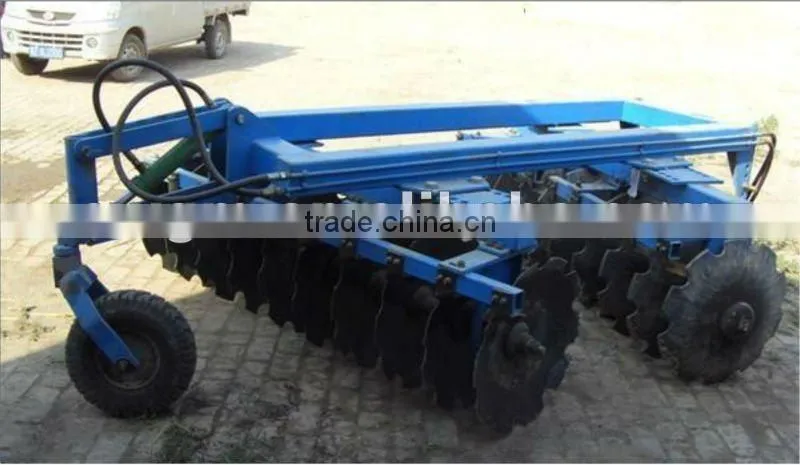

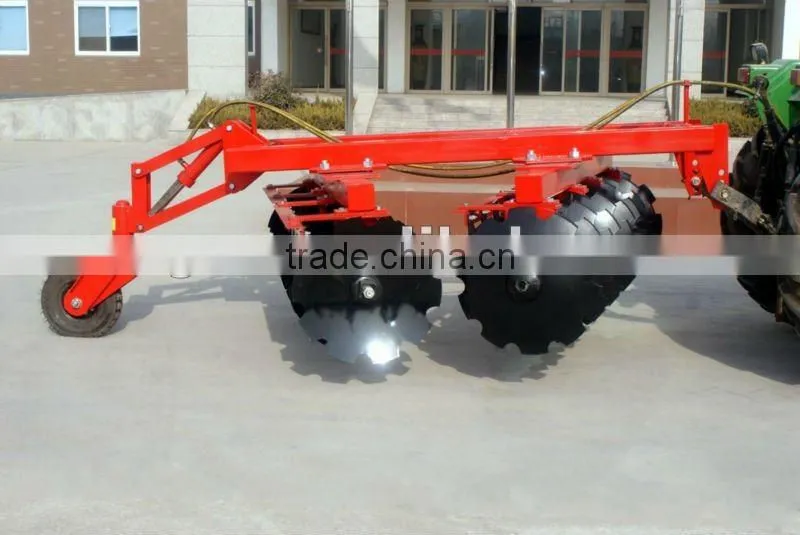

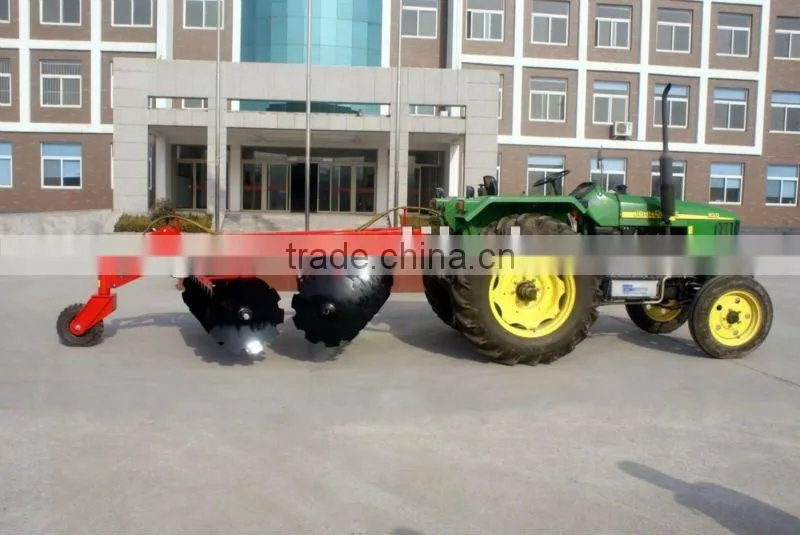

1BZ(BX)-2.0 Sem-imounted Hydraulic Heavy-duty Disc Harrow
Main Features and Performance:
1BZ(BX) semi-mounted offset heavy-duty harrow is suitable for stubbing before plowing and crushing soil after plowing in the waste land and heavy soil.The harrow can also replace a plow to carry out the first operation in the long-cultivated land.The depth of one time plowing in the uncultivated land can reach 180 mm.The harrow performs well in surface leveling,soil crushing and stubbing after plowing.The harrow has the advantages of easy hanging,convenient adjustment,flexible turning,good road passing performance,etc.
Main Specification and Technical parameter:
Name |
Heavy Duty Disc Harrow |
Model |
1BZ (BX)-2.0 |
Structure type |
Offset |
Dimension(LxWxH) |
3540*2315*1265 mm |
Total weight |
1100 kg |
Matched power |
70-80HP |
Working efficiency |
18-25 are/hour |
Max. working width |
2000 mm |
Max. working depth |
20 cm |
Disc number |
20 pcs |
Disc diameter |
600/610/650/660mm |
Connecting format |
Semi-mounted |
High quality Disc Harrow have ISO,CE,PVOC,COC certificates :
The Best Price will be quoted for you as soon as receive your Requirement !
