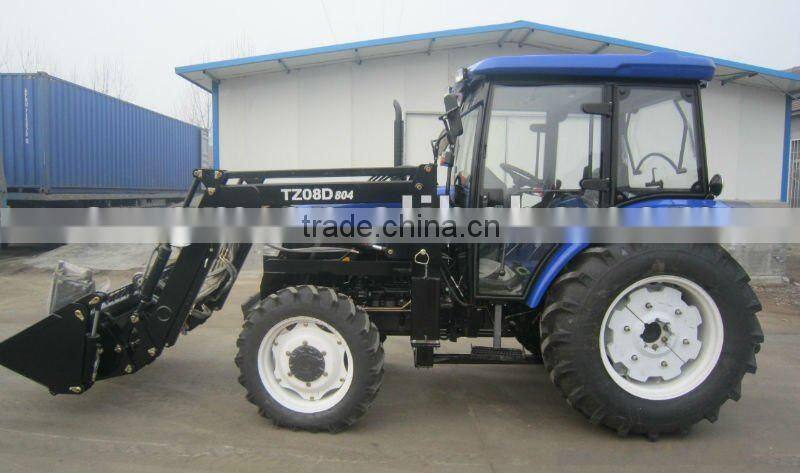

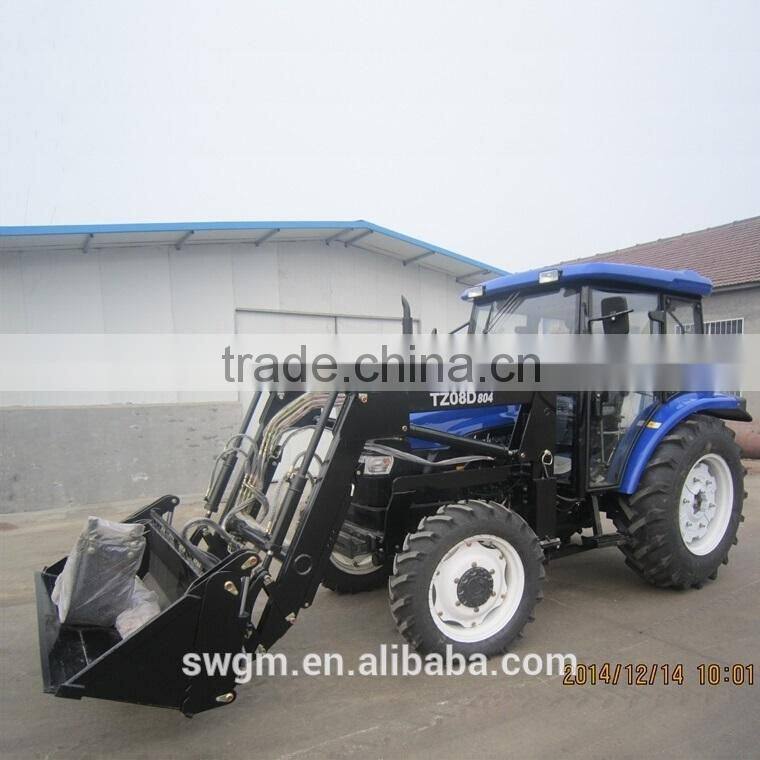

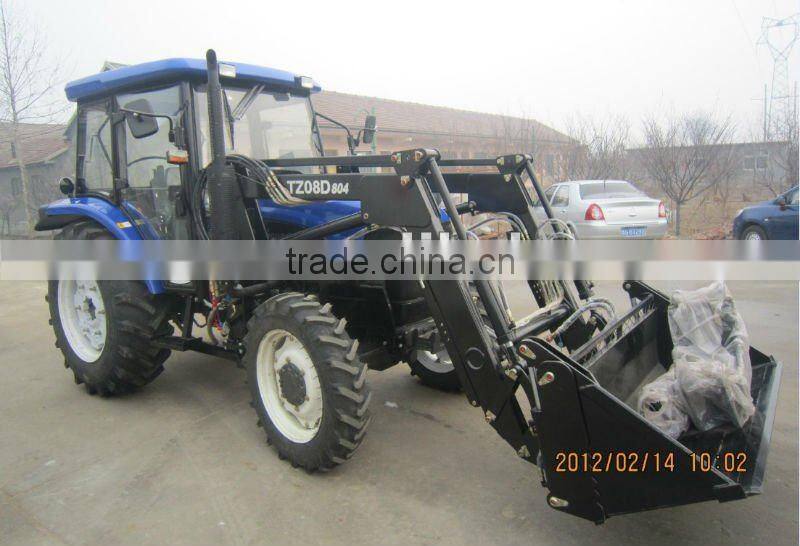

Australia hot selling TZ-8 60-80HP 4WD Farm Tractor Front end loader
CE certificate Wheel type Front end loader Model TZ-8 For 60-80HP 4WD Tractor
1. Main Performance and Features:
1).Used in Shoveling, stacking or short-distance transportation of loose material, like mud, sand, stone or garbage.
2).Featured with compact structure, flexibility, convenient operation and quick mounting and dismounting.
3).Hydraulic transmission is used,Featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It uses hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation and service.
4).Different work devices are optional, such as combined buckets(4 in 1 Bucket), grating cover bucket, pallet handler, timber grab and bale fork, etc, so as to accomplish different kinds of work successfully.
5).Five attaching type for Optional:There are Common model (Ordinary attaching type) and four quick attaching types.
6).Our company can manufacture full series Front end loader from Model TZ-3 to TZ-12 which match for 20HP~145HP tractor.
2.Main Specifications:
Front end loader Model |
TZ-3 |
TZ-4 |
TZ-5 |
TZ-6 |
TZ-8 |
TZ-10 |
TZ-12 |
|||
Matching tractor(hp) |
20-30 |
30-40 |
40-55 |
50-60 |
60-80 |
80-110 |
120-145 |
|||
Overall dimensions(m) |
4.10*1.60*1.58 |
4.90*1.74*2.50 |
5.10*1.74*2.70 |
5.35×1.80×3.00 |
||||||
Rated lift capacity(kg) |
300 |
400 |
500 |
600 |
800 |
1000 |
1200 |
|||
Max.dump height(mm) |
1800 |
2000 |
2100 |
2200 |
2350 |
2550 |
2800 |
|||
Max.dump distance(mm) |
900 |
900 |
950 |
950 |
960 |
1000 |
1100 |
|||
Digging depth(mm) |
100 |
120 |
140 |
140 |
180 |
180 |
200 |
|||
Bucket width(m) |
1.4 |
1.5 |
1.6 |
1.6 |
1.7 |
1.8-2.0 |
2.0-2.2 |
|||
Bucket capacity(m3) |
0.18 |
0.3 |
0.35 |
0.4 |
0.48 |
0.6 |
1 |
|||
Bucket rollback angle(°) |
42 |
42 |
42 |
42 |
42 |
42 |
42 |
|||
Dump angle(°) |
47 |
47 |
46 |
46 |
42-46 |
42-46 |
42-46 |
|||
Lifting time to pivot pin(s) |
7 |
7 |
7 |
8 |
8 |
8 |
10 |
|||
Descending time(s) |
3.5 |
3.5 |
3.5 |
3.5 |
4 |
4 |
10 |
|||
Weight(kg) |
470-650 |
500-680 |
530-720 |
660-800 |
680-830 |
800-980 |
960-1150 |
|||
Packing dimensions(m) |
2.10*1.10*1.10 |
2.20*1.16*1.10 |
2.20*1.24*1.15 |
2.25*1.35*1.30 |
||||||
Loading quantity(sets/40") |
20 |
20 |
18 |
18 |
16 |
12 |
12 |
|||

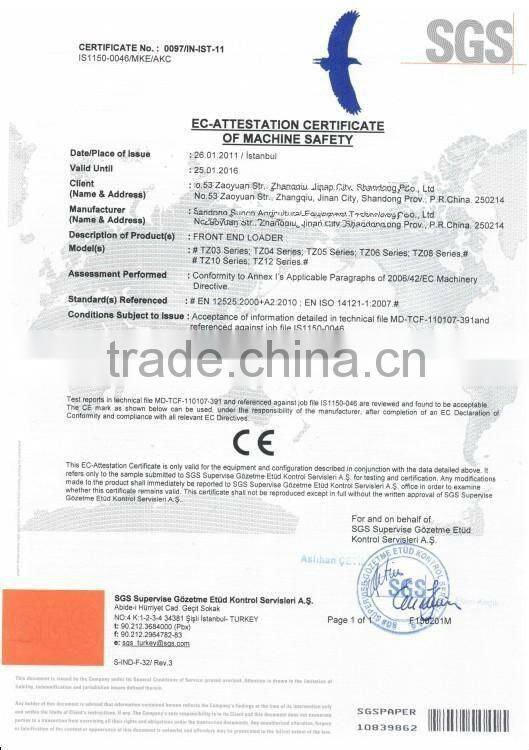

3.All our Front end loader have CE Certificate
