Boat Bottom Inspection Forward&Side View Camera System
Model HTO-360DDS Dual View Underwater Viewing Camera System is mainly used for underwater inspection and surveillance up to 600 meters depth, for example: Underwater Oil Well Inspection & Surveillance, Underwater Fishing Inspection, Underwater Culture etc.

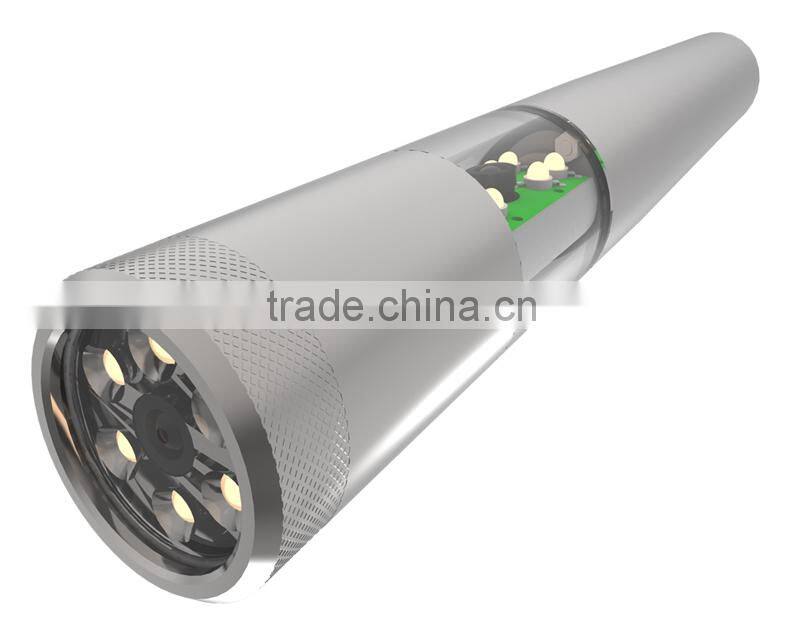

Model HTO-360DDS has a veritical fixed camera for down view and a horizontal 360 degree rotate camera for side view without dead angel. Based on both down view and side 360 degree view cameras with high quality stainless steel housing, user can easily real-time inspect & survey both under deep fresh water and salt waters' situation and record related video for later analysis.
- Fixed down view camera + 360 degree rotate side view camera for wider angle viewing
- Small size: 57(diameter) x 440(length)mm and light weight: 5.2KG for easy to take and operate
- High quality SONY 1/3'' CCD Camera Lens for better image
- Built-in LED Lights for both down and side cameras that can be used under dim or dark environment
- Excellent deep water working performance up to 600 meters
| Item | Value |
| Model No. | HTO-360DDS |
| Image Sensor | SONY 1/3'' CCD |
| Frame Rate | 25 FPS |
| Pixel | 1020 x 590 (610,000 pixels) |
| Video Format | AVI H.264 |
| Focus | 4.7-94mm |
| Aperture | F1.2 |
| Light Source |
Down View: LED lights 6pcs x 1W Side View: LED lights 8pcs x 1W |
| Sensitivity | 0.01 Lux |
| S/N Ratio | 50dB |
| Storage | 500GB as start |
| Camera Size | 57(diameter) x 440(length) mm |
| Monitor | 7 inch as start or 10 inch as option |
| Power Supply |
220V AC on land 15-36V DC underwater |
| Wire Type | Watertightness |
| Working Temperature | -10℃ ~ -50℃ |
| Winch Type | Auto |
| Working Depth | 0-600 meters |
Packing List:
- Down view & Side 360 view Camera x 1

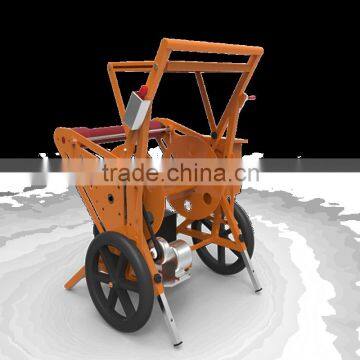

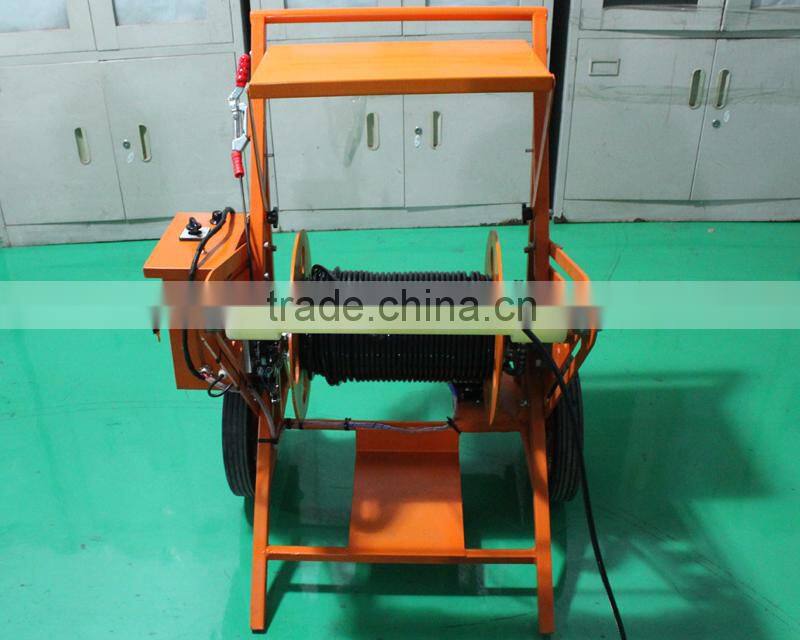

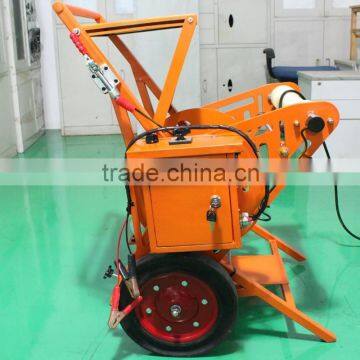

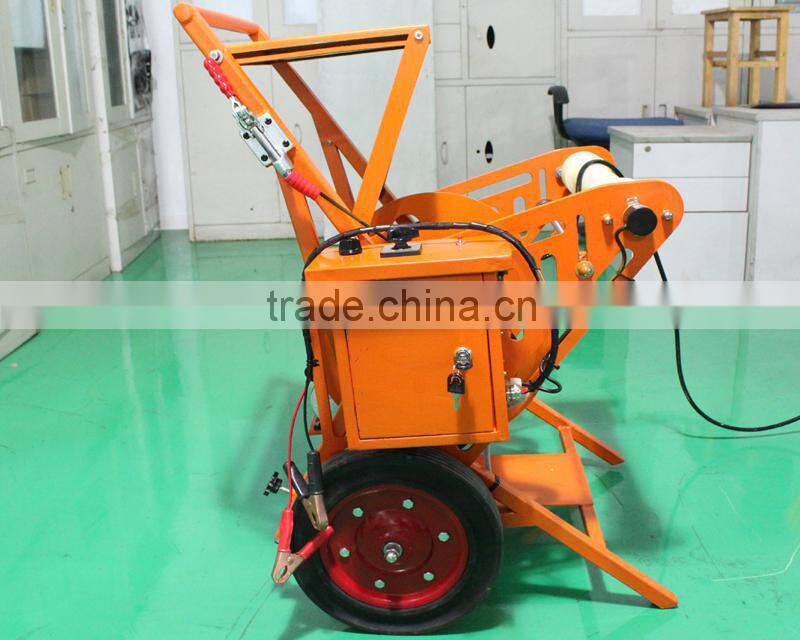

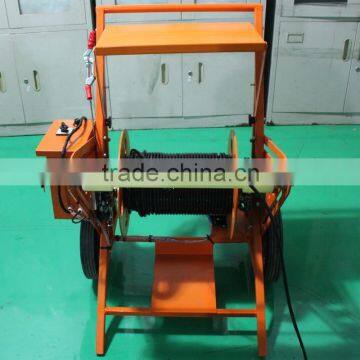

- Auto Winch x 1
- Control Box x 1
- User Manual x 1
Payment:
50% deposit in advance and 50% balance before shipping.
Packaging: Special Fumigte Wood Case Packaging
Shipping: 30 days after deposit confirmed and we provide:
Our Products:
CE & RoHS.
Our Factory:
We have obtained ISO 9001:2000 and ISO 14001:2004 certifications.
Haitian Ocean Technology is an main OEM provider for Underwater Downhole, Oil Well Logging, Borehole, Fishing Detection & Inspection Camera System products.
We offer full wide range for customers from different areas such as Oil Well Detction, Underwater Security, Underwater Caltivation, Underwater Fishing etc.
Our products including:
Military Grade Underwater Oil Well Logging series
Underwater Caltivation Series
Downhole Inspection Camera Systems Series
Borehole Inspection Camera System Series
Dual-view 360 degree Inspecton Camera System Series
We accept OEM or ODM project from professional cusctomers.
1. Is Haitian Ocean Technology the manufacturer or a trader?
A: Haitian Ocean Technology is the direct manufactorer and also the main OEM provider in the industry.
Our main partners are located at USA, EU, JP, AU etc.
2. What is the warranty?
A: All products from us enjoy 2 year warranty.
3. Can Haitian Ocean Technology accept samples or trials?
A: We welcome new customers to test our samples or start from trials.
Haitian Ocean Technology is seeking professional dealers for long term business.
