Well Imaging System
1. Well Imaging SystemBrief Introduction
The camera HTO-360DD is a portable dual-view, borehole camera system with automated control
for either downhole or side-view video profile. Side-view lens includes 360 degree rotation to the
right and left with no external moving parts. This camera has effective survey capabilities for 3-inch to
12-inch (7.62-cm to 30.5-cm) well diameters. The HTO-360DDS well camera system comes equipped
with a protective case provided for storage, lighting system, camera, control unit, cable, video monitor, centering bands, DVD recorder, power supply and transport cart for easy maneuvering.
2. Well Imaging System Application
2.1 Well downhole inspection
2.2 Oil rigs well or Water well inspection
2.3 Deep water salvage
2.4 Dam, reservoir surveillance
2.5 Landforms of river or lake video record
2.6 Real-time surveillance for important water area
2.7 Raising of a wreck and oil rigs surveillance
3. Well Imaging System Advantages
3.1 The camera has two lens: Forward lens and 360° side view lens for both downside and side inspection
3.2 With 6pcs x 1W LED lights of downside and 8pcs x 1W LED lights of side lens for dim or dark environment
3.3 Up to 1500m depth waterproof performance
4. Well Imaging System Specification
Model No. of Camera: HTO-360DD | |
Image Sensor | 1/3’’ SONY 960H Exview HAD CCD II |
Lens Visual Angel | 69.9 degree |
Pixel | 480,000 |
Focus | 4mm fixed |
Light Source | 4pcs LED x 1W for downside lens 6pcs LED x 1W for side lens |
Minimum Illumination | 0.01Lux |
Color | Color |
Rotation Angel | Side view angle: 360 degree |
Focus Mode | Fixed |
Cable Connection Socket | Waterproof Connection Structure |
Size & Weight | D57 x L440mm; 5.2KG |
Housing Material | 304 Stainless Steel |
Working Temperature | -10℃~50℃ |
Working Depth | ≤1000 meters |

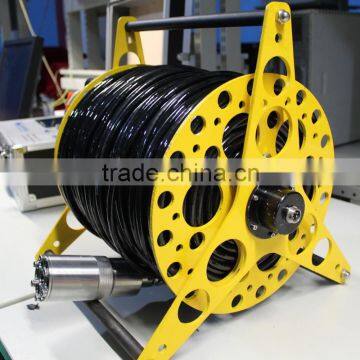

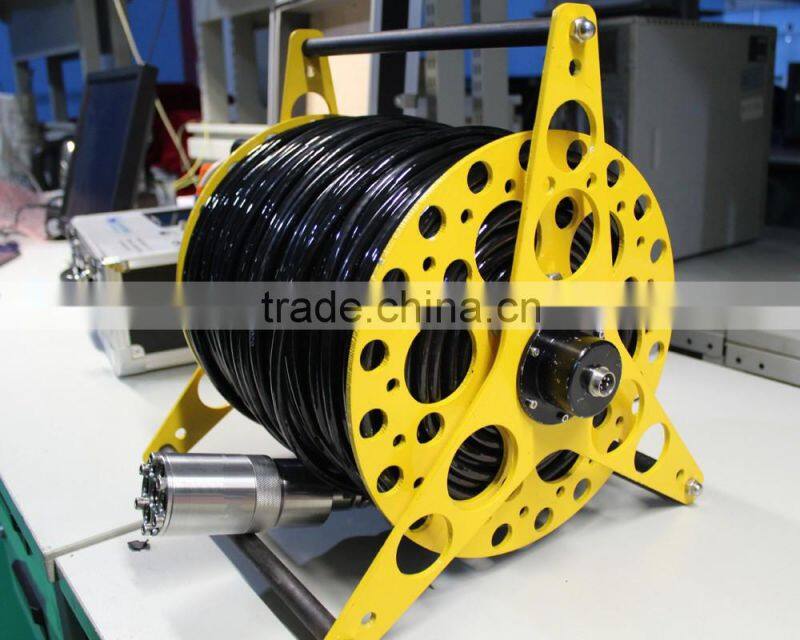

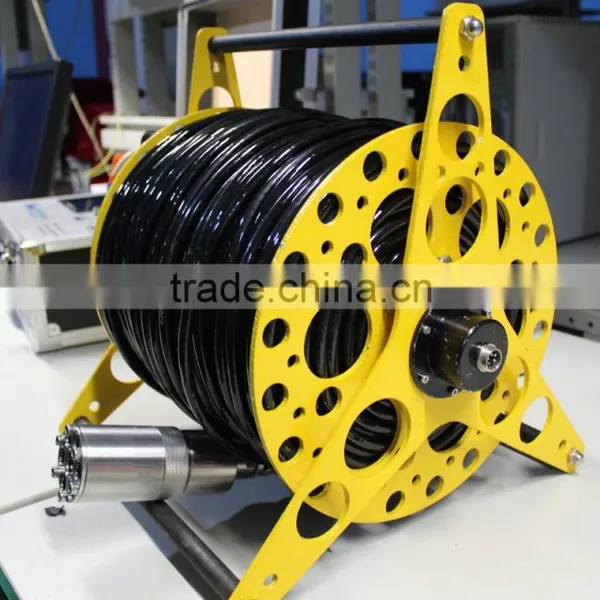

5. Well Imaging System Pic
1. OEM service is available
2. Prompt response for any inquiry
3. Short delivery time
4. Experienced export team
Payment: T/T; Western union;Paypal.
Package: Special Fumigate Wood Case Packaging
Trade terms: EXW;FOB;CIF;DAP
1. Profile
Xi'an Haitian marine science and Technology Co., Ltd is a subsidiary company belongs to the Haitian antenna Science & Technology Co Ltd. was founded in October 1999, in November 2003 5 days in Hong Kong Stock Exchange GEM Listing (Stock Code: 579).
2. R&D Strength
At present, our company has a innovative research and development team and a group of high speed self talent, R & D team has 21 person, all bachelor degree or above. 10 of them is doctor, 2 members of them is the Chinese Academy of Sciences, the Yangtze River scholars 1, R & D personnel accounted for 15% of the total number of employees; professional R & D personnel culvert cover structure design, mechanical and electrical engineering, communication engineering, computer applications and rich experience in project implementation.
3.Working Shop
4. Product Range
4.1 Underwater imaging equipment
4.2 Underwater lights
4.3 Waterproof connector
4.4 Oilfield detection system
4.5 Underwater sonar imaging system
1. Q:Are you a manufacturer or trading company ?
A: we are an experienced manufacturer in underwater equipment and oil instrument with strong R&D strength.
2. Q:Where is your workshop located? How can I visit there?
A: Our workshop is located in Xi`an City, Shaanxi province China, and you are warmly
welcome to visit us.
3.Q: What is the warranty?
A: All products from us enjoy 2 year warranty.
4. Q: Can Haitian Ocean Technology accept samples or trials?
A: We welcome new customers to test our samples or start from trials. Haitian Ocean Technology is seeking professional dealers for long term business.
Note: more product and samples infomartion, pls contact with us directly.
